REAR BRAKE
VL800B VOLUSIA 2014 (L4) USA (E03)

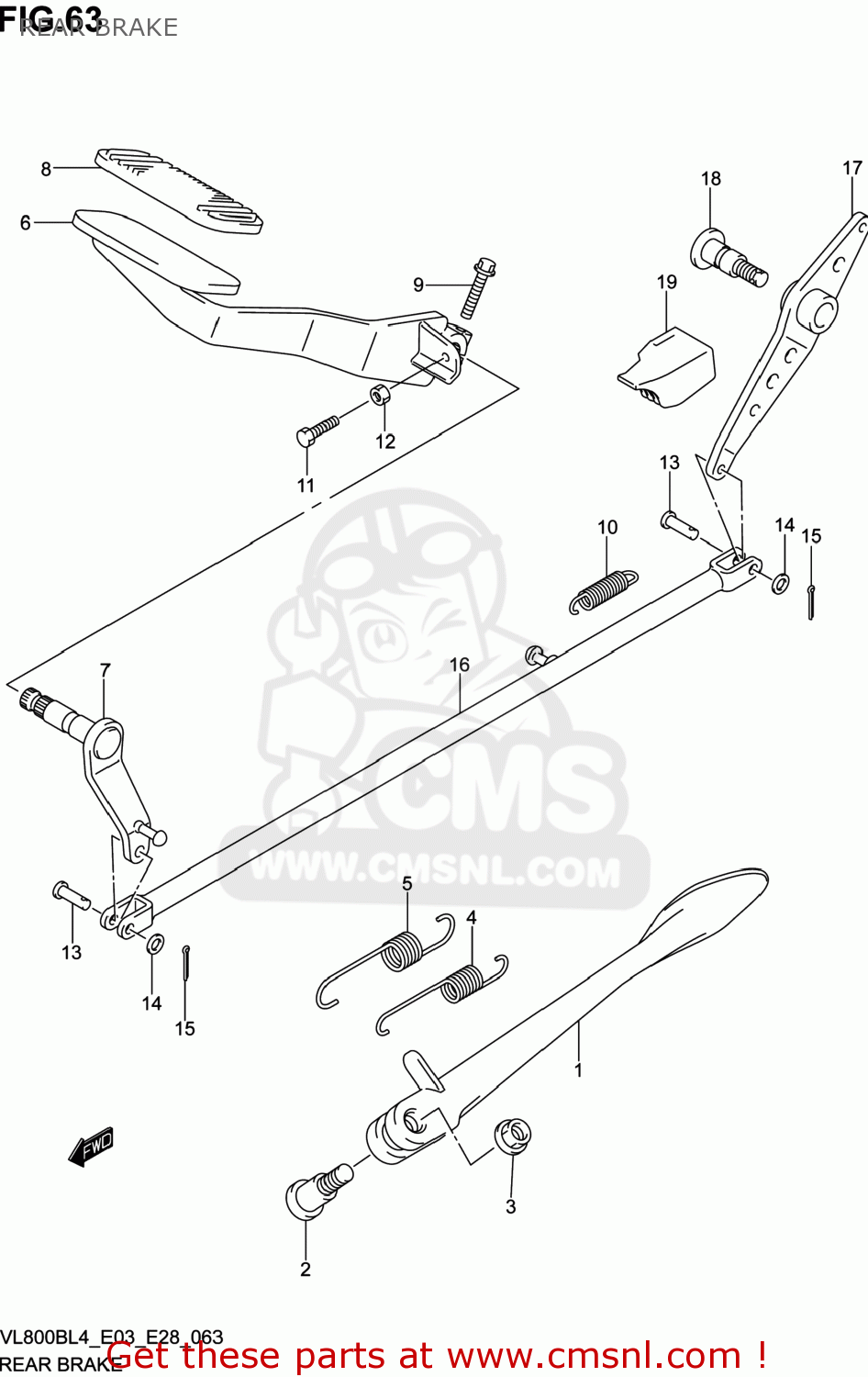

Rear brake diagram VL800B VOLUSIA 2014 (L4) USA (E03)
REAR BRAKE VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231041F10
ref: 1
STAND,PROP
€ 136.50
2
0911110058
ref: 2
BOLT(10X37.5)
€ 6.00
3
4232103FK0
ref: 3
NUT,PROP STAND
€ 4.50
4
0944314066
ref: 4
SPRING
€ 5.00
5
0944319012
ref: 5
SPRING
€ 5.50
6
4311041F11
ref: 6
PEDAL,BRAKE
€ 76.00
7
4312041F00
ref: 7
ARM,BRAKE ROD
€ 40.00
8
4315110F00
ref: 8
RUBBER,BRAKE PEDAL
€ 6.50
9
071200625A
ref: 9
BOLT
€ 2.50
10
0944312051
ref: 10
SPRING
€ 5.50
11
0150006207
ref: 11
BOLT
€ 2.00
12
0831000067
ref: 12
NUT
€ 2.50
13
0920006068
ref: 13
PIN(6X18.2)
€ 5.00
14
083220106B
ref: 14
WASHER
€ 2.00
15
041112015A
ref: 15
PIN
€ 1.50
16
4313041F00
ref: 16
ROD,RR BRAKE FR
€ 38.50
17
4314041F00
ref: 17
LINK,RR BRAKE
€ 37.50
18
4314227C00
ref: 18
SHAFT,BRAKE PEDAL
€ 15.00
19
4315141F00
ref: 19
RUBBER,BRAKE LINK
€ 9.00
