FRONT CALIPER
VL800B VOLUSIA 2014 (L4) USA (E03)

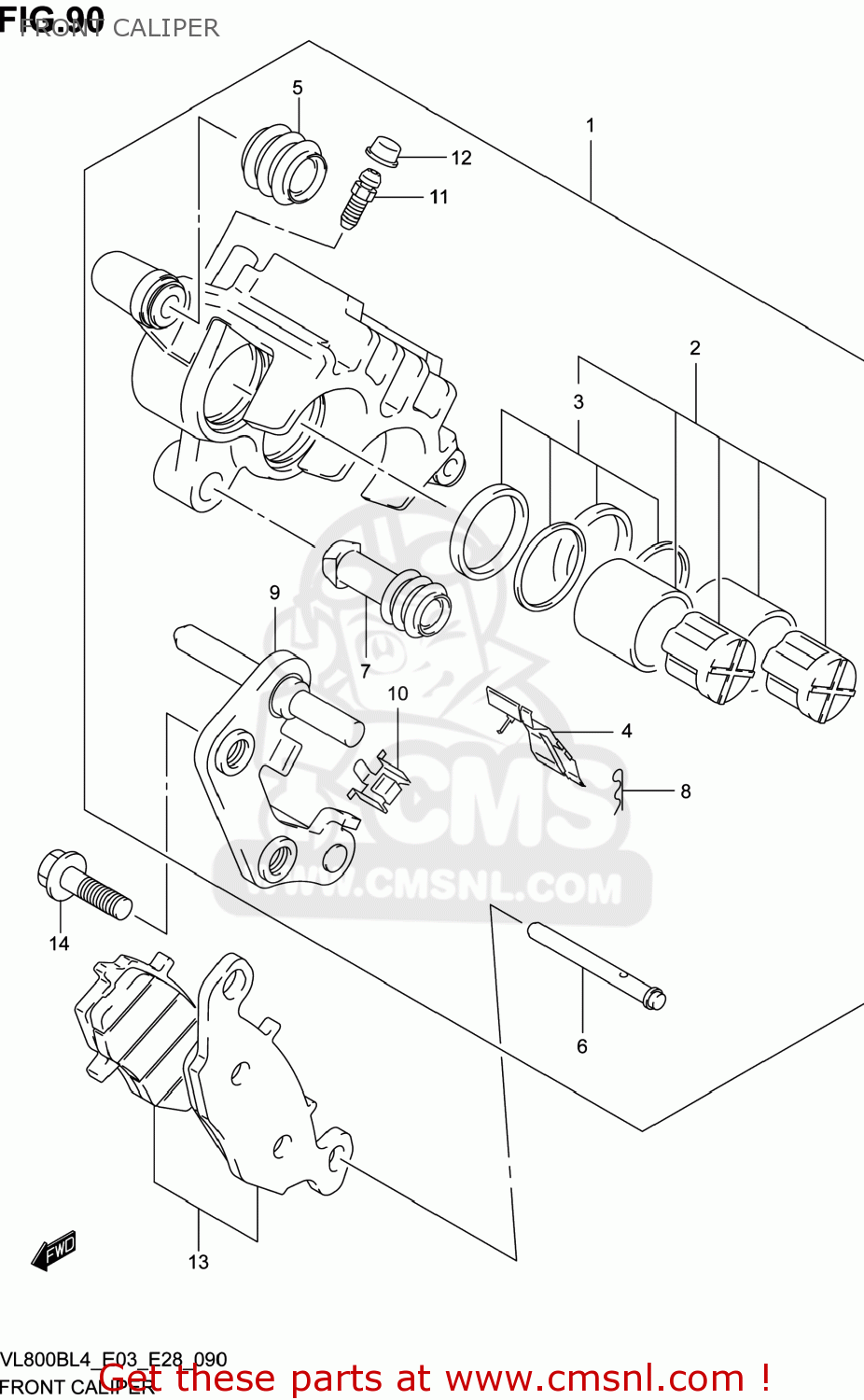

Front caliper diagram VL800B VOLUSIA 2014 (L4) USA (E03)
FRONT CALIPER VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5910033DN0999
ref: 1
CALIPER ASSY,FRONT,R
€ 473.00
2
5930120810
ref: 2
PISTON SET
€ 44.50
3
5930033841
ref: 3
SEAL SET,PISTON
€ 26.50
4
5911533D00
ref: 4
SPRING,PAD,R
€ 12.00
5
5911244B00
ref: 5
BOOT,AXLE
€ 8.00
6
5914144B01
ref: 6
PIN,PAD
€ 8.00
7
5931336500
ref: 7
INSULATOR,AXLE
€ 5.50
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
5915033D01
ref: 9
CARRIER,CALIPER,R
€ 70.00
10
5911633D00
ref: 10
GUIDE,PAD
€ 6.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
€ 6.00
13
5910233820
ref: 13
PAD SET (NAS)
€ 49.50
14
0910310379
ref: 14
BOLT(10X30)
€ 4.00
