Buy Suzuki VL Parts Online
home
STEERING STEM
VL800B VOLUSIA 2014 (L4) USA (E03)

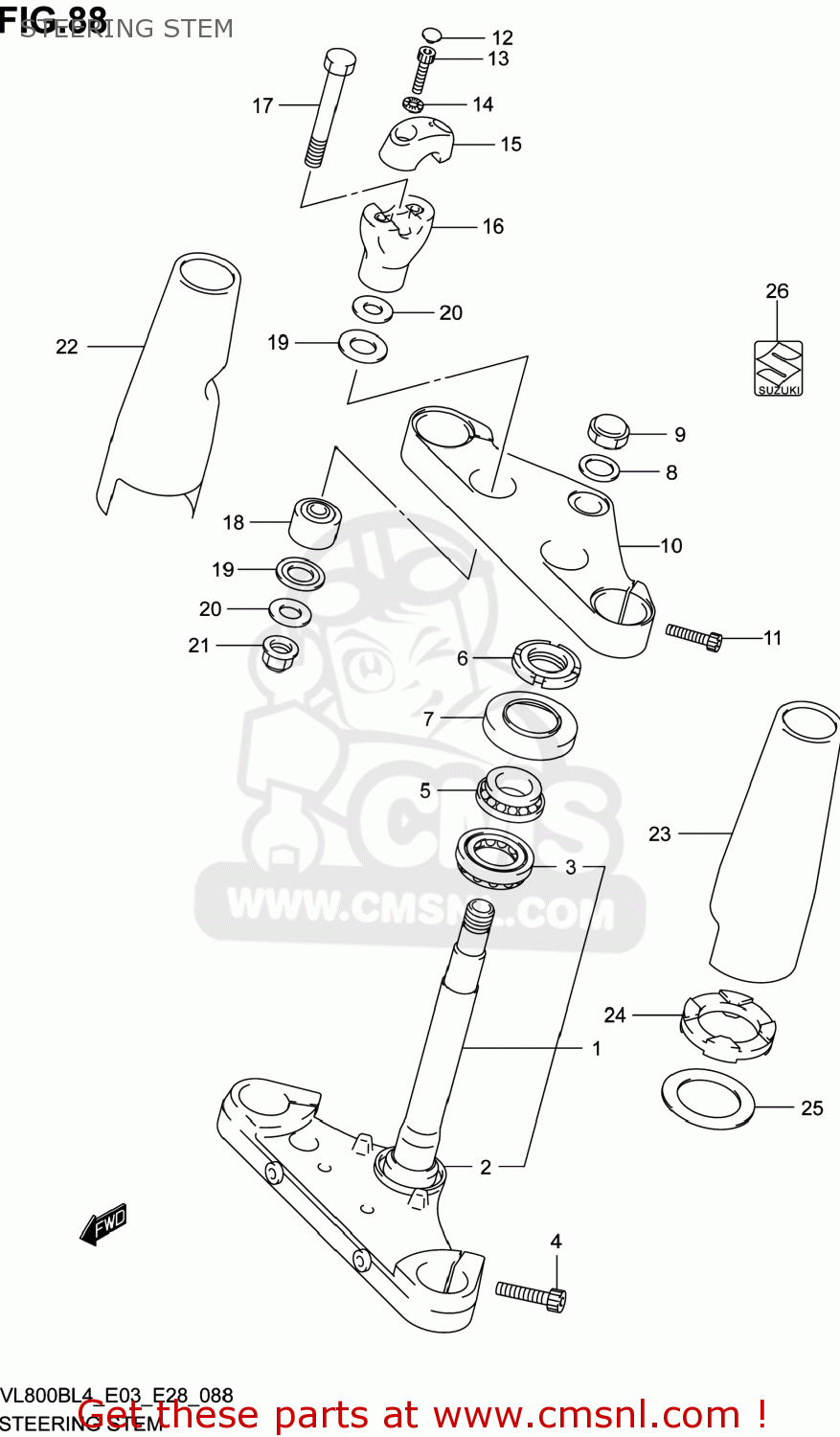

Steering stem diagram VL800B VOLUSIA 2014 (L4) USA (E03)
STEERING STEM VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141041F60
ref: 1
STEM,STEERING
€ 749.50
2
5164412C00
ref: 2
SEAL,STEERING LWR
€ 5.50
3
0926730010
ref: 3
BEARING(30X55X17)
€ 46.50
4
071301030B
ref: 4
BOLT
€ 3.50
5
0926725009
ref: 5
BEARING(25X47X15)
€ 40.00
6
5163128000
ref: 6
NUT,STEERING STEM(25X44X10)
€ 12.50
7
5164340502
ref: 7
DUST SEAL,STEERING UPR
€ 8.00
8
5135624B01
ref: 8
WASHER(22.5X32X1.6)
€ 3.00
9
5135338A01
ref: 9
51353-24B00
NUT,CAP
€ 21.50
10
5131141F70
ref: 10
HEAD,STEERING STEM
€ 477.50
11
5132106G00
ref: 11
BOLT
€ 5.00
12
0925006011
ref: 12
CAP(OD:11)
€ 2.50
13
5132110F00
ref: 13
07130-08307
BOLT,HANDLE HOLDER
€ 4.50
14
0916408015
ref: 14
WASHER
€ 3.00
15
5621106J20
ref: 15
HOLDER,HANDLE UPR
€ 29.50
16
5622141F70
ref: 16
HOLDER,HANDLE UNDER
€ 108.00
17
5122641F20
ref: 17
BOLT
€ 14.50
18
5624041F20
ref: 18
DAMPER,RUBBER
€ 27.00
19
5624541F20
ref: 19
SEAT,RUBBER
€ 3.50
20
5135441F20
ref: 20
WASHER
€ 6.00
21
5624641F20
ref: 21
NUT
€ 8.00
22
5153041F70
ref: 22
COVER,UPPER,R
€ 185.50
23
5154041F70
ref: 23
COVER,UPPER,L
€ 197.00
24
5146810F00
ref: 24
SEAT,RUBBER
€ 13.50
25
5146710F00
ref: 25
WASHER
€ 8.00
26
6828135F00
ref: 26
EMBLEM,S
€ 13.00
