FRONT WHEEL

VL800B VOLUSIA 2014 (L4) USA (E03)

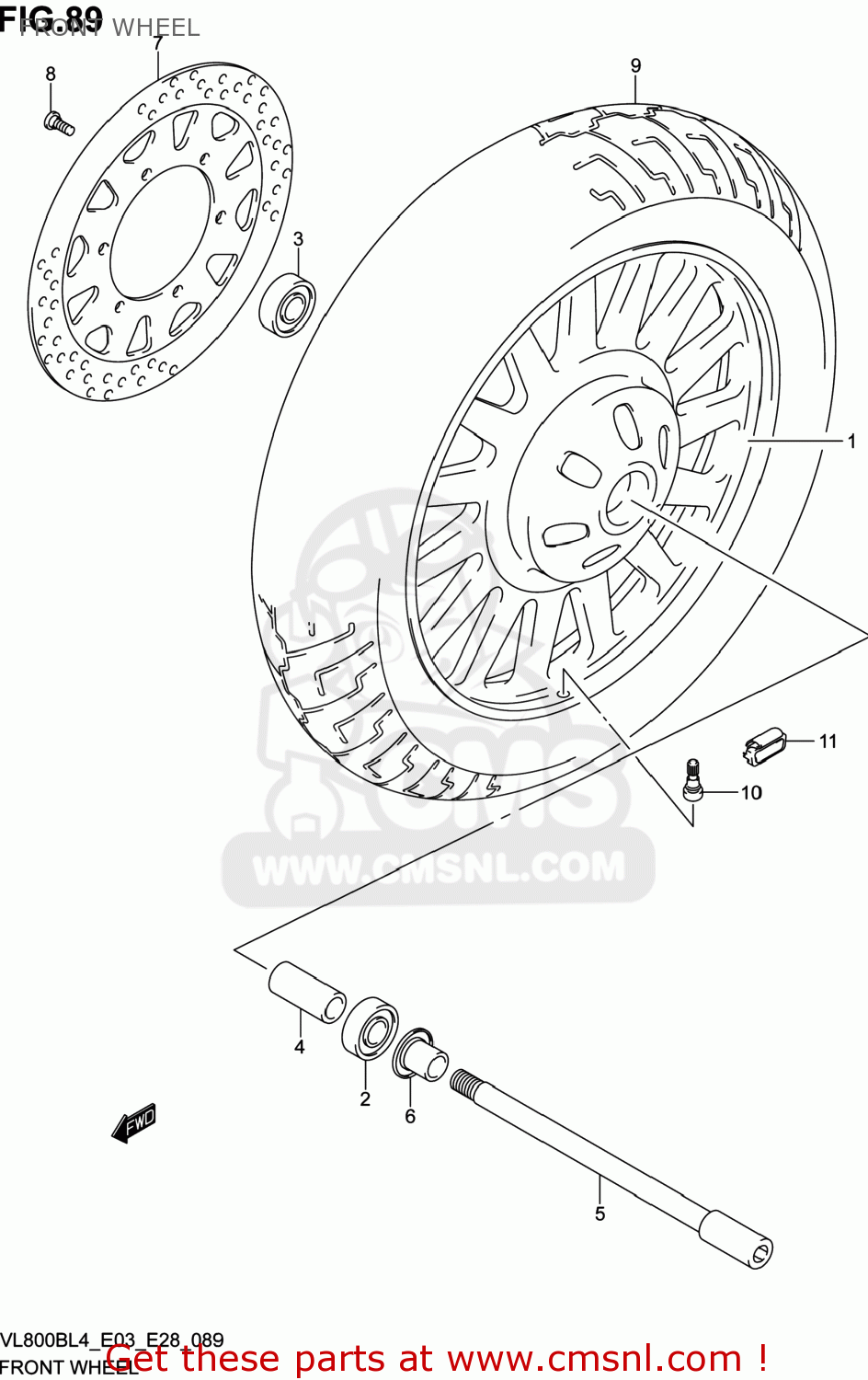

Front wheel diagram VL800B VOLUSIA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

5411141F10019
ref: 1

WHEEL,FR(16M/CXMT3.00)(BLACK)

€ 838.00

5411141F10019
ref: 1

WHEEL,FR(16M/CXMT3.00)(BLACK)

€ 838.00

0813362037
ref: 2

BEARING

€ 24.50

0814362037
ref: 3

BEARING

€ 18.50

0918017080
ref: 4

SPACER(17.5X25X102)

€ 16.50

5471141F00
ref: 5

AXLE,FR

€ 82.00

5474032C00
ref: 6

SPACER,FR AXLE,R

€ 12.00

5921141F10
ref: 7

DISC,FRONT BRAKE

€ 206.50

0910608160
ref: 8

BOLT(8X21)

€ 3.50

5511041F20
ref: 9

TIRE,FR(130/90 16M/C 67H)

€ 145.00

4313024A00
ref: 10

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

11-1

4322273H20
ref: 11-1

BALANCER,WHEEL NO.1

€ 3.50

11-2

4322473H20
ref: 11-2

BALANCER,WHEEL NO.2

€ 4.00

11-3

4322673H20
ref: 11-3

BALANCER,WHEEL NO.3

€ 4.50
