LUGGAGE BOX
VL800B VOLUSIA 2014 (L4) USA (E03)

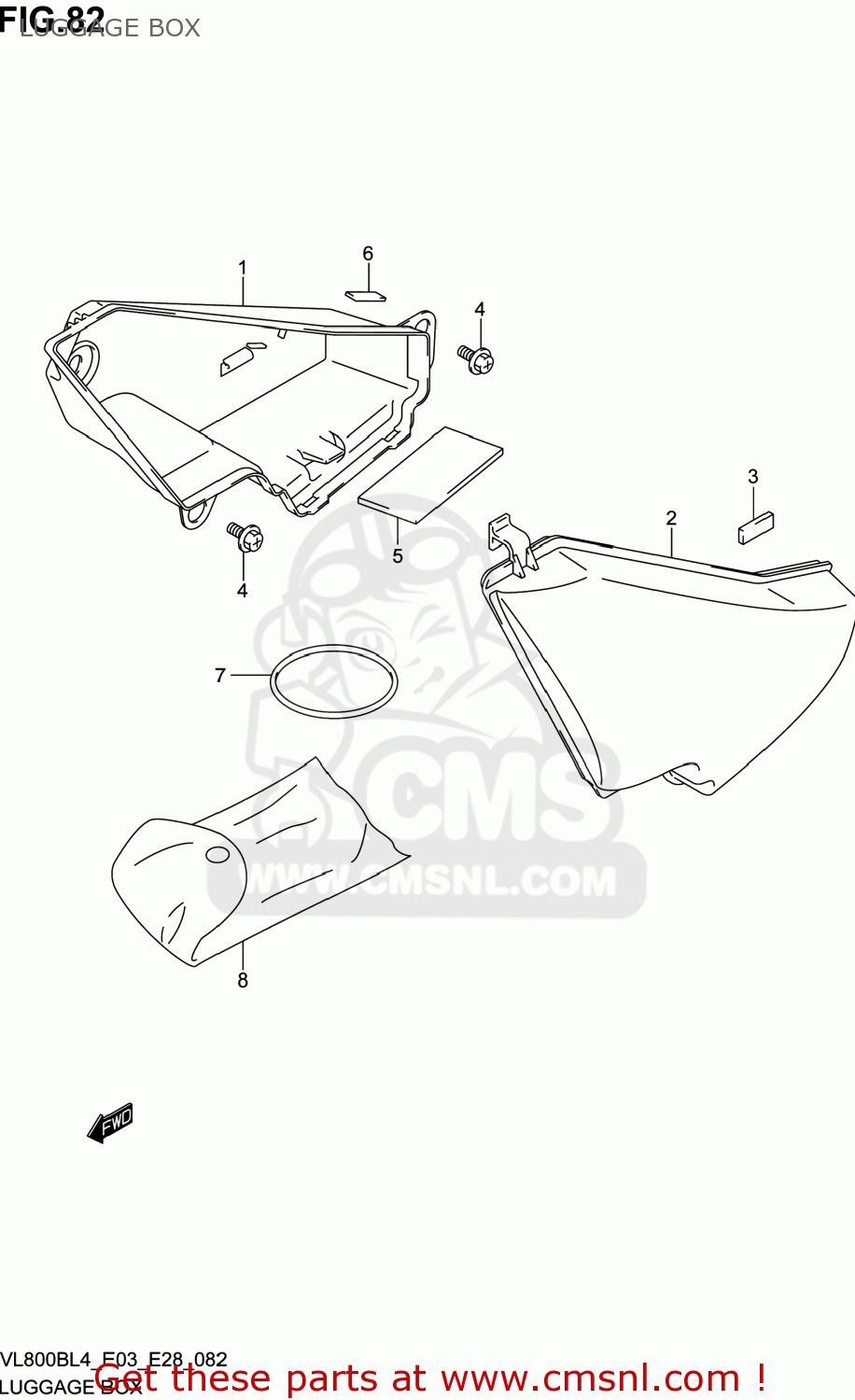

Luggage box diagram VL800B VOLUSIA 2014 (L4) USA (E03)
LUGGAGE BOX VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9221141F00
ref: 1
BODY,LUGGAGE BOX
€ 38.50
2
9221241F01
ref: 2
LID,LUGGAGE BOX
€ 26.00
3
9221341F00
ref: 3
CUSHION,LUGGAGE BOX NO.2
€ 5.00
4
0911106107
ref: 4
BOLT(6X12)
€ 3.00
5
3365235F00
ref: 5
PROTECTOR,BATTERY
€ 3.00
6
4812814FA0
ref: 6
CUSHION
€ 3.00
7
0928063003
ref: 7
09280-61002
O RING(D:3.5,ID:62.6)
€ 1.50
8
0980021055
ref: 8
TOOL ASSY
€ 6.00
