FUEL PUMP
VL800B VOLUSIA 2014 (L4) USA (E03)

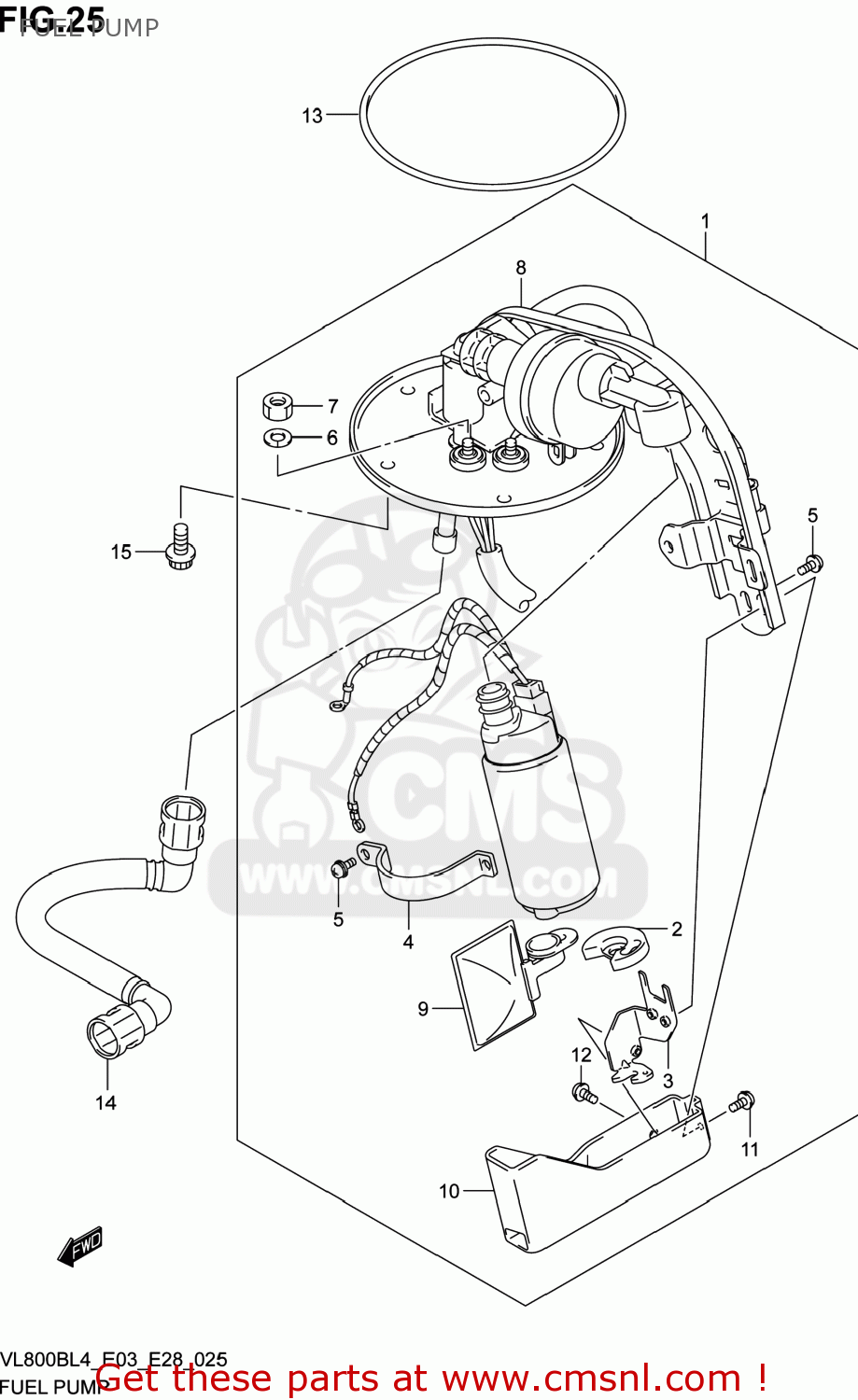

Fuel pump diagram VL800B VOLUSIA 2014 (L4) USA (E03)
FUEL PUMP VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510041F30
ref: 1
PUMP ASSY,FUEL
€ 524.50
2
1511141F10
ref: 2
CUSHION
€ 10.50
3
1511241F10
ref: 3
HOLDER
€ 17.50
4
1511510F00
ref: 4
BAND,FUEL PUMP
€ 12.00
5
1511610F10
ref: 5
SCREW
€ 3.50
6
1517235F00
ref: 6
WASHER,SPRING
€ 4.00
7
1517335F00
ref: 7
NUT
€ 4.50
8
1541041F30
ref: 8
PLATE ASSY
€ 221.00
9
1542041F10
ref: 9
STRAINER
€ 60.50
10
1542541F10
ref: 10
VESSEL
€ 21.50
11
1542941F10
ref: 11
SCREW
€ 3.50
12
1542941F20
ref: 12
SCREW
€ 3.50
13
1520135F00
ref: 13
O RING,FUEL PUMP
€ 26.00
14
1581039G02
ref: 14
HOSE,FUEL
€ 36.00
15
071200612A
ref: 15
BOLT
€ 3.50
