BATTERY

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

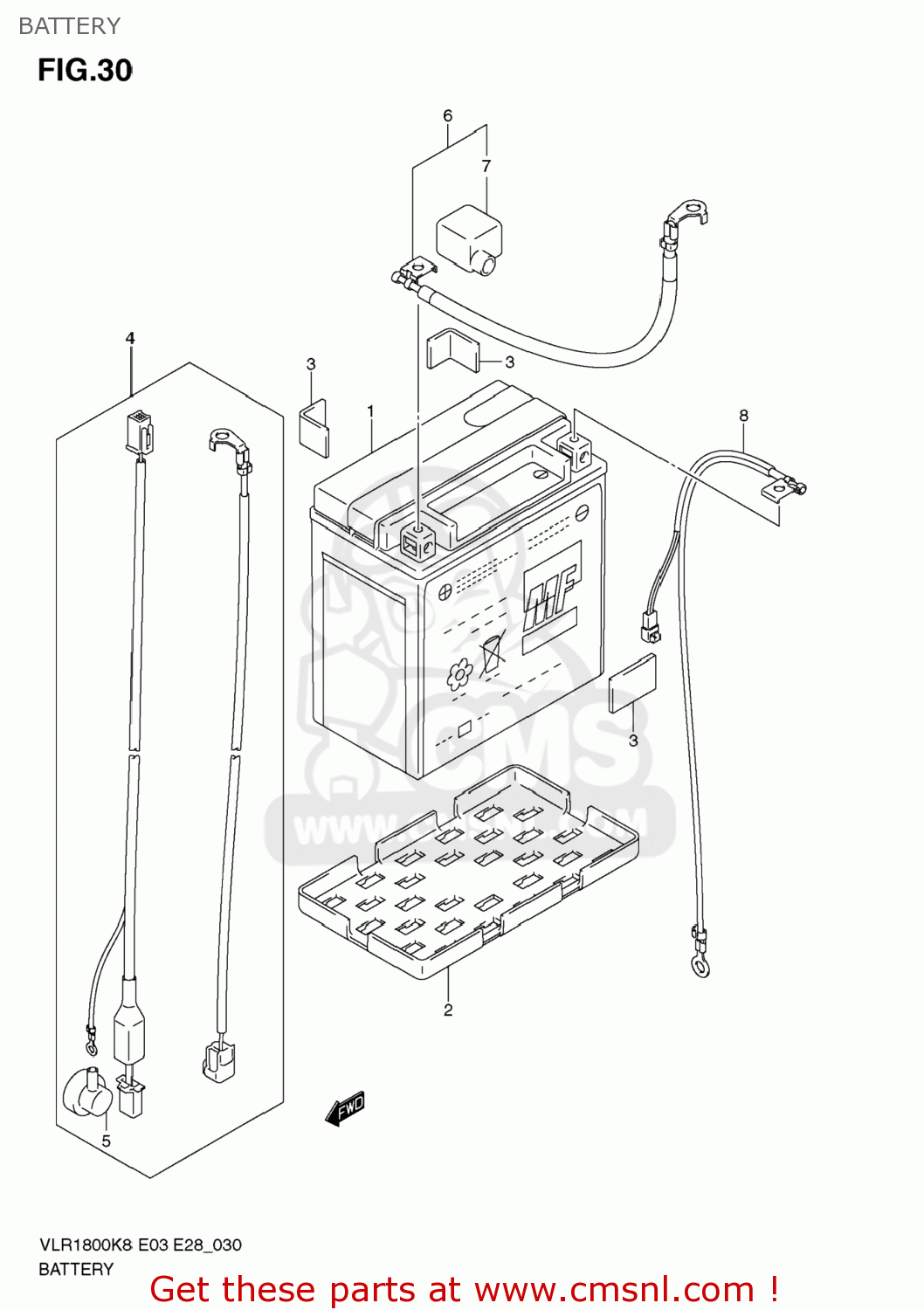

Battery diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

BATTERY VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

BATTERY VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3361031G00
ref: 1
33610-03G10

BATTERY ASSY,F

€ 143.50

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

3365236000
ref: 3

CUSHION(30X50X3)

€ 5.00

4

3381022H00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 56.00

5

3661843410
ref: 5

CAP,OIL PRESSURE SWITCH

€ 2.50

6

3382022H00
ref: 6

WIRE,BATTERY PLUS LEAD

€ 23.00

7

3362416G00
ref: 7

CAP,BATTERY PLUS

€ 4.50

8

3386022H00
ref: 8

WIRE,BATTERY M

€ 16.50
