FOOTREST (VLR1800TK9)

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

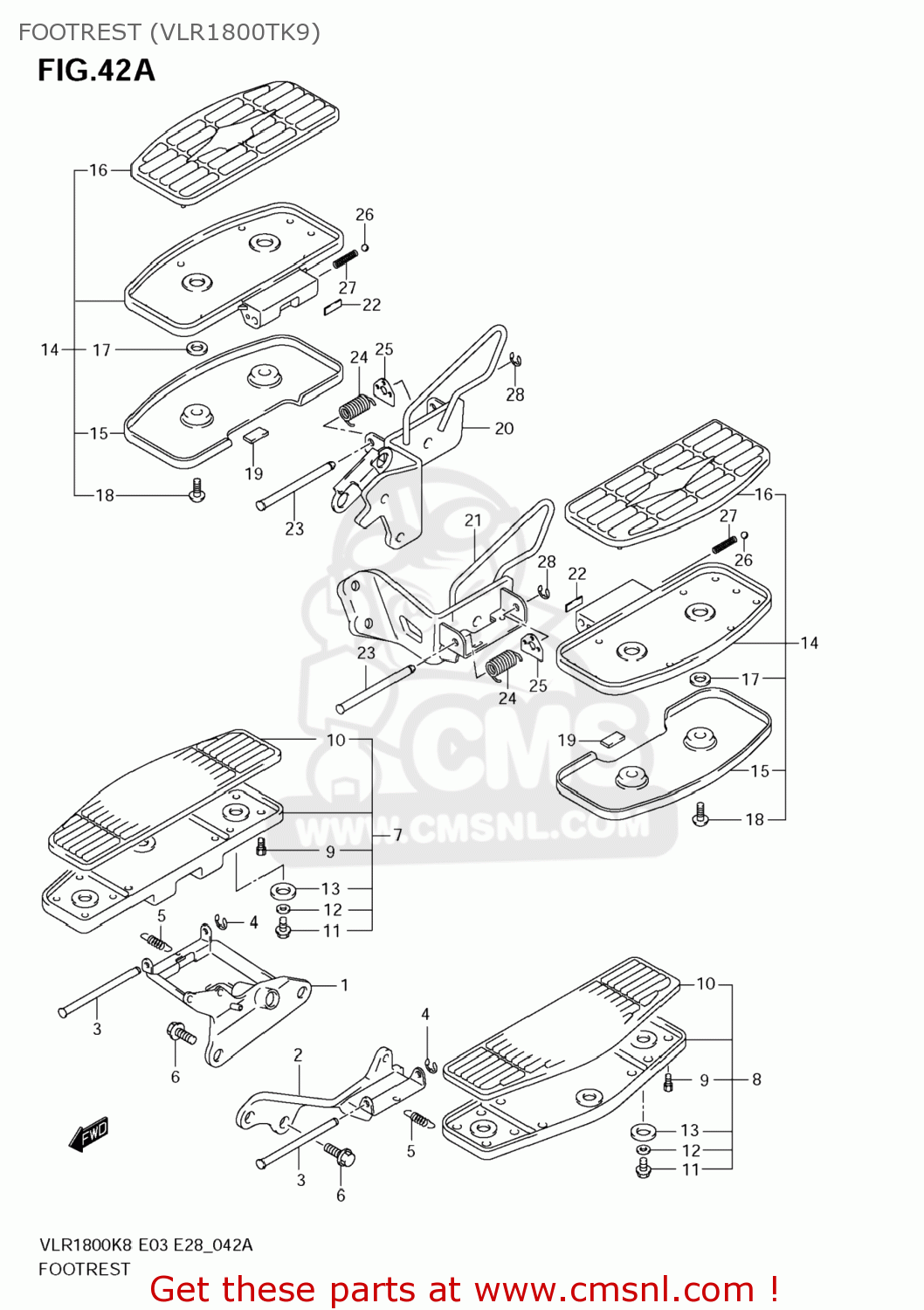

Footrest (vlr1800tk9) diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FOOTREST (VLR1800TK9) VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
FOOTREST (VLR1800TK9) VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
FOOTREST (VLR1800TK9) VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
4351022H01
ref: 1
BRACKET,FR FOOTREST,R
€ 150.50
2
4352022H00
ref: 2
BRACKET,FR FOOTREST,L
€ 97.00
3
4353910F00
ref: 3
PIN,FR FOOTREST
€ 6.50
4
083321106A
ref: 4
E RING
083321106A
€ 2.00
5
0944311033
ref: 5
SPRING
0944311033
€ 4.50
6
015501230B
ref: 6
BOLT
015501230B
€ 3.50
7
4350110F10
ref: 7
43501-10F11
FOOTREST ASSY,
€ 122.00
8
4350210F10
ref: 8
43502-10F11
FOOTREST ASSY,
€ 122.00
9
4357607D01
ref: 9
BOLT,BANK SENSOR
4357607D01
€ 8.00
10
4355010F10
ref: 10
RUBBER,FR FOOTREST
€ 58.00
11
015500610B
ref: 11
BOLT
015500610B
€ 2.50
12
0916006158
ref: 12
WASHER(6.5X22X1.6)
€ 1.50
13
0932010036
ref: 13
CUSHION
0932010036
€ 2.50
14
4360022H10
ref: 14
FOOTREST ASSY,PILLION
€ 185.50
15
4363222H00
ref: 15
PLATE,FOOTREST BOARD
€ 91.00
16
4367022H00
ref: 16
RUBBER,PILLION FOOTREST
€ 45.00
17
0932010036
ref: 17
CUSHION
0932010036
€ 2.50
18
0913906067
ref: 18
SCREW(6X16)
0913906067
€ 3.00
19
4363322H00
ref: 19
CUSHION,PILLIO
4363322H00
€ 4.00
20
4381022H10
ref: 20
BRACKET,PILLION FOOTREST,R
4381022H10
€ 171.50
21
4382022H10
ref: 21
BRACKET,PILLION FOOTREST,L
4382022H10
€ 116.50
22
4363822H00
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
23
4363622H00
ref: 23
PIN,PILLION FOOTREST
4363622H00
€ 7.00
24
4363722H00
ref: 24
SPRING,PILLION FOOTREST BOARD
4363722H00
€ 4.50
25
4381622H00
ref: 25
PLATE,PILLION FOOTREST
4381622H00
€ 4.50
26
0611107004
ref: 26
BALL
0611107004
€ 1.50
27
0944005003
ref: 27
SPRING
0944005003
€ 1.50
28
083321106A
ref: 28
E RING
083321106A
€ 2.00
