FUEL TANK COVER

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

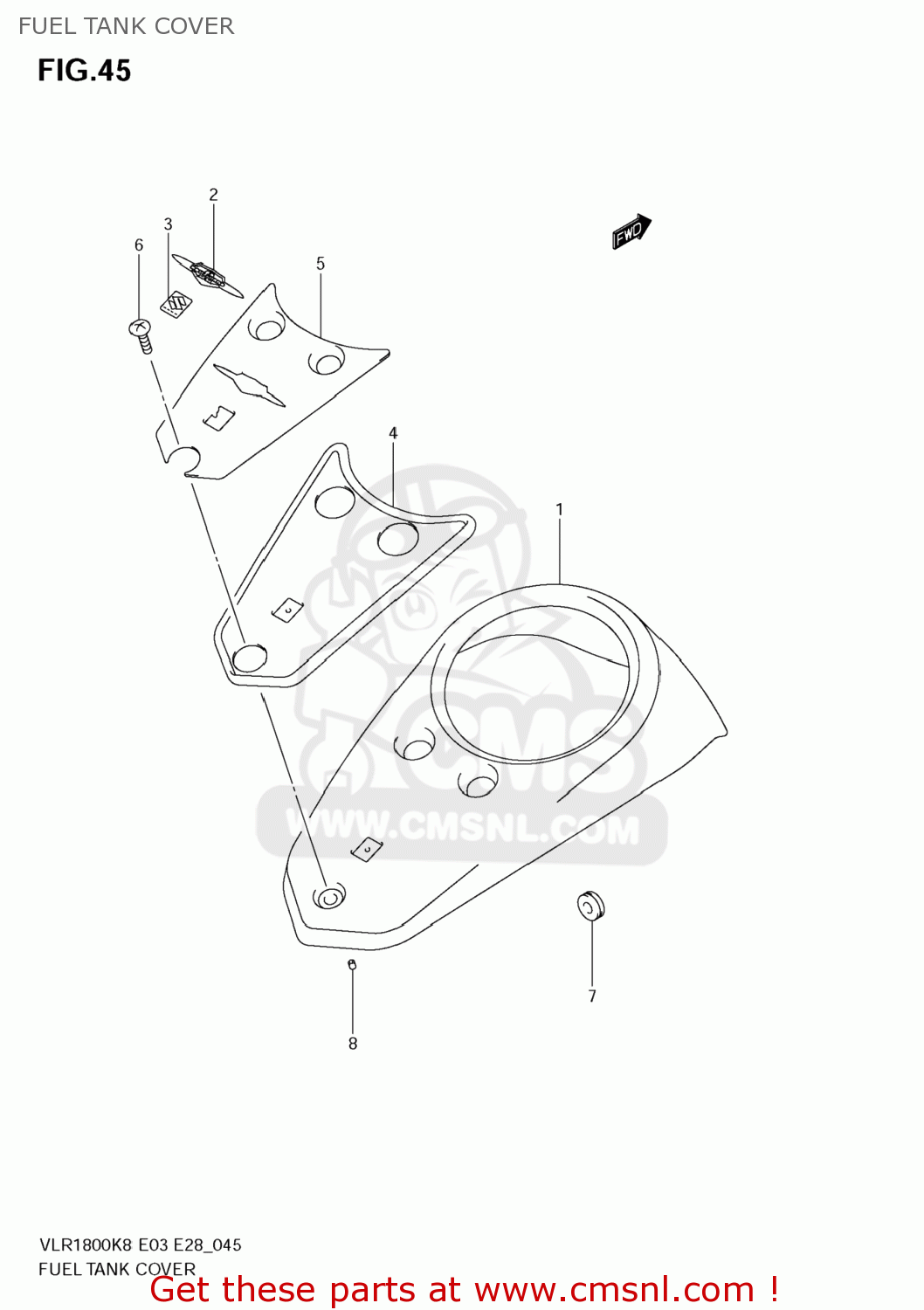

Fuel tank cover diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FUEL TANK COVER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FUEL TANK COVER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4429022H00
ref: 1

COVER,FUEL TANK UPR

€ 142.50

2

6828122H00
ref: 2

EMBLEM,BOULEVARD

€ 29.00

3

6828135F00
ref: 3

EMBLEM,S

€ 13.00

4

6889722H00
ref: 4

PLATE,TANK UPR COVER NO.1

€ 57.00

5

6889822H00
ref: 5

PLATE,TANK UPR COVER NO.2

€ 63.00

6

0913906152
ref: 6

SCREW(6X12)

€ 4.50

7

0932008013
ref: 7

CUSHION

€ 4.00

8-1

0932903001
ref: 8-1

CUSHION

€ 1.50

8-2

4429443H00
ref: 8-2

CUSHION,FUEL TANK COVER

€ 2.50
