FRAME

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

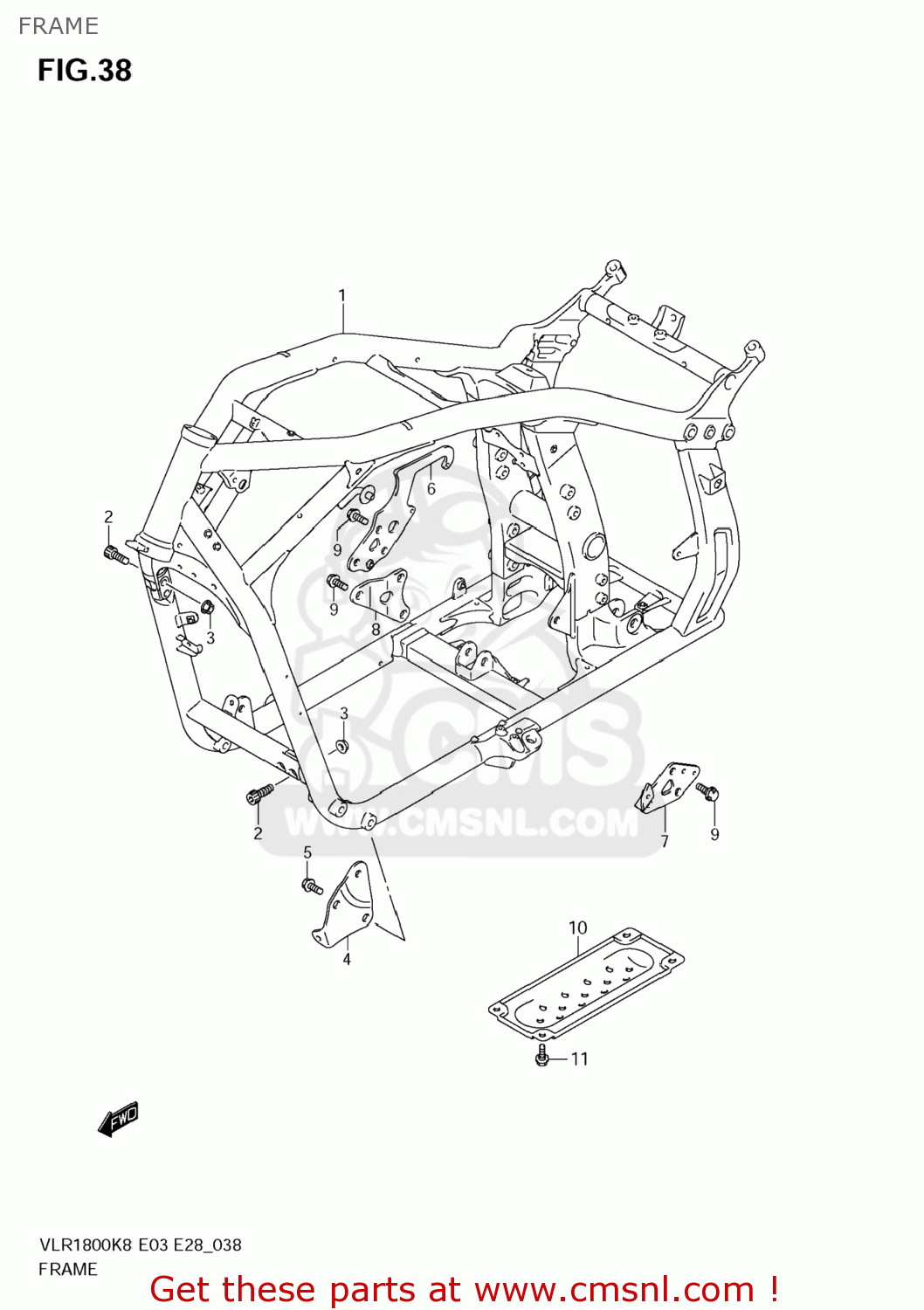

Frame diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FRAME VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FRAME VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

4110022H00019
ref: 1-1

FRAME(BLACK)

€ 4,522.50

1-2

4110022H10019
ref: 1-2

FRAME(BLACK)

€ 2,959.50

2

071301035B
ref: 2

BOLT

€ 3.50

3

083193110B
ref: 3

NUT

€ 3.00

4

4192022H00
ref: 4

PLATE,ENG MTG FR,L

€ 23.50

5

015501230B
ref: 5

BOLT

€ 3.50

6

4193022H00
ref: 6

PLATE,ENG MTG RR,R

€ 39.50

7

4194022H00
ref: 7

PLATE,ENG MTG,L

€ 14.50

8

4195122H00
ref: 8

PLATE,ENG MTG RR LOW,R

€ 10.50

9

015501025B
ref: 9

BOLT

€ 3.00

10

4256122H00
ref: 10

PROTECTOR,FRAME UNDER

€ 37.50

11

0911306001
ref: 11

BOLT(6X16)

€ 3.00
