ELECTRICAL

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

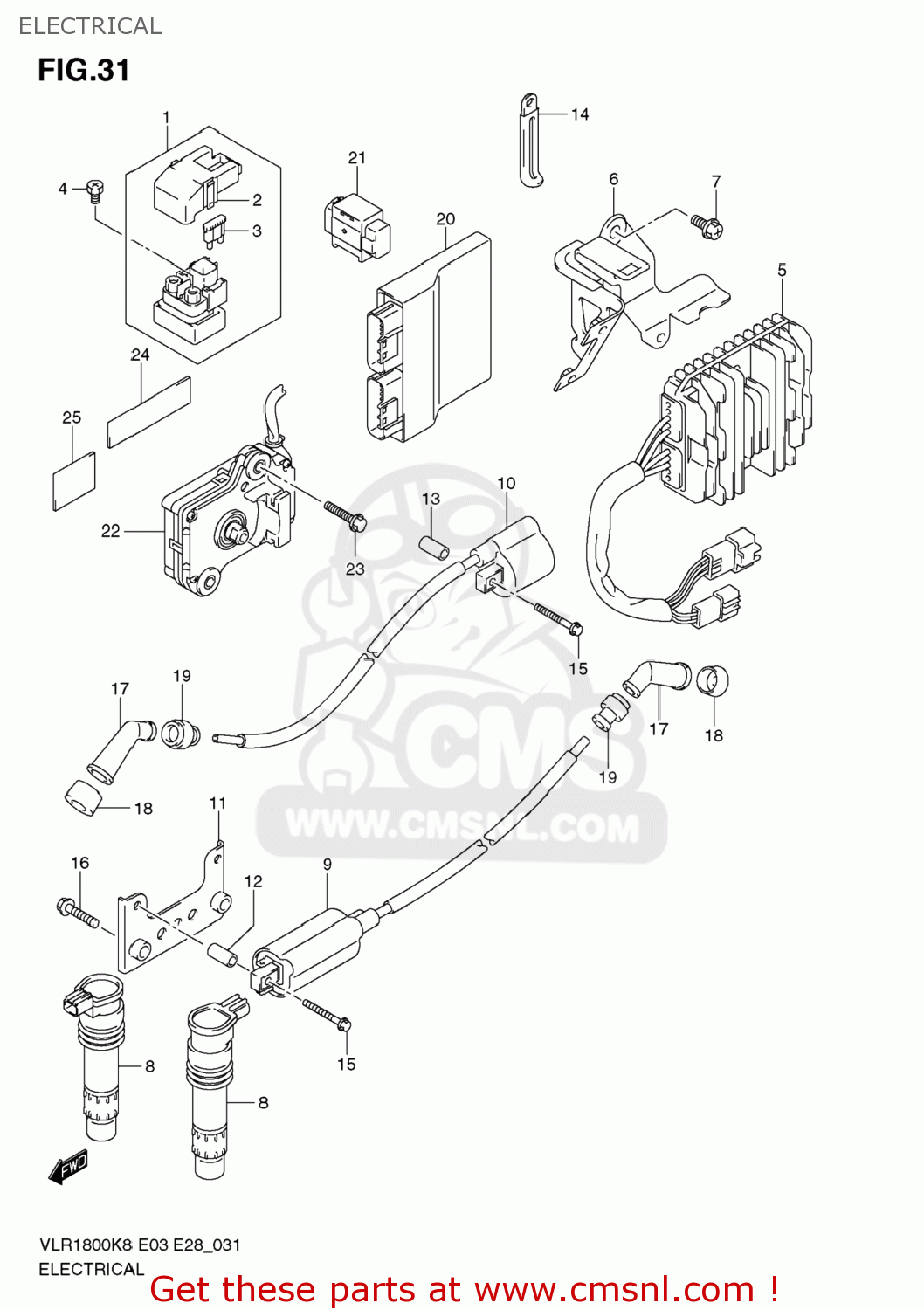

Electrical diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

ELECTRICAL VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
ELECTRICAL VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
ELECTRICAL VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3180006G10
ref: 1
RELAY ASSY,STARTING MOTOR
€ 112.50
2
3186147E00
ref: 2
COVER
3186147E00
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280010G10
ref: 5
RECTIFIER ASSY
€ 336.50
6
3283022H00
ref: 6
BRACKET,RECT FTG
€ 20.00
7
015500812A
ref: 7
BOLT
015500812A
€ 2.50
8
3341035F10
ref: 8
COIL ASSY,IGNITION
3341035F10
€ 122.50
9
3342026F10
ref: 9
COIL ASSY,IGNITION
€ 136.50
10
3341022H00
ref: 10
COIL ASSY,IGNITION RR
3341022H00
€ 148.50
11
3341422H00
ref: 11
BRACKET,IGNITION COIL
€ 10.00
12
0918006195
ref: 12
SPACER(6.4X10X18)
0918006195
€ 3.50
13
0918006198
ref: 13
SPACER(6.2X12X16)
0918006198
€ 3.50
14
0940406433
ref: 14
CLAMP(L:80)
0940406433
€ 3.00
15
015470535A
ref: 15
BOLT
015470535A
€ 2.00
16
015500625A
ref: 16
BOLT
015500625A
€ 2.50
17
3351020E00
ref: 17
CAP ASSY,SPARK PLUG
3351020E00
€ 22.50
18
3354147D00
ref: 18
SEAL,SPARK PLUG
3354147D00
€ 7.00
19
3354238B00
ref: 19
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
20-1
3292022H10
ref: 20-1
32920-22H11
CONTROL UNIT,FI
€ 1,085.00
20-2
3292022H20
ref: 20-2
CONTROL UNIT,FI
€ 1,085.00
21
3396006G10
ref: 21
SENSOR ASSY,FUEL CUT
3396006G10
€ 75.00
22
3397041G00
ref: 22
ACTUATOR ASSY,EXHAUST CONTROL
€ 347.00
23
015600625A
ref: 23
BOLT
€ 2.00
24
3365226E00
ref: 24
PROTECTOR(20X90)X1.0
3365226E00
€ 3.00
25
3661116G00
ref: 25
TAPE,WIRING HARNESS(28X50X0.13
3661116G00
€ 2.00
