MAGNETO

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

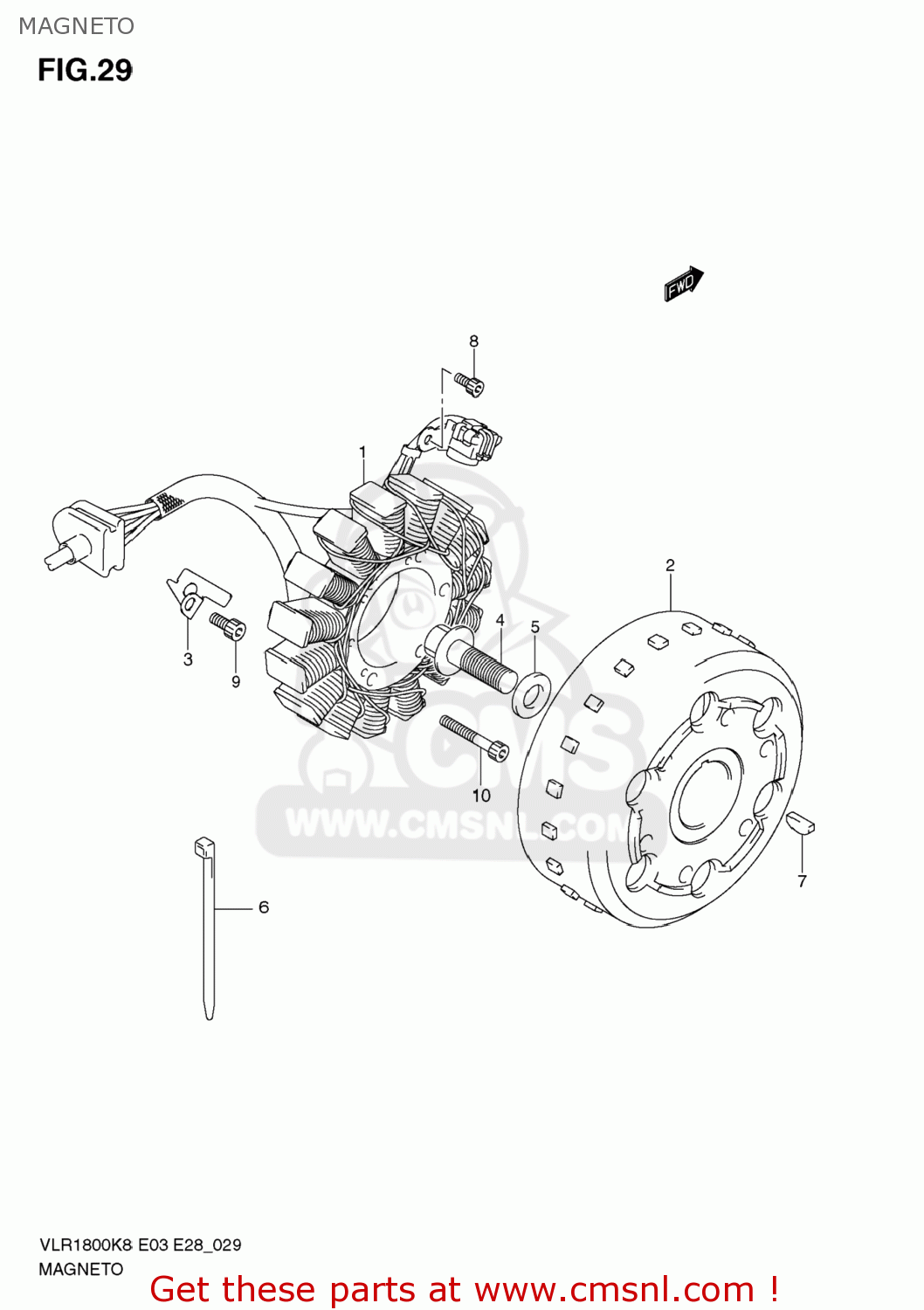

Magneto diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

MAGNETO VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

MAGNETO VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3210148G10
ref: 1

STARTER ASSY

€ 999.00

2

3210248G10
ref: 2

ROTOR ASSY

€ 626.00

3

3237133E00
ref: 3

CLAMP,MAGNETO LEAD

€ 3.50

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

0916014021
ref: 5

WASHER(14X29X4)

€ 5.00

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00

7

0942005007
ref: 7

KEY

€ 3.00

8

071300510A
ref: 8

BOLT

€ 1.50

9

071300612A
ref: 9

BOLT

€ 2.50

10

0910606088
ref: 10

BOLT(6X35)

€ 2.50
