REAR FRAME

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

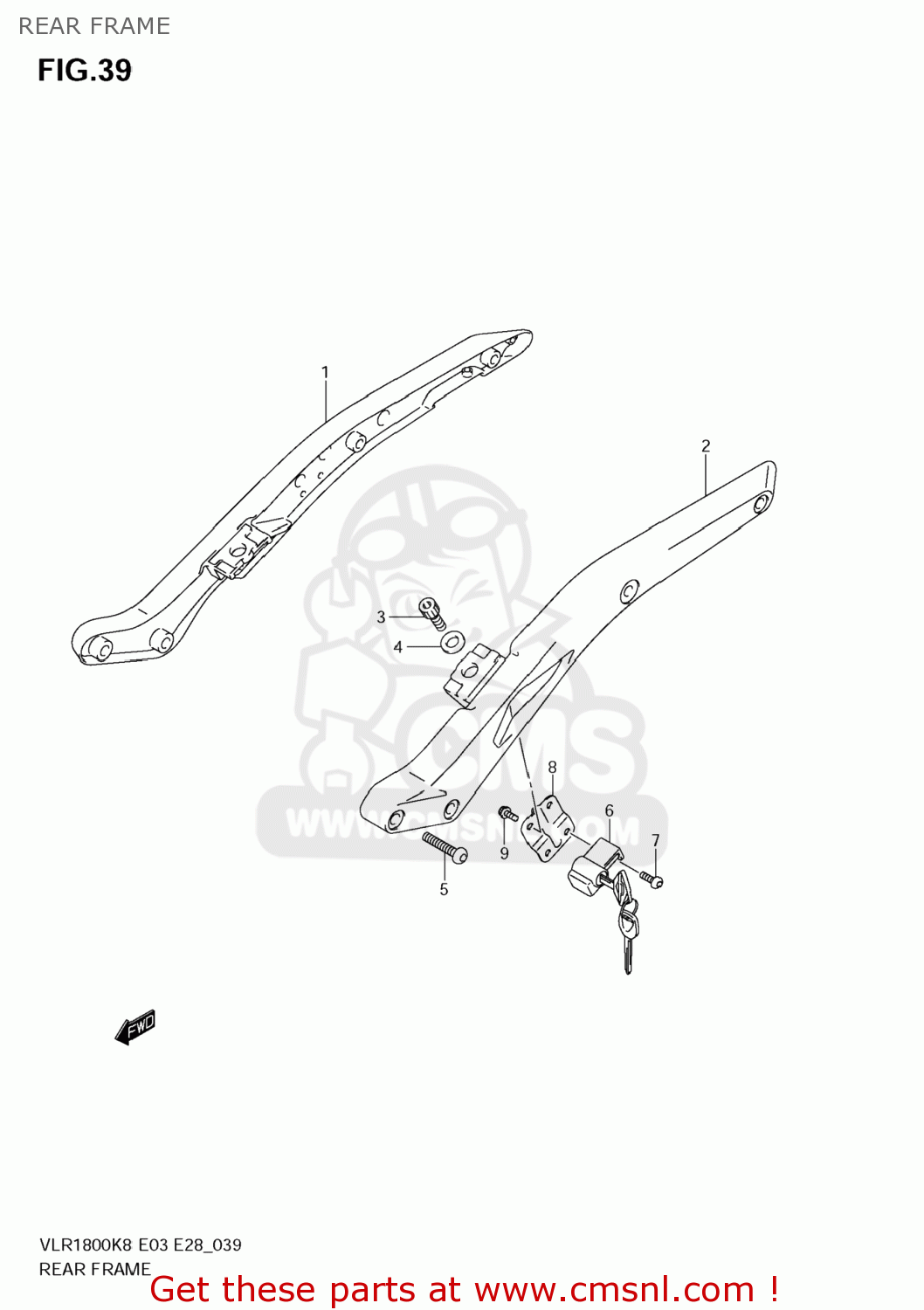

Rear frame diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

REAR FRAME VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

REAR FRAME VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

4265022H00
ref: 1-1

FRAME,RR,R

€ 418.50

1-2

4265022H10
ref: 1-2

FRAME,RR,R

€ 342.00

2-1

4266022H00
ref: 2-1

FRAME,RR,L

€ 458.50

2-2

4266022H10
ref: 2-2

FRAME,RR,L

€ 292.00

3

0910612005
ref: 3

BOLT(12X26)

€ 10.50

4

083220112A
ref: 4

WASHER

€ 1.50

5

0910612006
ref: 5

BOLT(12X65)

€ 13.00

6

9570041821
ref: 6

LOCK SET,HELMET

€ 88.00

7

0913906089
ref: 7

SCREW(6X14)

€ 2.50

8

9571022H00
ref: 8

BRACKET,HELMET LOCK

€ 5.00

9

071200616A
ref: 9

BOLT

€ 3.00
