REAR COMBINATION LAMP

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

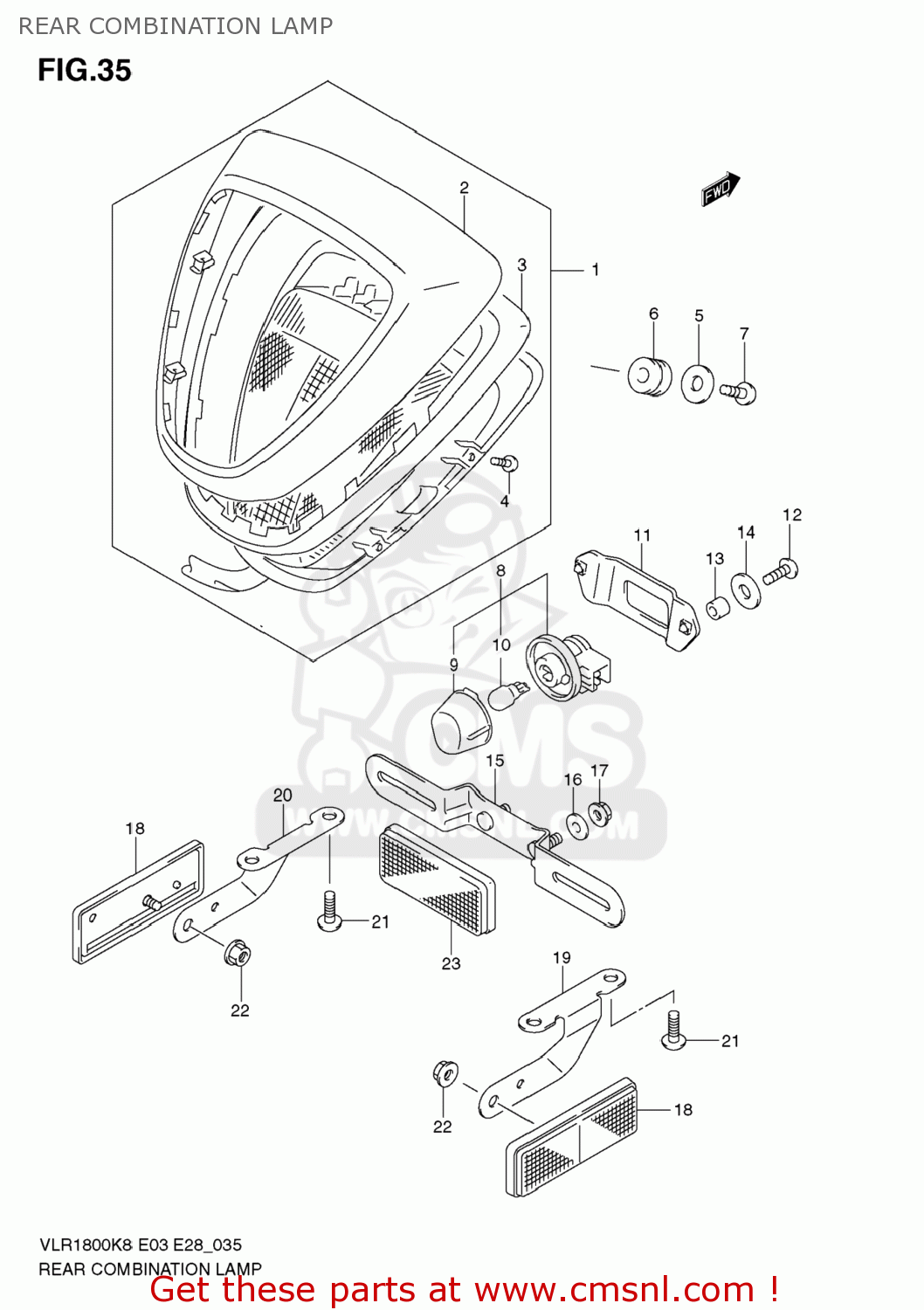

Rear combination lamp diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

3571022H00
ref: 1

LAMP ASSY,RR COMBINATION

€ 728.50

3571722H00
ref: 2

COVER

€ 375.00

3571322H00
ref: 3

END,RUBBER

€ 41.00

3562341400
ref: 4

SCREW(3X12)

€ 2.00

0916005501
ref: 5

WASHER(5.5X20X1.2)

€ 2.00

0932009009
ref: 6

CUSHION

€ 5.00

035410512A
ref: 7

SCREW

€ 2.00

3591014F01
ref: 8

LAMP ASSY,LICENSE

€ 16.50

3591214F11
ref: 9

LENS

€ 6.50

0947112216
ref: 10

BULB(12V5W)

€ 5.00

3592822H00
ref: 11

BRACKET,LICENSE LAMP

€ 10.00

0913605032
ref: 12

SCREW(5X16)

€ 3.00

0918005053
ref: 13

SPACER(5.5X9.5X6.5)

€ 2.00

0932010057
ref: 14

CUSHION

€ 3.50

3592722H30
ref: 15

BRACKET,LICENSE PLATE

€ 9.50

0916006079
ref: 16
09160-06052

WASHER(6.5X16X1.2)

€ 2.00

083161006A
ref: 17

NUT

€ 2.50

3597007F01
ref: 18

REFLECTOR ASSY,RR

€ 20.50

3597522H00
ref: 19

BRACKET,RR SIDE RR,R

€ 6.00

3597622H00
ref: 20

BRACKET,RR SIDE RR,L

€ 7.50

021620612A
ref: 21

SCREW

€ 2.50

083161005B
ref: 22

NUT

€ 2.50

3597022H00
ref: 23

REFLECTOR ASSY,RR

€ 17.50
