FOOTREST (VLR1800K8/TK8/K9)

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

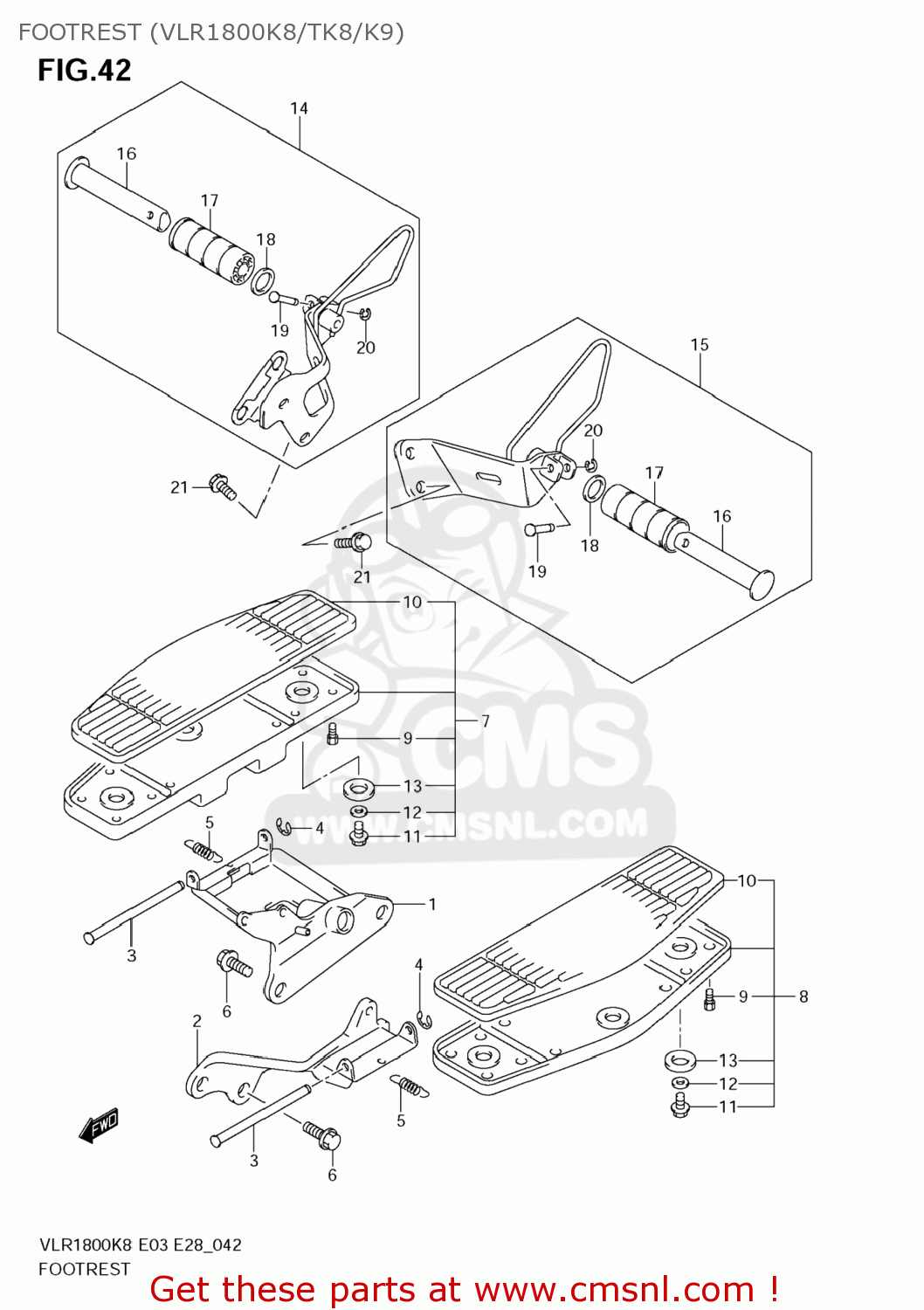

Footrest (vlr1800k8/tk8/k9) diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

4351022H01
ref: 1

BRACKET,FR FOOTREST,R

€ 150.50

4352022H00
ref: 2

BRACKET,FR FOOTREST,L

€ 97.00

4353910F00
ref: 3

PIN,FR FOOTREST

€ 6.50

083321106A
ref: 4

E RING

€ 2.00

0944311033
ref: 5

SPRING

€ 4.50

015501230B
ref: 6

BOLT

€ 3.50

4350110F10
ref: 7
43501-10F11

FOOTREST ASSY,

€ 122.00

4350210F10
ref: 8
43502-10F11

FOOTREST ASSY,

€ 122.00

4357607D01
ref: 9

BOLT,BANK SENSOR

€ 8.00

4355010F10
ref: 10

RUBBER,FR FOOTREST

€ 58.00

015500610B
ref: 11

BOLT

€ 2.50

0916006158
ref: 12

WASHER(6.5X22X1.6)

€ 1.50

0932010036
ref: 13

CUSHION

€ 2.50

4360022H00
ref: 14

FOOTREST ASSY,PILLION,R

€ 137.50

4370022H00
ref: 15

FOOTREST ASSY,PILLION,L

€ 117.50

4361039G00
ref: 16

BAR,PILLION FOOTREST

€ 13.00

4361239G00
ref: 17

RUBBER,PILLION FOOTREST

€ 5.00

0916019024
ref: 18

WASHER(19.5X32X2)

€ 2.00

0920806007
ref: 19

PIN

€ 3.00

083321104A
ref: 20

E RING

€ 2.00

015501030B
ref: 21

BOLT

€ 3.00

FOOTREST (VLR1800K8/TK8/K9)

all assemblies
