STARTER CLUTCH

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

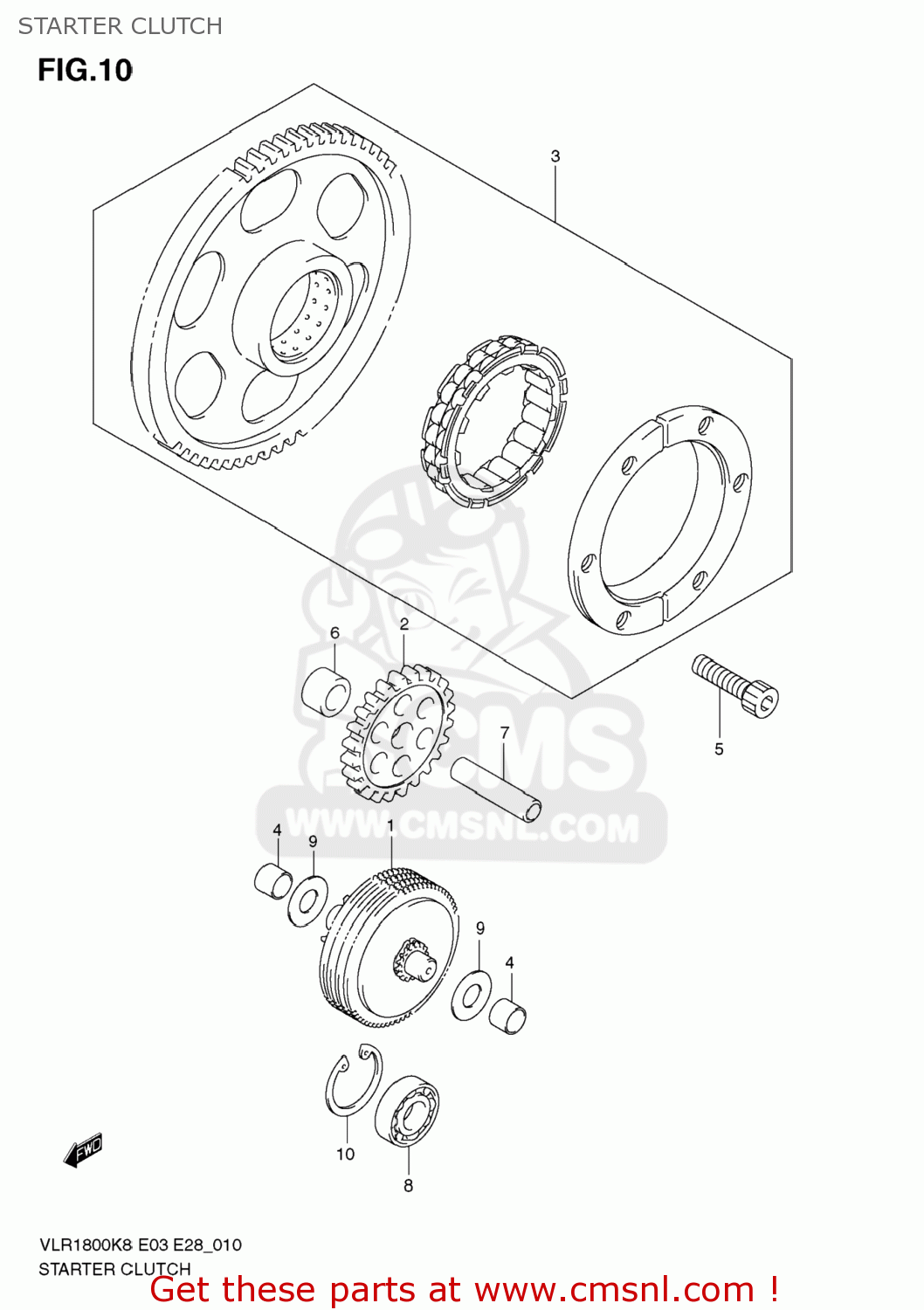

Starter clutch diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

STARTER CLUTCH VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

STARTER CLUTCH VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1260048G00
ref: 1

LIMITER ASSY,S

€ 205.00

2

1261206G00
ref: 2

GEAR,STARTER IDLE NO.2

€ 50.00

3

1260048820
ref: 3

CLUTCH SET,STARTER

€ 274.00

4

1261831G00
ref: 4

BUSH,LIMITER GEAR SHAFT

€ 2.00

5

0910608095
ref: 5

BOLT(8X16)

€ 2.50

6

0918012138
ref: 6
09180-12138-A05

SPACER(12.5X19X12.5)

€ 4.00

7

0920612006
ref: 7

PIN(8X12X45.5)

€ 7.50

8

0926212001
ref: 8

BEARING(12X28X8)

€ 15.00

9

0821110221
ref: 9

WASHER

€ 2.50

10

083314128A
ref: 10

CIRCLIP

€ 4.00
