SEAT (VLR1800K8/K9)

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

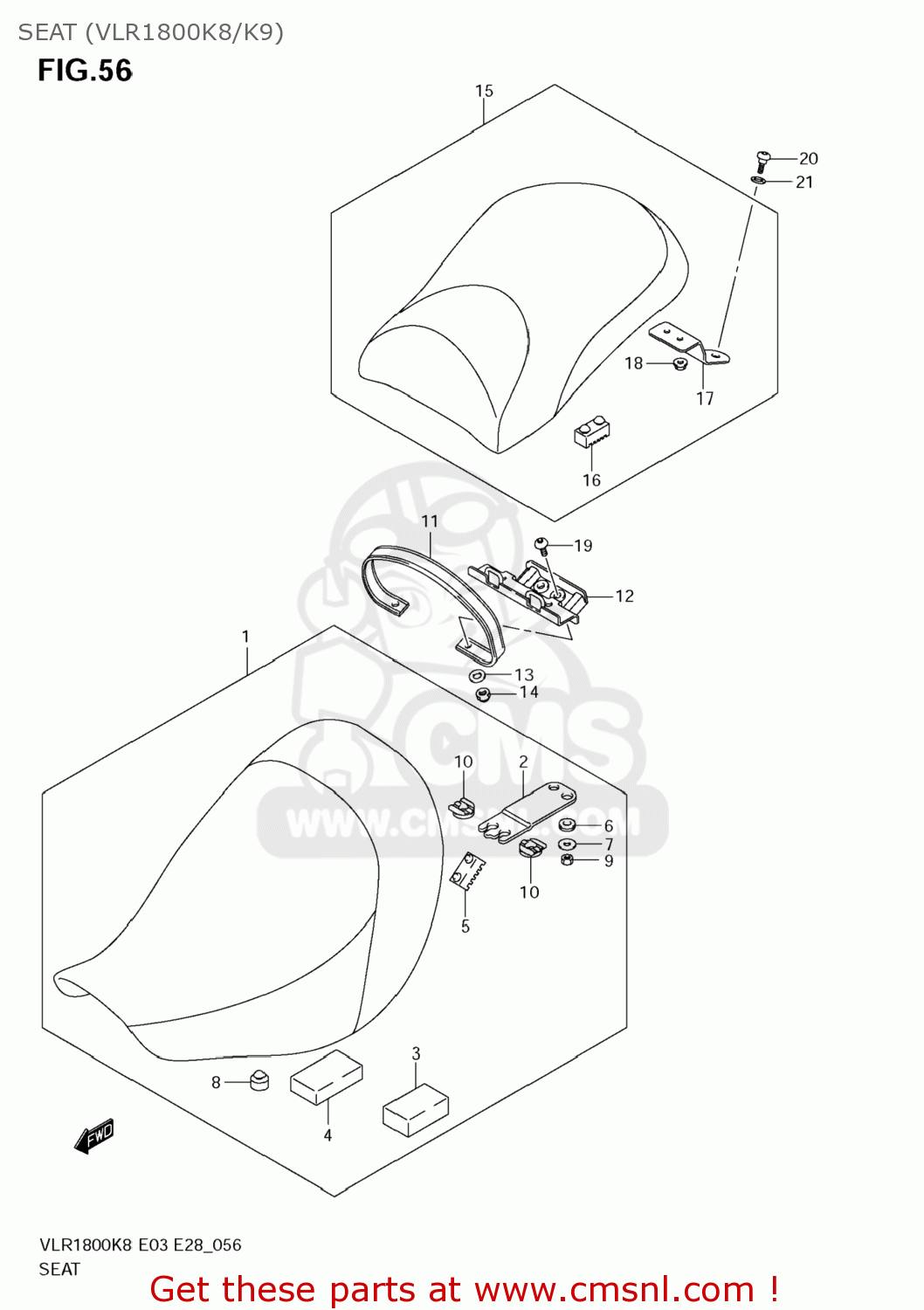

Seat (vlr1800k8/k9) diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

4510022H00V4Y
ref: 1

SEAT ASSY(BLACK)

€ 413.00

4511522H00
ref: 2

BRACKET,SEAT

€ 14.00

4514822H00
ref: 3

CUSHION

€ 3.00

4514922H00
ref: 4

CUSHION

€ 3.00

4514942F00
ref: 5

CUSHION

€ 4.50

4521506B00
ref: 6

CUSHION

€ 4.50

0916006088
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

0932110011
ref: 8

CUSHION

€ 3.00

083161006A
ref: 9

NUT

€ 2.50

0932010057
ref: 10

CUSHION

€ 3.50

4518122H00V4Y
ref: 11

BAND,SEAT(BLACK)

€ 16.00

4518522H00
ref: 12

BRACKET,SEAT BAND

€ 52.50

0916006088
ref: 13

WASHER(6.5X20X1.6)

€ 2.00

083132006A
ref: 14

NUT

€ 2.00

4530022H00V4Y
ref: 15

SEAT ASSY,PILL

€ 370.00

4514942F00
ref: 16

CUSHION

€ 4.50

4531522H00
ref: 17

BRACKET,SEAT

€ 25.00

083161006A
ref: 18

NUT

€ 2.50

0910606064
ref: 19

BOLT(6X18)

€ 6.00

20-1

0910608169
ref: 20-1

BOLT(8X16)

€ 9.00

20-2

0910608169
ref: 20-2

BOLT(8X16)

€ 9.00

4531722H00
ref: 21

WASHER,PILLION SEAT

€ 4.00
