OIL COOLER

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

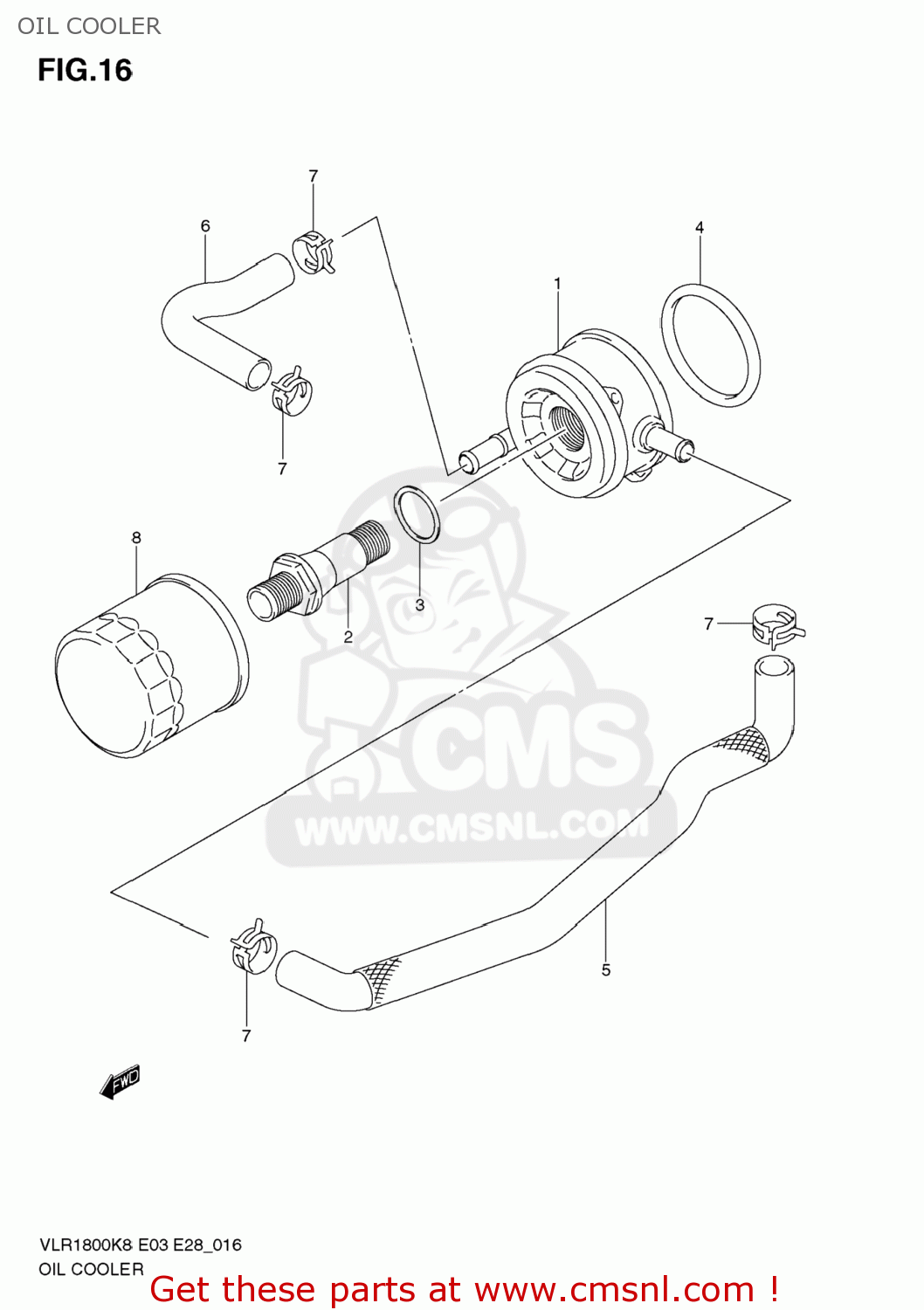

Oil cooler diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

OIL COOLER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

OIL COOLER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1660022H00
ref: 1

COOLER ASSY,OI

€ 716.00

2

1659149X00
ref: 2

BOLT,OIL COOLER UNION

€ 31.50

3

0918125160
ref: 3

SHIM(25X34X0.7)

€ 3.00

4

0928064003
ref: 4

O RING(D:3.1,ID:63.9)

€ 5.00

5

1646148G00
ref: 5

HOSE,OIL COOLER WATER INLET

€ 25.00

6

1647122H00
ref: 6

HOSE,OIL COOLER WATER OUTLET

€ 15.00

7

0940116407
ref: 7

CLIP

€ 2.50

8-1

1651003G00X07
ref: 8-1
16510-07J00

FILTER ASSY,EN

€ 12.50

8-2

1651022H00
ref: 8-2

FILTER ASSY,EN

€ 33.50
