RADIATOR

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

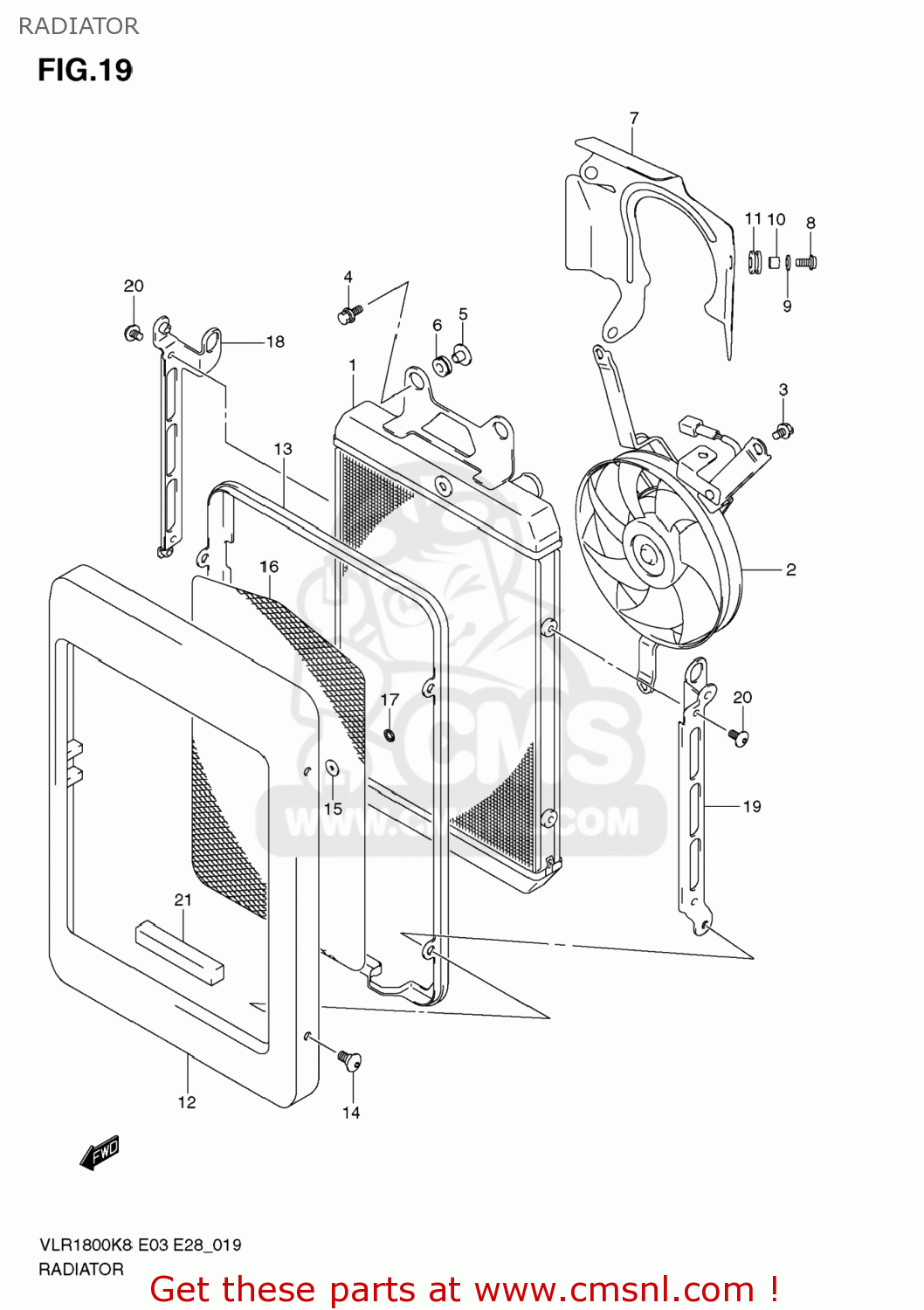

Radiator diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

RADIATOR VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
RADIATOR VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
RADIATOR VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1771022H00
ref: 1
RADIATOR ASSY,WATER
€ 1,006.00
2
1780022H00
ref: 2
FAN ASSY,RADIATOR
€ 855.00
3
1771140F00
ref: 3
BOLT,FAN ASSY
1771140F00
€ 3.50
4
0913808003
ref: 4
SCREW(8X30)
€ 4.00
5
0918008220
ref: 5
SPACER(8.6X12X14.3)
0918008220
€ 5.50
6
0932012080
ref: 6
CUSHION
€ 5.00
7
1777122H00
ref: 7
SHIELD,RADIATO
€ 73.50
8
015470616B
ref: 8
BOLT
015470616B
€ 2.50
9
0916006152
ref: 9
WASHER(6.5X20X1.2)
0916006152
€ 1.50
10
0918006001
ref: 10
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
11
0932008066
ref: 11
CUSHION
0932008066
€ 7.50
12
1776122H00
ref: 12
COVER,RADIATOR NO.1
€ 57.50
13
1776222H00
ref: 13
COVER,RADIATOR NO.2
1776222H00
€ 38.50
14
0913906175
ref: 14
SCREW(6X16)
€ 3.50
15
0932004501
ref: 15
CUSHION
0932004501
€ 3.00
16
1776522H00
ref: 16
NET,RADIATOR COVER
1776522H00
€ 99.50
17
0914803010
ref: 17
NUT
0914803010
€ 3.00
18
1776922H00
ref: 18
BRACKET,RADIATOR COVER,R
1776922H00
€ 18.50
19
1776822H00
ref: 19
BRACKET COMP,RADIATOR COVER,L
1776822H00
€ 18.50
20
021420610A
ref: 20
SCREW
021420610A
€ 2.00
21
9214143EU0
ref: 21
CUSHION,LEG SHIELD COVER
€ 3.00
