BATTERY HOLDER

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

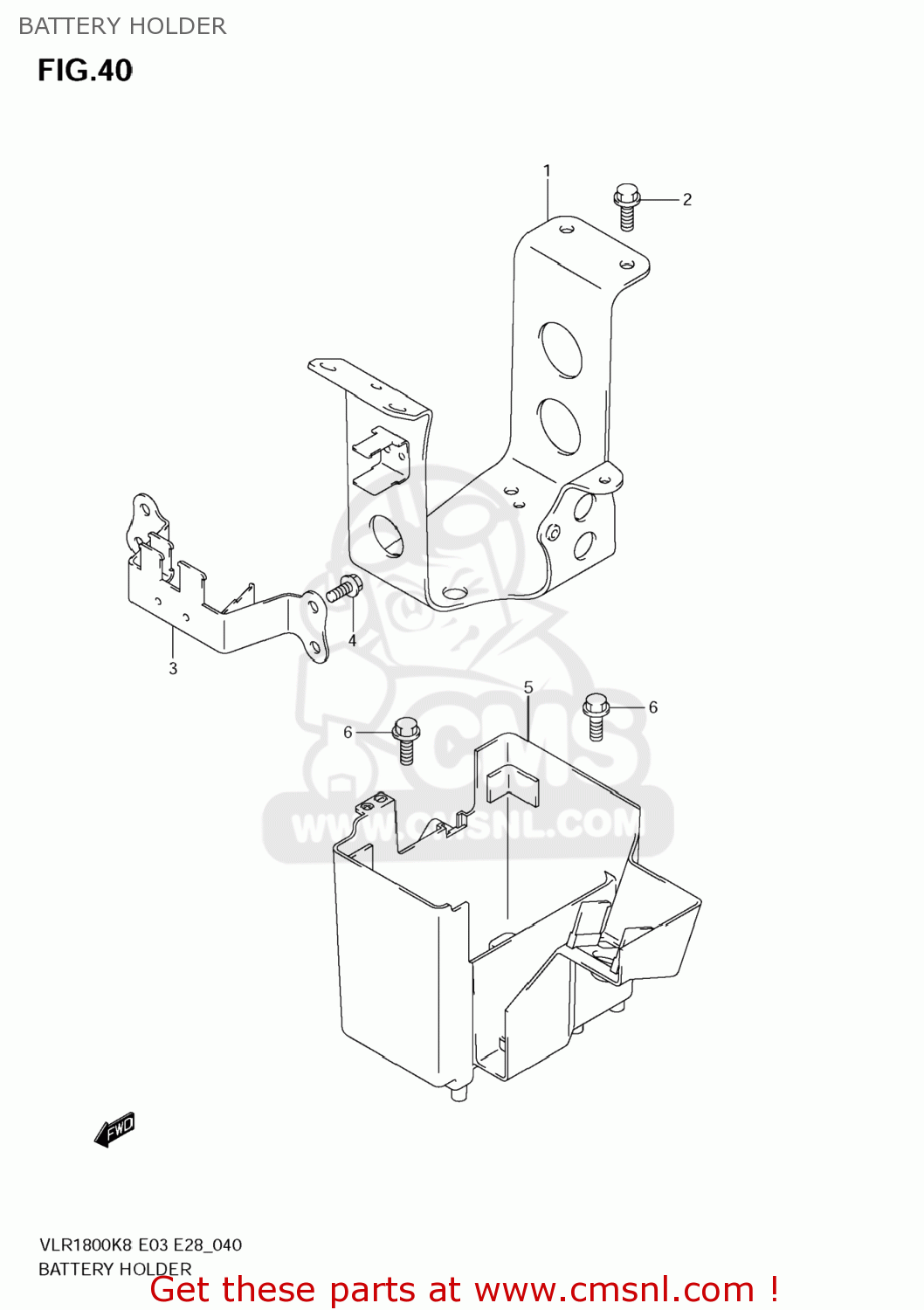

Battery holder diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

BATTERY HOLDER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

BATTERY HOLDER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4154022H00
ref: 1

HOLDER,BATTERY

€ 56.50

2

015500816B
ref: 2

BOLT

€ 3.00

3

4155022H00
ref: 3

HOLDER,ELECTRIC PARTS

€ 9.50

4

015500616B
ref: 4

BOLT

€ 2.50

5

4743122H00
ref: 5

HOLDER,BATTERY

€ 23.50

6

0911306001
ref: 6

BOLT(6X16)

€ 3.00
