FUEL PUMP

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

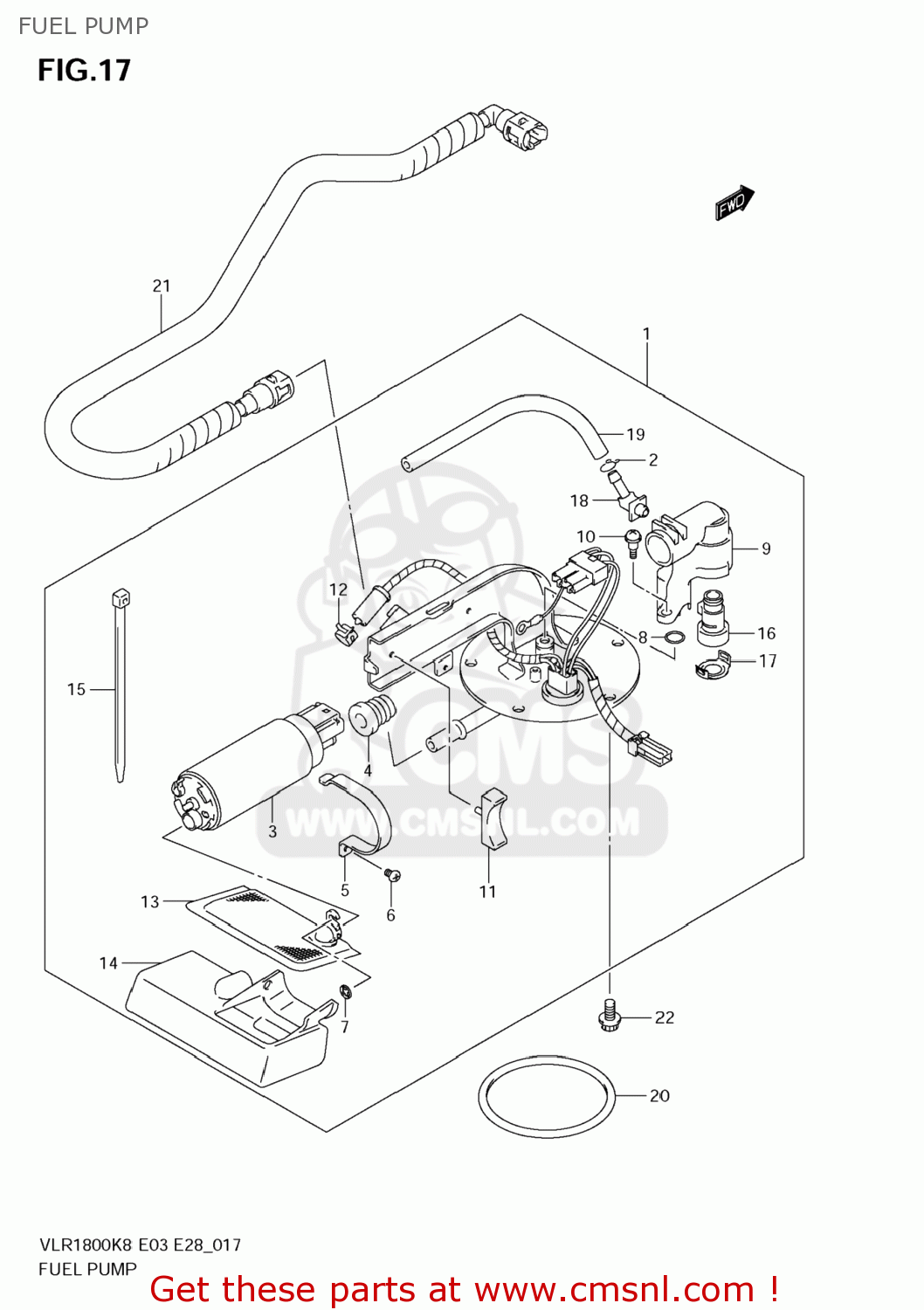

Fuel pump diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1510022H00
ref: 1

PUMP ASSY,FUEL

€ 743.50

1369324F00
ref: 2

CLIP

€ 2.00

1511048G00
ref: 3

PUMP,FUEL

€ 291.00

1511448G00
ref: 4

INSULATOR

€ 16.50

1511514G00
ref: 5

HOLDER

€ 8.50

1511648G00
ref: 6

SCREW

€ 3.50

1511914G00
ref: 7

PLATE

€ 3.50

1512548G00
ref: 8

O RING

€ 8.50

1513148G00
ref: 9

ADAPTER

€ 30.50

1513548G00
ref: 10

SCREW

€ 3.50

1514148G00
ref: 11

INSULATOR

€ 13.00

1517548G00
ref: 12

CLAMP

€ 4.00

1542022H00
ref: 13

FILTER

€ 50.50

1542522H00
ref: 14

COVER,FILTER

€ 60.00

1542648G00
ref: 15

BAND

€ 7.50

1561048G00
ref: 16

REGULATOR,PRESSURE

€ 123.00

1561348G00
ref: 17

CLIP

€ 8.00

1561448G00
ref: 18

JOINT

€ 26.50

1561548G00
ref: 19

TUBE

€ 15.50

1520135F00
ref: 20

O RING,FUEL PUMP

€ 26.00

1581022H00
ref: 21

HOSE,FUEL

€ 96.50

071200612A
ref: 22

BOLT

€ 3.50
