Buy Suzuki VLR Parts Online


SECONDARY DRIVE GEAR

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

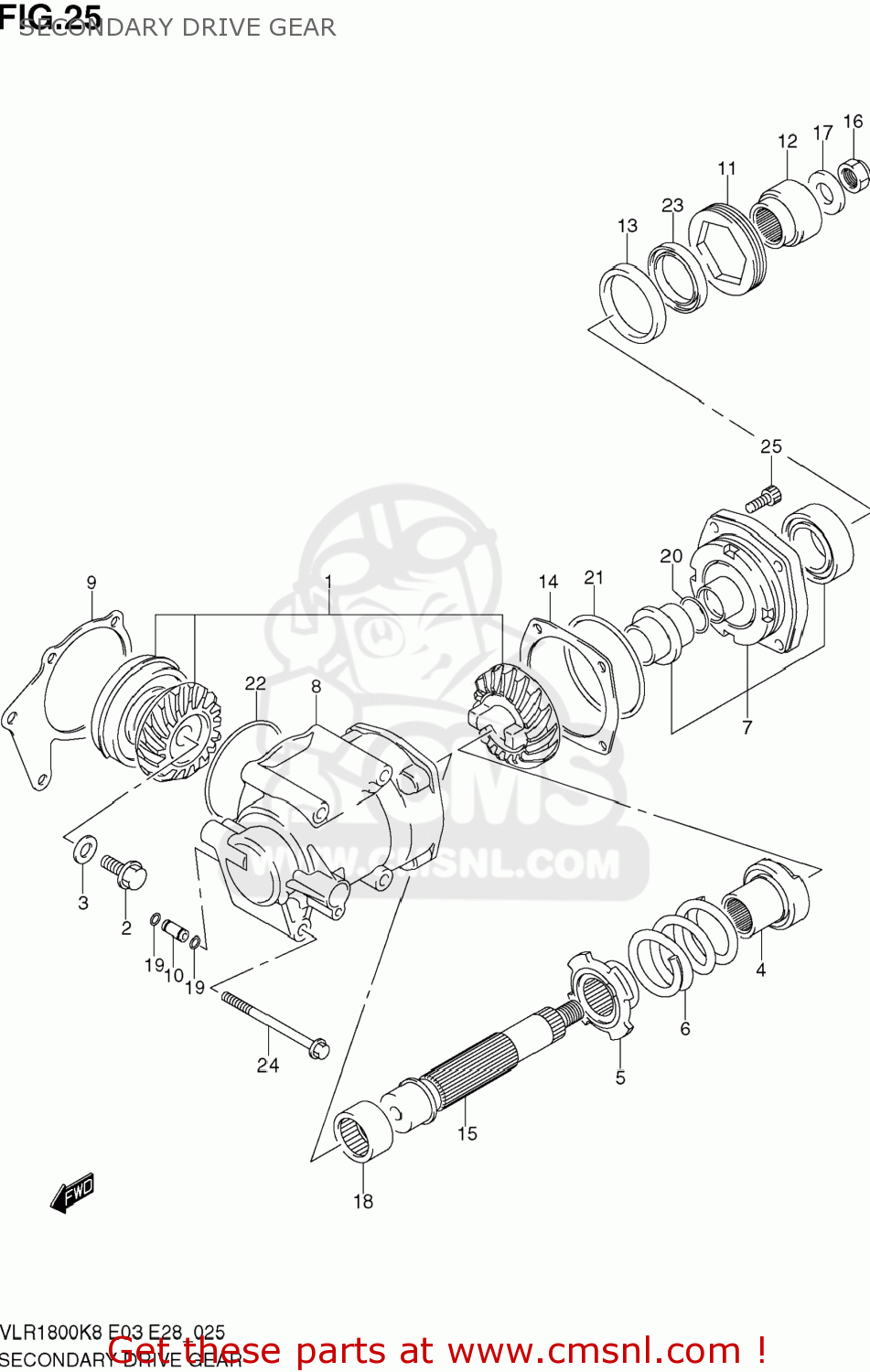

Secondary drive gear diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

SECONDARY DRIVE GEAR VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
SECONDARY DRIVE GEAR VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
SECONDARY DRIVE GEAR VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
2491048830
ref: 1
GEAR SET,SECONDARY
2491048830
€ 754.50
2
0910312084
ref: 2
BOLT(12X24)
0910312084
€ 5.50
3
0916012045
ref: 3
WASHER(12X35X2)
0916012045
€ 3.50
4
2492348G10
ref: 4
DOG,OUTPUT CAM
2492348G10
€ 69.50
5
2492448G10
ref: 5
STOPPER,CAM SPRING
2492448G10
€ 51.50
6
2492548G00
ref: 6
SPRING,SECONDARY DAMPER
€ 26.00
7
2492648820
ref: 7
STOPPER SECONDARY SET,DRIVEN
€ 301.50
8
2493148G20
ref: 8
CASE,SECONDARY GEAR
2493148G20
€ 346.50
9
2493548810
ref: 9
SHIM SET,SEC DRIVE
€ 53.00
9
2493548810
ref: 9
SHIM SET,SEC DRIVE
€ 53.00
9
2493548810
ref: 9
SHIM SET,SEC DRIVE
€ 53.00
10
2494026D00
ref: 10
PIPE,SECONDARY CASE OIL
2494026D00
€ 13.50
11
2494226D00
ref: 11
STOPPER,SEC DRIVEN BEARING
2494226D00
€ 37.00
12
2494348G00
ref: 12
COUPLING,SEC D
€ 66.00
13
2494448G00
ref: 13
HOUSING,OIL SEAL
2494448G00
€ 28.00
14
2494548810
ref: 14
SHIM SET,SECONDARY DRIVEN
2494548810
€ 58.00
14
2494548810
ref: 14
SHIM SET,SECONDARY DRIVEN
2494548810
€ 58.00
15
2496148G00
ref: 15
SHAFT,SECONDARY DRIVEN
2496148G00
€ 102.50
16
0915916003
ref: 16
NUT
0915916003
€ 3.50
17
0916016040
ref: 17
WASHER(16.5X36X4)
0916016040
€ 7.00
18
0926332012
ref: 18
BEARING(32X48X22)
0926332012
€ 62.50
19
0928006008
ref: 19
O RING(D:1.7,ID:6)
0928006008
€ 2.00
20
0928024010
ref: 20
O RING(D:2.4,ID:23.7)
0928024010
€ 5.50
21
0928078003
ref: 21
O RING(D:3.7,ID:76.5)
0928078003
€ 6.00
22
0928092003
ref: 22
O RING(D:2.4,ID:90.8)
0928092003
€ 12.00
23
0928338011
ref: 23
SEAL,OIL(38X54X6)
0928338011
€ 11.50
24
015500895A
ref: 24
BOLT
015500895A
€ 2.50
25
0910609002
ref: 25
BOLT(9X30)
0910609002
€ 6.00
