CYLINDER

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

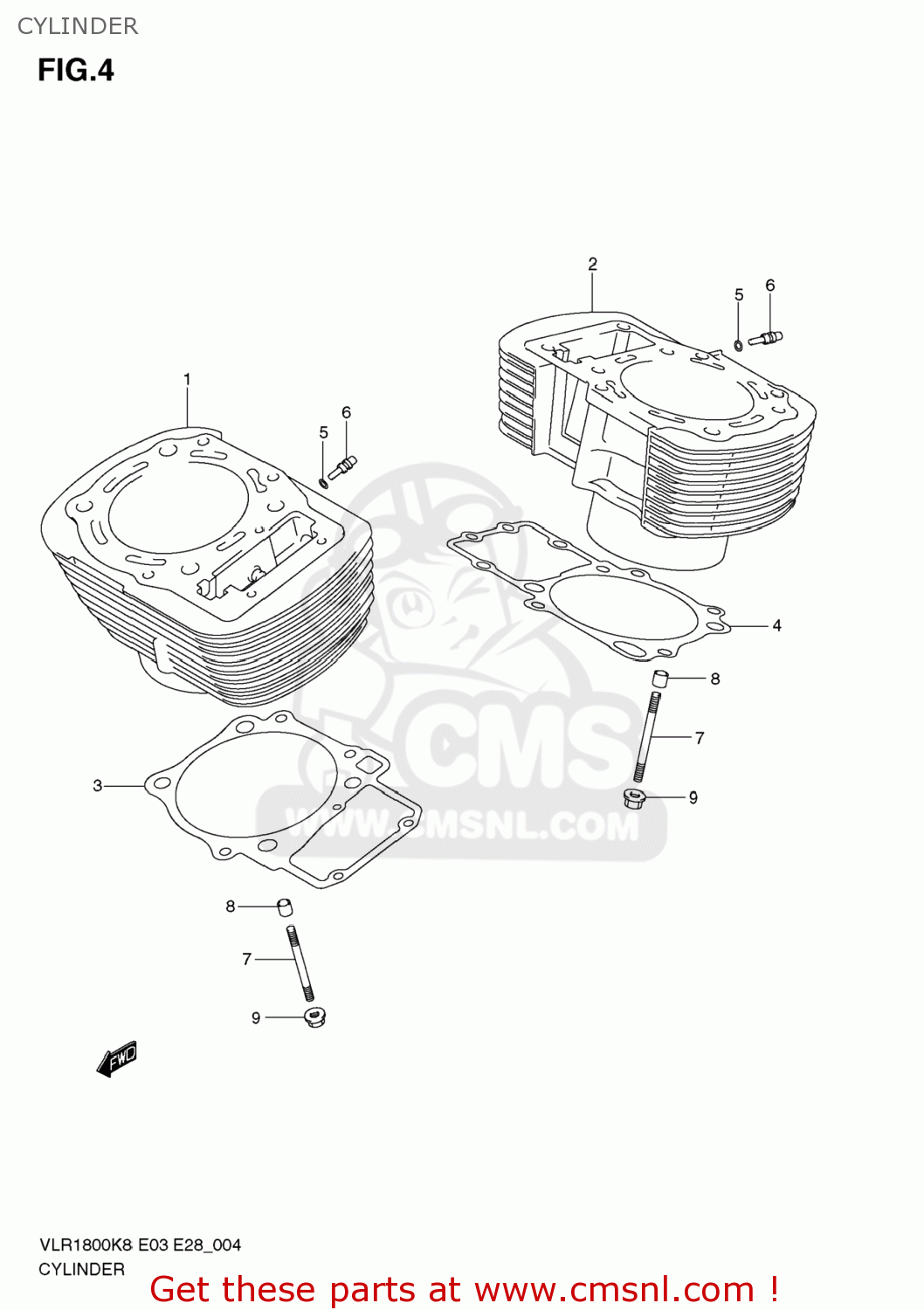

Cylinder diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

CYLINDER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

CYLINDER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1121148G000F0
ref: 1

CYLINDER,FR

€ 791.50

2

1122148G000F0
ref: 2

CYLINDER,RR

€ 791.50

3

1124148G10
ref: 3

GASKET,CYLINDER FR (NAS)

€ 16.00

4

1124248G00
ref: 4

GASKET,CYLINDER RR (NAS)

€ 14.00

5

0928004004
ref: 5

O RING(D:1.2,ID:4)

€ 2.00

6

0949380005
ref: 6

JET(8)

€ 12.00

7

014210665A
ref: 7

BOLT,STUD

€ 2.00

8

0421113189
ref: 8

PIN

€ 2.50

9

083193106A
ref: 9

NUT

€ 2.50
