FRONT DAMPER

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

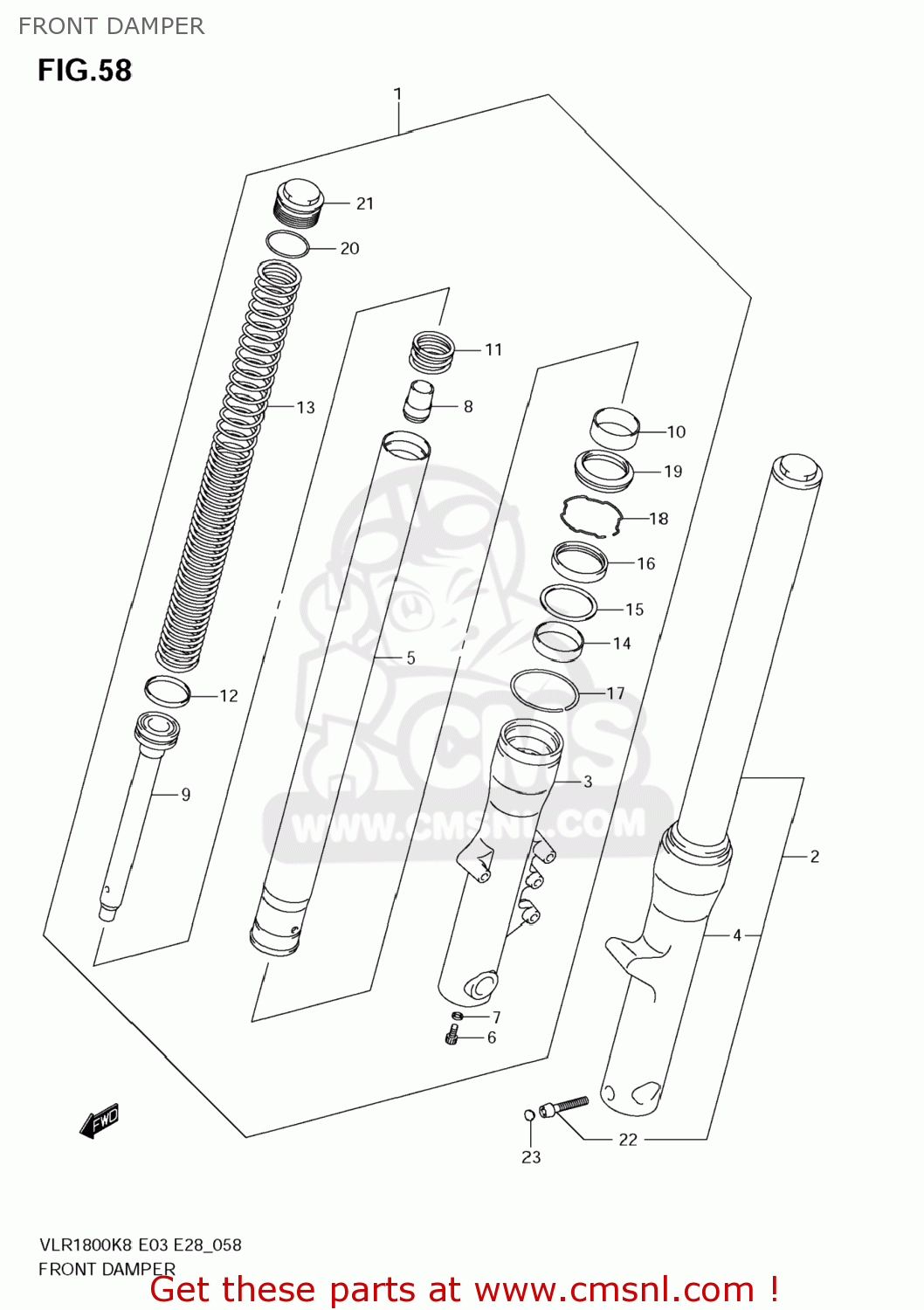

Front damper diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FRONT DAMPER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
FRONT DAMPER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
FRONT DAMPER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
5110322H00
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,153.50
2
5110422H00
ref: 2
DAMPER ASSY,FR FORK,L
5110422H00
€ 1,261.00
3
5113122H00
ref: 3
TUBE,OUTER,R
€ 579.00
4
5114122H00
ref: 4
TUBE,OUTER,L
€ 579.00
5
5111022H00
ref: 5
TUBE,INNER
€ 606.50
6
5114706F10
ref: 6
BOLT
5114706F10
€ 3.00
7
5114836011
ref: 7
GASKET (NAS)
5114836011
€ 4.00
8
5119522H00
ref: 8
PIECE,OIL LOCK
€ 12.00
9
5114622H00
ref: 9
CYLINDER
€ 65.00
10
5112136E80
ref: 10
BUSH,SLIDE
5112136E80
€ 23.50
11
5117722H00
ref: 11
SPRING,REBOUND
€ 8.00
12
5119629F20
ref: 12
RING,PISTON
€ 17.50
13
5117122H00
ref: 13
SPRING
€ 165.50
14
5116736E80
ref: 14
BUSH,GUIDE
5116736E80
€ 14.00
15
5115836E00
ref: 15
SPACER,SEAL
5115836E00
€ 5.00
16
5115336E60
ref: 16
SEAL,OIL
5115336E60
€ 17.00
17
5146922H00
ref: 17
GUIDE,CASE
5146922H00
€ 16.00
18
5116536E00
ref: 18
RING,STOPPER
5116536E00
€ 7.50
19
5157122H00
ref: 19
DUST SEAL
5157122H00
€ 31.50
20
5111736E00
ref: 20
O RING
5111736E00
€ 3.50
21
5112122H00
ref: 21
CAP
5112122H00
€ 91.50
22
071301040B
ref: 22
BOLT
071301040B
€ 3.50
23
0925008014
ref: 23
CAP(OD:12)
0925008014
€ 3.50
