HEADLAMP HOUSING

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

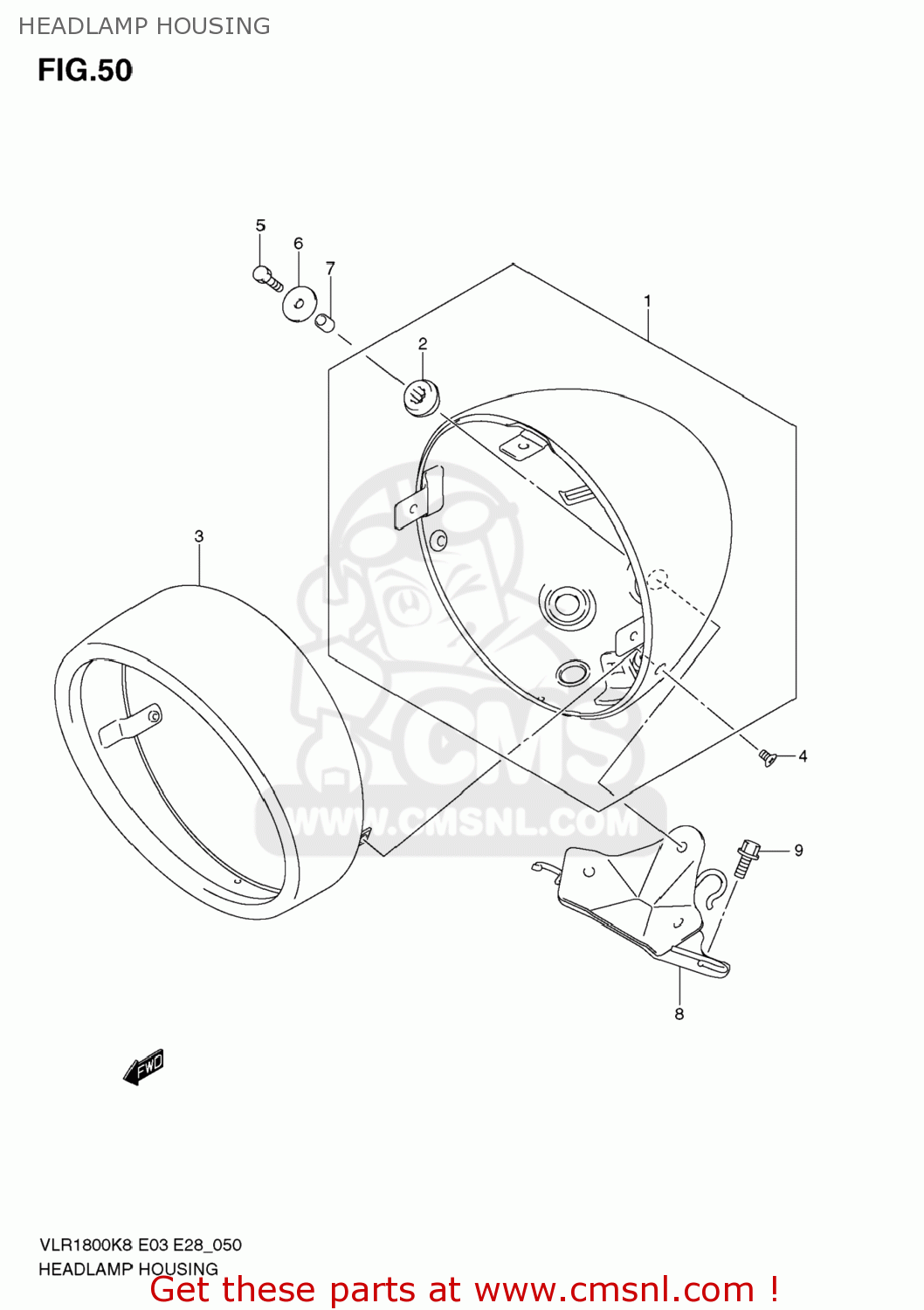

Headlamp housing diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

HEADLAMP HOUSING VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

HEADLAMP HOUSING VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

5180022H00
ref: 1

HOUSING ASSY,HEADLAMP

€ 458.00

2

0932009010
ref: 2

CUSHION

€ 2.50

3

5182022H00
ref: 3

COVER,HEADLAMP FR

€ 430.00

4

0912605007
ref: 4

SCREW(5X8)

€ 3.50

5

015000620A
ref: 5

BOLT

€ 2.00

6

0916006114
ref: 6

WASHER(6.5X24X1.2)

€ 2.00

7

0918006307
ref: 7

SPACER(6.5X9X10)

€ 3.00

8

5185022H00
ref: 8

BRACKET,HEADLAMP HOUSING

€ 52.00

9

015500820B
ref: 9

BOLT

€ 3.00
