TRANSMISSION

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

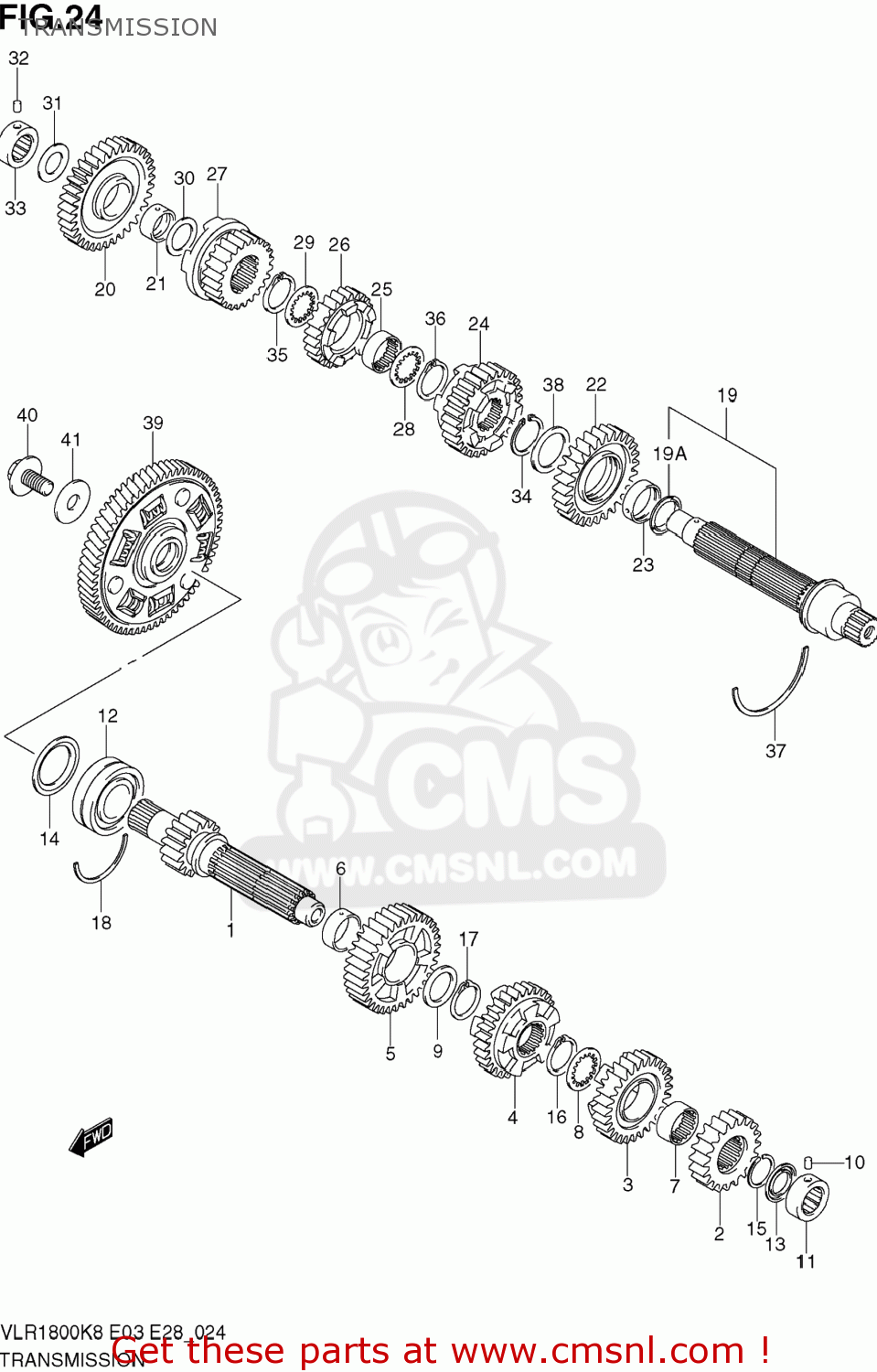

Transmission diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

TRANSMISSION VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
TRANSMISSION VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
TRANSMISSION VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
2412148G10
ref: 1
SHAFT,COUNTER
2412148G10
€ 212.50
2
2422148G10
ref: 2
GEAR,2ND DRIVE
2422148G10
€ 135.50
3
2423148G00
ref: 3
GEAR,3RD DRIVE
2423148G00
€ 160.50
4
2424148G00
ref: 4
GEAR,4TH DRIVE
€ 191.50
5
2425148G00
ref: 5
GEAR,5TH DRIVE
€ 126.50
6
2425224F10
ref: 6
BUSH,5TH DRIVE GEAR
2425224F10
€ 19.00
7
2426224F10
ref: 7
BUSH,6TH DRIVE GEAR
2426224F10
€ 19.00
8
0916727003
ref: 8
WASHER,LOCK
0916727003
€ 5.00
9
0918127014
ref: 9
SHIM(27X36X2.5)
0918127014
€ 6.00
10
0926106003
ref: 10
PIN(6X10)
0926106003
€ 1.50
11
0926320087
ref: 11
BEARING(20X34X13.5)
0926320087
€ 31.50
12
0926725012
ref: 12
BEARING(25X62X25.4)
0926725012
€ 92.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
14
0928534011
ref: 14
SEAL,OIL(34X55.5X4)
0928534011
€ 15.00
15
0938027004
ref: 15
CIRCLIP
0938027004
€ 3.50
16
0938027006
ref: 16
CIRCLIP
0938027006
€ 2.50
17
0938027006
ref: 17
CIRCLIP
0938027006
€ 2.50
18
0939062012
ref: 18
C RING
0939062012
€ 5.00
19
2413048G01
ref: 19
SHAFT,DRIVE
€ 220.50
19A
2413648G01
ref: 19A
RING,DRIVE SHAFT FRICTION
2413648G01
€ 26.00
20
2431148G00
ref: 20
GEAR,1ST DRIVEN
2431148G00
€ 129.50
21
2431224F10
ref: 21
BUSH,1ST DRIVEN GEAR
2431224F10
€ 19.00
22
2432148G01
ref: 22
GEAR,2ND DRIVEN(NT:28)
2432148G01
€ 190.00
23
2432248G00
ref: 23
BUSH,2ND DRIVEN GEAR
2432248G00
€ 18.00
24
2433148G00
ref: 24
GEAR,3RD DRIVEN
2433148G00
€ 204.50
25
2433224F10
ref: 25
BUSH,DRIVEN GEAR
2433224F10
€ 19.00
26
2434148G00
ref: 26
GEAR,4TH DRIVEN
€ 116.50
27
2435148G00
ref: 27
GEAR,5TH DRIVEN
€ 123.00
28
0916730008
ref: 28
WASHER,LOCK
0916730008
€ 5.50
29
0916730008
ref: 29
WASHER,LOCK
0916730008
€ 5.50
30
0918120251
ref: 30
SHIM(20X34X1)
0918120251
€ 3.00
31
0918124005
ref: 31
SHIM(24X34X1)
0918124005
€ 3.50
32
0926106003
ref: 32
PIN(6X10)
0926106003
€ 1.50
33
0926320087
ref: 33
BEARING(20X34X13.5)
0926320087
€ 31.50
34
0938030009
ref: 34
CIRCLIP
0938030009
€ 3.50
35
0938030009
ref: 35
CIRCLIP
0938030009
€ 3.50
36
0938030009
ref: 36
CIRCLIP
0938030009
€ 3.50
37
0939080004
ref: 37
C RING
0939080004
€ 7.00
38
0821130403
ref: 38
WASHER
0821130403
€ 2.50
39
2120022810
ref: 39
GEAR ASSY,PRIMA
€ 365.50
40
0910312084
ref: 40
BOLT(12X24)
0910312084
€ 5.50
41
0916012045
ref: 41
WASHER(12X35X2)
0916012045
€ 3.50
