STEERING STEM

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

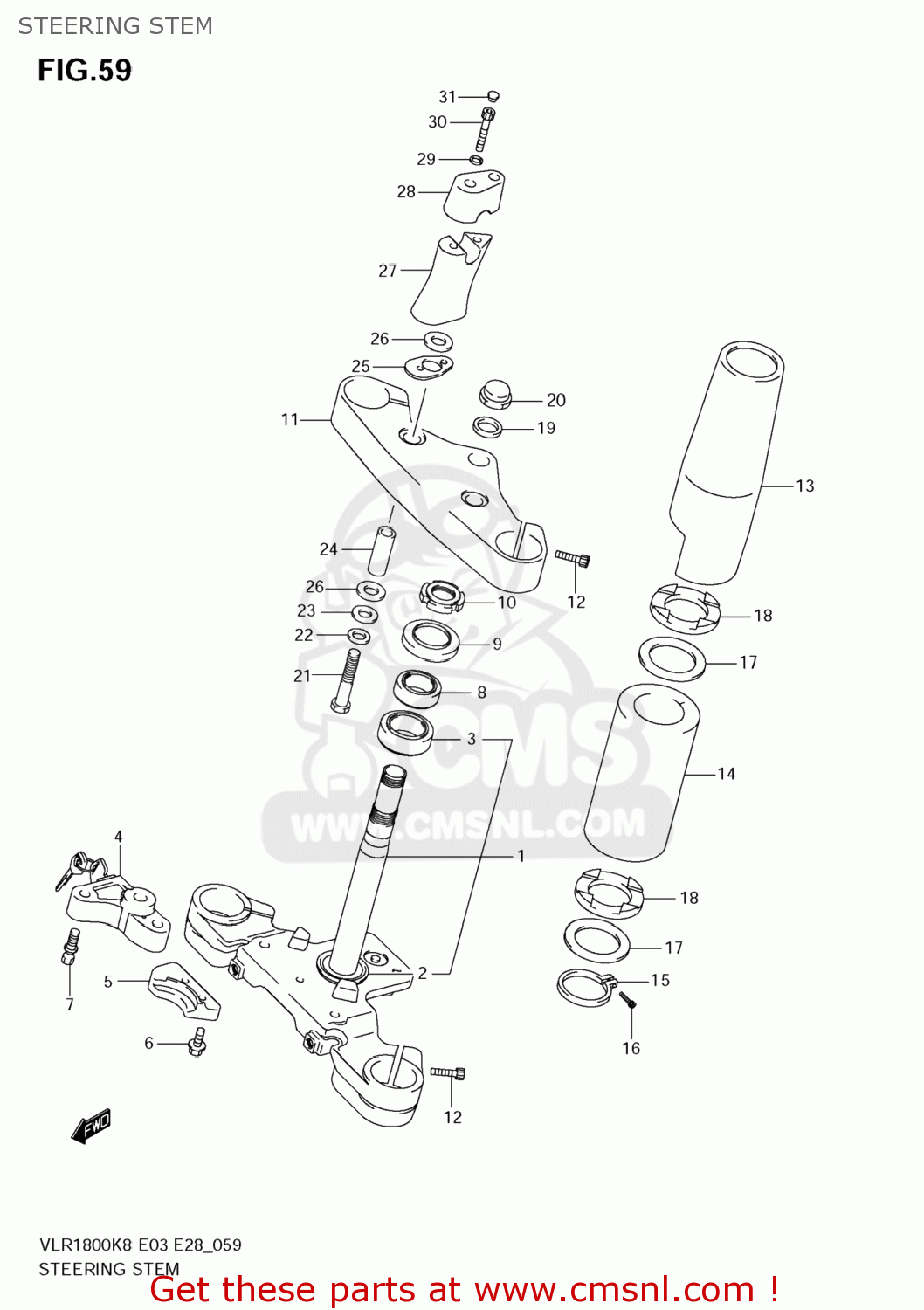

Steering stem diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

STEERING STEM VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
STEERING STEM VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
STEERING STEM VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
5141022H00
ref: 1
STEM,STEERING
€ 1,344.00
2
5164412C00
ref: 2
SEAL,STEERING LWR
5164412C00
€ 5.50
3
0926530020
ref: 3
BEARING(30X55X17)
0926530020
€ 45.50
4
5190022820
ref: 4
LOCK SET,STEERING
5190022820
€ 128.50
5
5192122H00
ref: 5
BRACKET,STEERING LOCK
5192122H00
€ 352.50
6
0910308288
ref: 6
BOLT(8X25)
0910308288
€ 2.50
7
5192548G00
ref: 7
SCREW,STEERING LOCK
5192548G00
€ 5.00
8
0926525038
ref: 8
BEARING(25X47X15)
0926525038
€ 49.00
9
5164340502
ref: 9
DUST SEAL,STEERING UPR
5164340502
€ 8.00
10
5163131F00
ref: 10
NUT,STEERING STEM
5163131F00
€ 8.00
11
5131122H00
ref: 11
BRACKET,FR FORK UPR
€ 590.50
12
5131222H00
ref: 12
BOLT
5131222H00
€ 3.00
13
5153022H00
ref: 13
COVER,UPR
5153022H00
€ 399.50
14
5146422H00
ref: 14
CASE,UNDER
€ 240.50
15
5146522H00
ref: 15
SPACER
5146522H00
€ 59.50
16
5146610F00
ref: 16
BOLT
€ 4.50
17
5146722H00
ref: 17
WASHER
€ 10.50
18
5146822H00
ref: 18
RUBBER,SEAT
€ 17.50
19
5135624B01
ref: 19
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
20
5135324B00
ref: 20
NUT,CAP
5135324B00
€ 21.50
21
5122622H00
ref: 21
BOLT
5122622H00
€ 22.50
22
5135441F20
ref: 22
WASHER
€ 6.00
23
5624541F20
ref: 23
SEAT,RUBBER
5624541F20
€ 3.50
24
5624041F20
ref: 24
DAMPER,RUBBER
5624041F20
€ 27.00
25
5624522H00
ref: 25
RUBBER,HANDLE LWR
5624522H00
€ 5.50
26
5135522H00
ref: 26
WASHER
5135522H00
€ 5.50
27
5622122H00
ref: 27
HOLDER,HANDLE LWR
5622122H00
€ 255.50
28
5621122H00
ref: 28
HOLDER,HANDLE UPR
5621122H00
€ 159.00
29
0916408015
ref: 29
WASHER
0916408015
€ 3.00
30
0713008407
ref: 30
BOLT
0713008407
€ 3.50
31
0925006011
ref: 31
CAP(OD:11)
0925006011
€ 2.50
