Buy Suzuki VLR Parts Online


RADIATOR HOSE

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

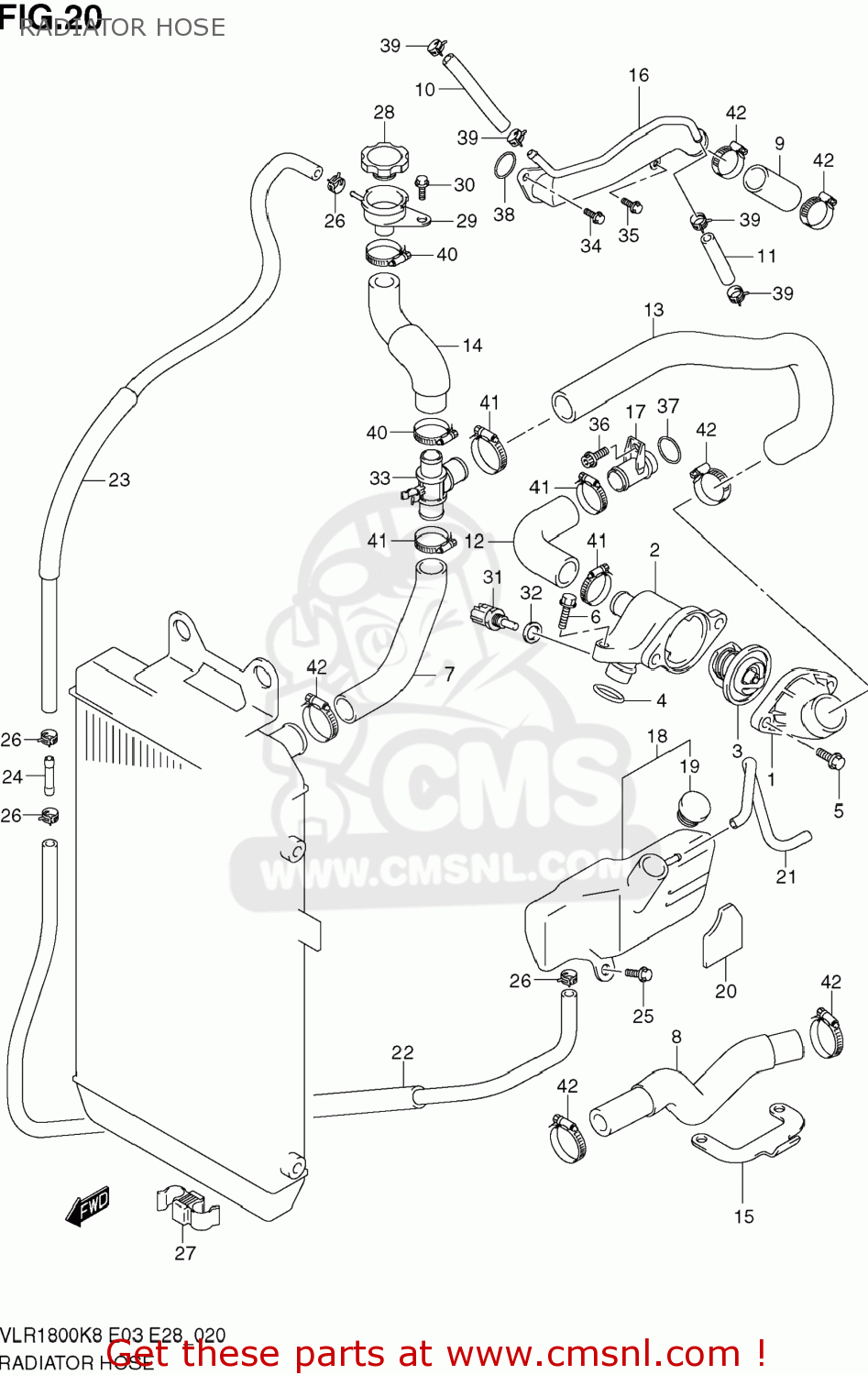

Radiator hose diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

RADIATOR HOSE VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
RADIATOR HOSE VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
RADIATOR HOSE VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1766148G10
ref: 1
COVER,THERMOSTAT
€ 18.50
2
1766248G00
ref: 2
CONNECTOR,THERMOSTAT INLET
1766248G00
€ 61.50
3
1767006G50
ref: 3
THERMOSTAT,WATER
1767006G50
€ 24.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
5
015500620A
ref: 5
BOLT
015500620A
€ 2.50
6
015470625A
ref: 6
BOLT
015470625A
€ 2.50
7
1785122H00
ref: 7
HOSE,RADIATOR INLET
1785122H00
€ 25.00
8
1785222H00
ref: 8
HOSE,RADIATOR OUTLET
€ 49.00
9
1785348G00
ref: 9
HOSE,CYLINDER INLET
1785348G00
€ 7.50
10
1785448G00
ref: 10
HOSE,WATER BYPASS UPR
1785448G00
€ 9.50
11
1785548G00
ref: 11
HOSE,WATER BYPASS LWR
1785548G00
€ 4.50
12
1785648G00
ref: 12
HOSE,RR CYLINDER HEAD OUTLET
1785648G00
€ 10.50
13
1785722H00
ref: 13
HOSE,THERMOSTAT OUTLET
€ 47.00
14
1785822H00
ref: 14
HOSE,CONDUCTION
€ 30.00
15
1785948G00
ref: 15
BRACKET,HOSE GUIDE
€ 7.00
16
1786048G00
ref: 16
PIPE,CYLINDER WATER INLET
1786048G00
€ 110.50
17
1789006G20
ref: 17
UNION,CONNECTOR HOSE
1789006G20
€ 9.50
18
1791022H00
ref: 18
TANK ASSY,RESERVOIR
1791022H00
€ 115.00
19
1793102FA0
ref: 19
CAP,RESERVOIR TANK
1793102FA0
€ 4.50
20
1791222H00
ref: 20
CUSHION,RESERVOIR TANK
€ 3.00
21
1798222H00
ref: 21
HOSE,RESERVOIR TANK OVFL
€ 9.00
22
1798122H00
ref: 22
HOSE,RESERVOIR TANK INLET NO.1
€ 26.00
23
1798122H10
ref: 23
HOSE,RESERVOIR TANK INLET NO.2
€ 28.00
24
0936406005
ref: 24
UNION
0936406005
€ 4.00
25
0911106085
ref: 25
BOLT(6X12)
0911106085
€ 4.50
26
0940108411
ref: 26
CLIP
0940108411
€ 3.00
27
0940800224
ref: 27
CLAMP
€ 3.00
28
1773012C30
ref: 28
CAP,RADIATOR
1773012C30
€ 33.50
29
1779124D00
ref: 29
CONDUCTION,RADIATOR
1779124D00
€ 37.50
30
015500620A
ref: 30
BOLT
015500620A
€ 2.50
31
1365049X00
ref: 31
SENSOR,TEMP
1365049X00
€ 73.00
32
0916812017
ref: 32
GASKET(12X17X1) (NAS)
0916812017
€ 2.00
33
1789148G00
ref: 33
JOINT,3 WAY
€ 7.00
34
0910306274
ref: 34
BOLT(6X16)
0910306274
€ 2.00
35
0910306280
ref: 35
BOLT(6X12)
0910306280
€ 2.00
36
071300612A
ref: 36
BOLT
071300612A
€ 2.50
37
0928018009
ref: 37
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
38
0928026005
ref: 38
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
39
0940112409
ref: 39
CLAMP
0940112409
€ 3.00
40
0940228513
ref: 40
CLAMP
0940228513
€ 6.50
41
0940232512
ref: 41
CLAMP
0940232512
€ 9.00
42
0940238512
ref: 42
CLAMP
0940238512
€ 9.50
