FRONT MASTER CYLINDER

VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

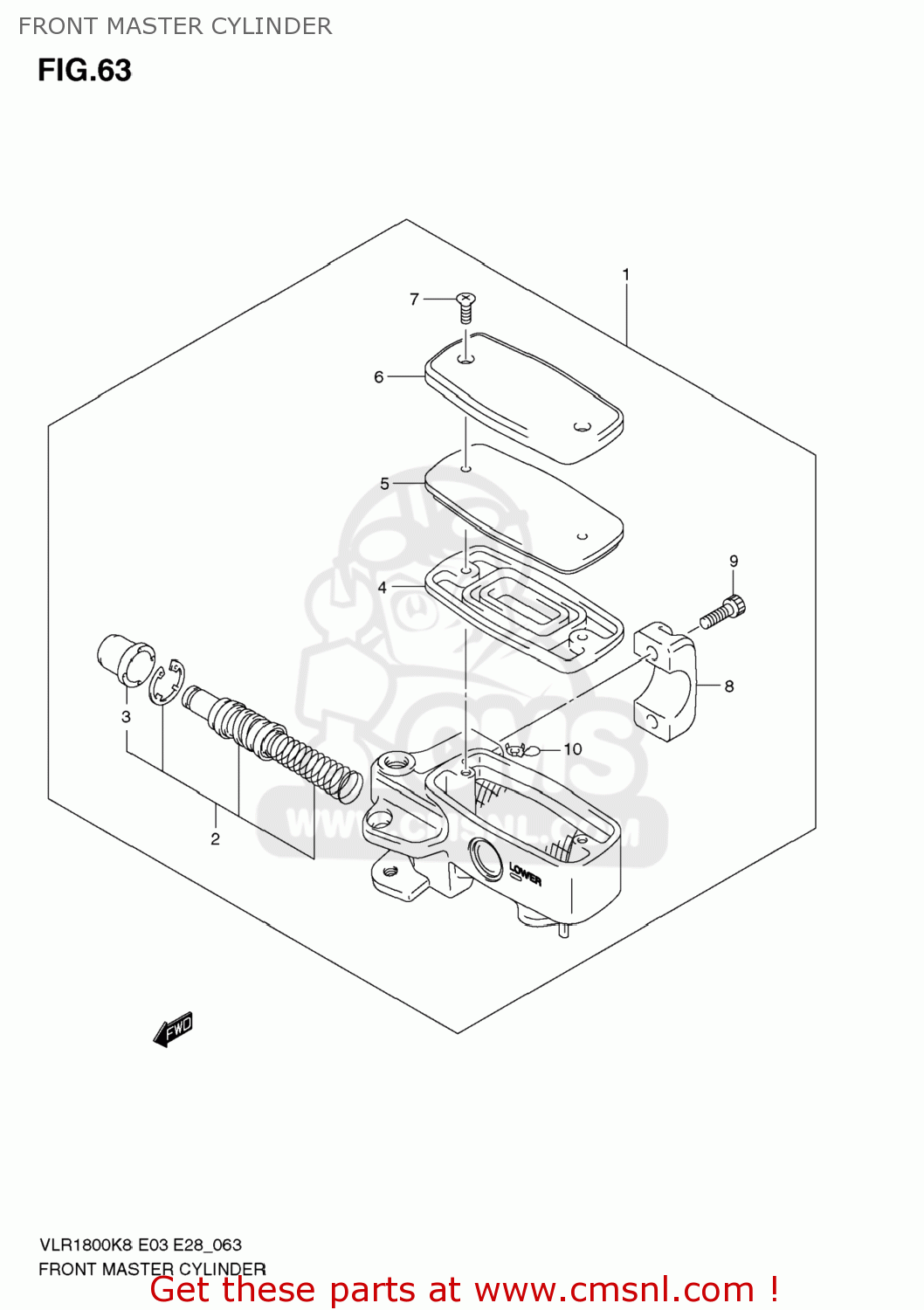

Front master cylinder diagram VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FRONT MASTER CYLINDER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

FRONT MASTER CYLINDER VLR1800T BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

5960010FC1
ref: 1

CYLINDER ASSY,FR MASTER

€ 361.50

2

5960045850
ref: 2

PISTON & CUP SET

€ 38.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966710F00
ref: 4

DIAPHRAGM

€ 7.00

5

5743710F00
ref: 5

PLATE,DIAPHRAGM

€ 13.00

6

5966910F10
ref: 6

CAP

€ 45.50

7

0212204127
ref: 7

SCREW

€ 2.00

8

5967110F00
ref: 8

HOLDER

€ 30.50

9

0713006207
ref: 9

BOLT

€ 3.50

10

5966432F00
ref: 10

PROTECTOR

€ 7.50
