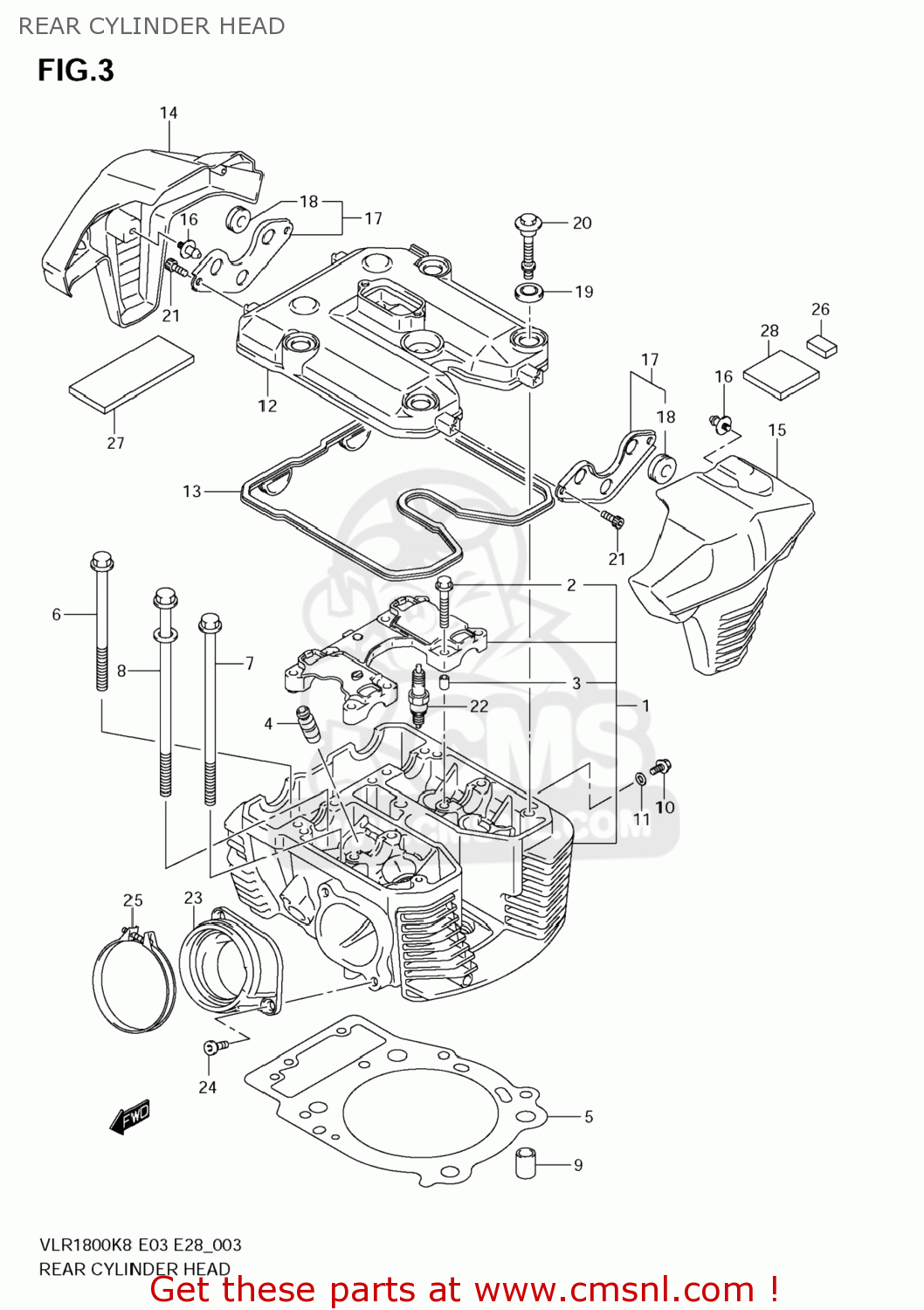

REAR CYLINDER HEAD

ref

part #

description

quantity

1

1110348G10
ref: 1

HEAD ASSY,CYLINDER RR

€ 1,370.50

2

0910306026
ref: 2

BOLT(6X39)

€ 2.00

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

1111565J00001
ref: 4

GUIDE,VALVE

€ 15.00

5

1114248G00
ref: 5

GASKET,CYLINDER HEAD RR (NAS)

€ 31.50

6

0910308305
ref: 6

BOLT(8X140)

€ 11.00

7

0910308415
ref: 7

BOLT(8X180)

€ 7.00

8

0910310396
ref: 8

BOLT(10X19)

€ 17.50

9

0421113189
ref: 9

PIN

€ 2.50

10

0910306222
ref: 10

BOLT(6X12)

€ 2.00

11

0916806023
ref: 11

GASKET(5.8X13X1.2) (NAS)

€ 2.00

12

1117048G00
ref: 12

COVER,CYLINDER HEAD

€ 220.00

13

1117348G00
ref: 13

GASKET,CYL HEAD COVER (NAS)

€ 22.50

14

1117448G10
ref: 14

CAP,CYLINDER HEAD COVER NO.1

€ 423.00

15

1117548G10
ref: 15

CAP,CYLINDER HEAD COVER NO.2

€ 424.50

16

1117648G00
ref: 16

BOLT,HEAD COVER CAP

€ 14.50

17

1118048G20
ref: 17

BRACKET,HEAD COVER CAP

€ 16.50

18

1118322H00
ref: 18

CUSHION,CAP

€ 19.00

19

1119213E00
ref: 19

CUSHION,HEAD COVER BOLT

€ 4.50

20

0911106091
ref: 20

BOLT(6X52)

€ 13.50

21

071300612A
ref: 21

BOLT

€ 2.50

22-1

0948200414
ref: 22-1

PLUG,SPARK(CR7EK)

€ 12.50

22-2

0948200415
ref: 22-2

PLUG,SPARK(U22ETR)

€ 13.50

22-3

0948200410
ref: 22-3

PLUG,SPARK(CR9EK)

€ 10.50

22-4

0948200411
ref: 22-4
09482-00459

PLUG,SPARK(U27ETR)

€ 8.50

22-5

0948200412
ref: 22-5

PLUG,SPARK(CR8EK)

€ 11.00

22-6

0948200413
ref: 22-6

PLUG,SPARK(U24ETR)

€ 11.00

23

1310122H00
ref: 23

PIPE ASSY,INTAKE

€ 93.00

24

0912006008
ref: 24

BOLT(6X20.5)

€ 2.50

25

1317022H00
ref: 25

CLAMP,INTAKE PIPE

€ 5.50

26

1117748G00
ref: 26

CUSHION,HEAD COVER CAP

€ 2.50

27

1117722H00
ref: 27

CUSHION,HEAD COVER CAP

€ 4.50

28

3344241F00
ref: 28

CUSHION,HIGH TENSION CORD

€ 3.50
