BATTERY

DL650A VSTROM 2012 (L2) USA (E03)

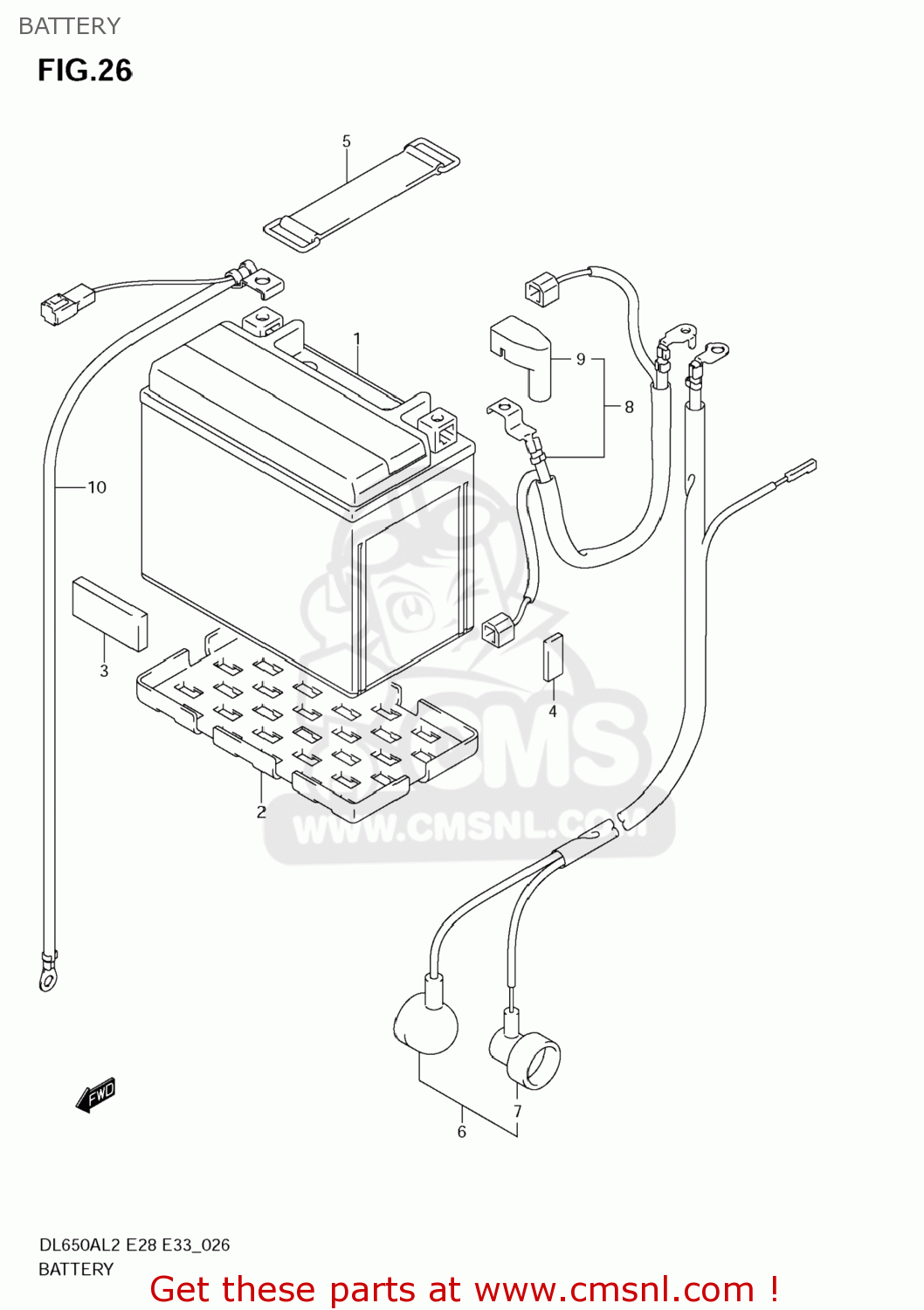

Battery diagram DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

3361048E21
ref: 1

BATTERY(FTX12-BS,12V10.5AH)

€ 97.50

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3365208420
ref: 3
33651-37000

PROTECTOR,BATTERY(70X100X6)

€ 6.00

4454310G00
ref: 4

CUSHION,FUEL TANK NO.2

€ 4.50

0946200007
ref: 5

BAND

€ 5.00

3381027G20
ref: 6

WIRE,STARTER MOTOR LEAD

€ 32.00

3661843410
ref: 7

CAP,OIL PRESSURE SWITCH

€ 2.50

3382027G10
ref: 8

WIRE,BATTERY PLUS LEAD

€ 46.00

3362427G00
ref: 9

CAP,BATTERY PLUS LEAD

€ 6.50

3386027G10
ref: 10

WIRE,BATTERY MINUS LEAD

€ 34.00
