STARTING MOTOR

DL650A VSTROM 2012 (L2) USA (E03)

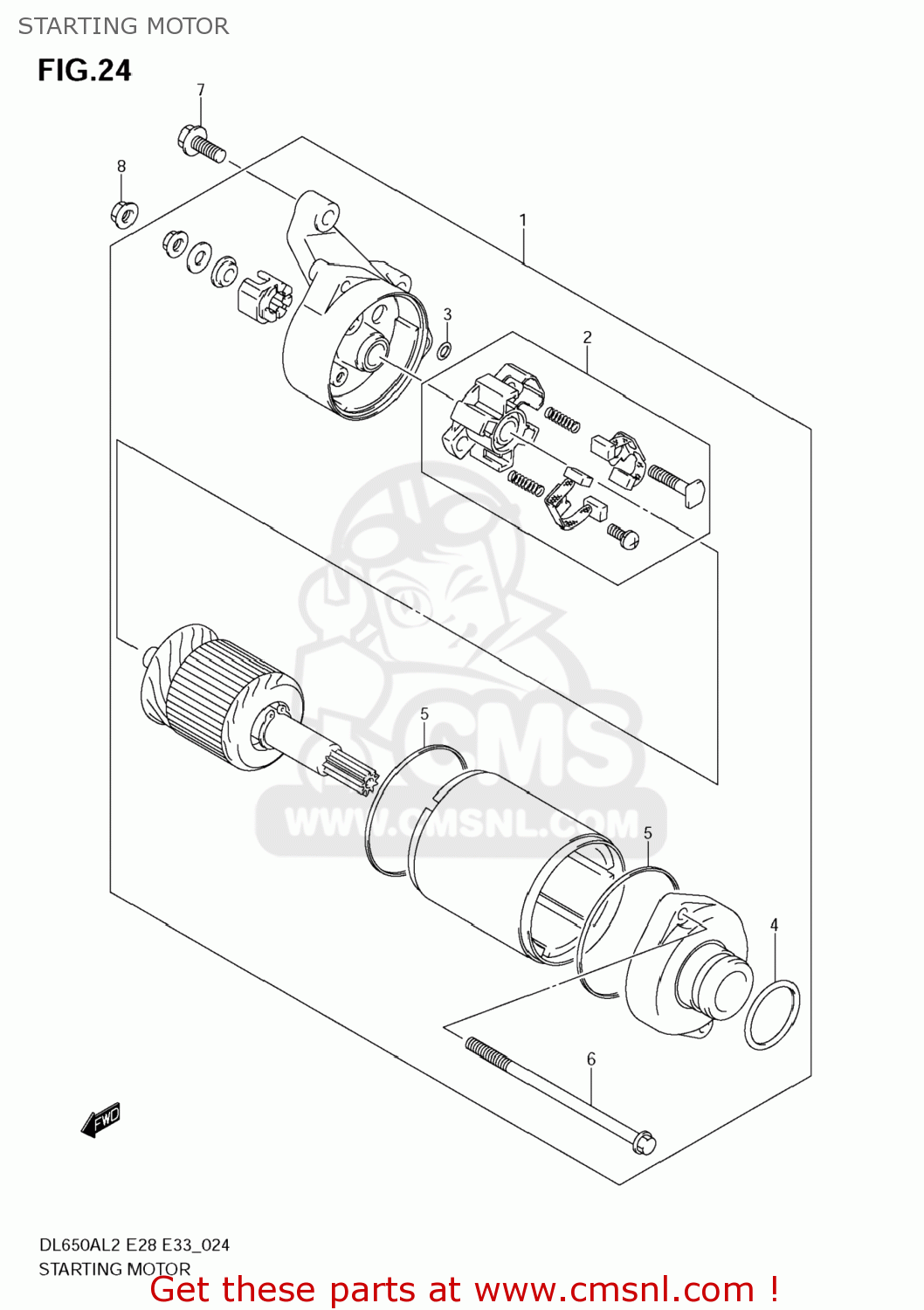

Starting motor diagram DL650A VSTROM 2012 (L2) USA (E03)

STARTING MOTOR DL650A VSTROM 2012 (L2) USA (E03)

STARTING MOTOR DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110019F10
ref: 1

MOTOR ASSY,STARTING

€ 457.50

2

3113218H00
ref: 2

BRUSH HOLDER SET

€ 32.50

3

3114349040
ref: 3

O RING

€ 3.00

4

3115698E00
ref: 4

O RING

€ 3.00

5

3126438F10
ref: 5

SQUARE RING

€ 4.00

6

3128019F10
ref: 6

SET,BOLT

€ 10.00

7

0910306212
ref: 7

BOLT(6X25)

€ 2.50

8

083613506A
ref: 8

NUT

€ 2.00
