FRONT BRAKE HOSE

DL650A VSTROM 2012 (L2) USA (E03)

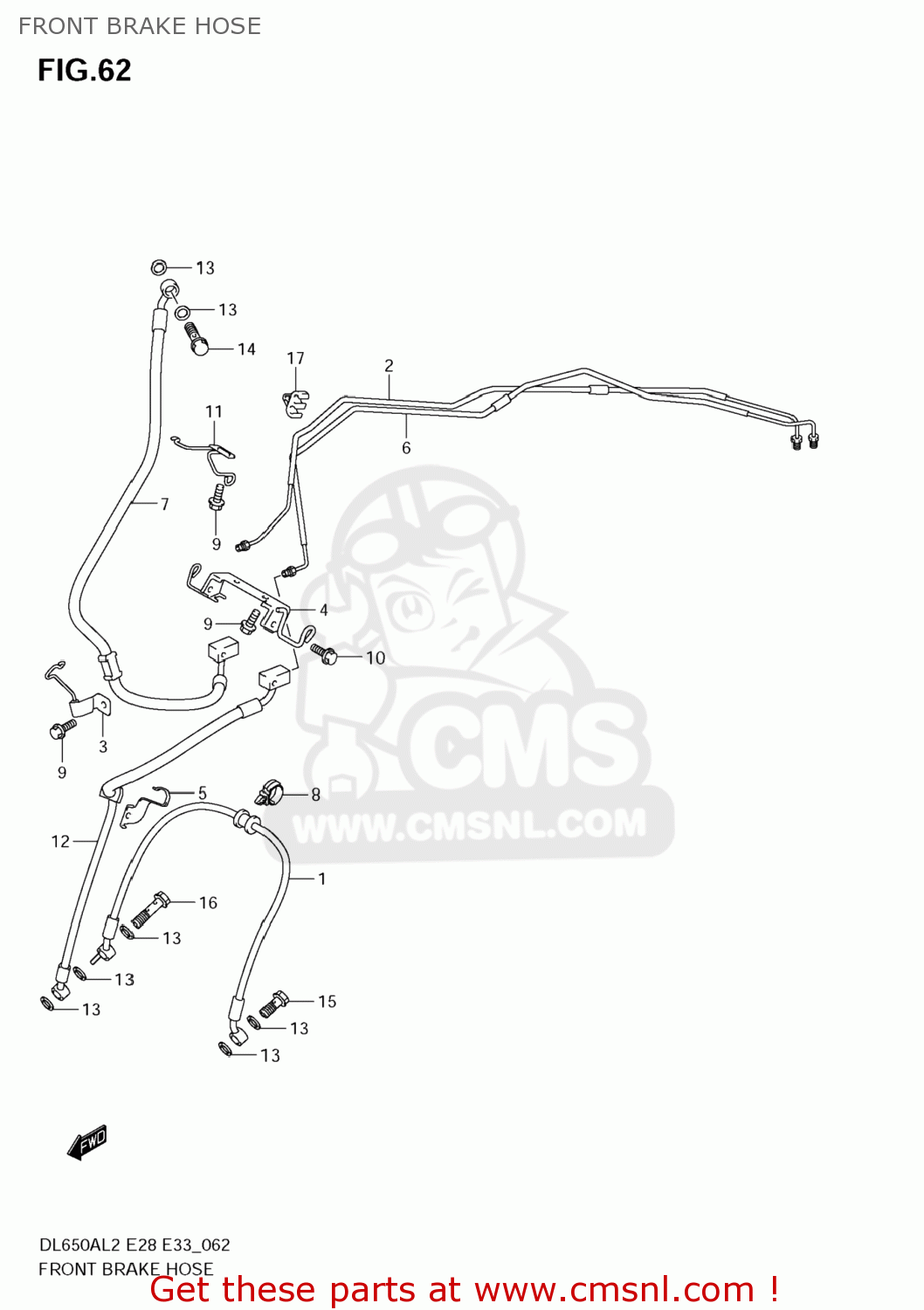

Front brake hose diagram DL650A VSTROM 2012 (L2) USA (E03)

FRONT BRAKE HOSE DL650A VSTROM 2012 (L2) USA (E03)

FRONT BRAKE HOSE DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5924011J00
ref: 1

HOSE,FR BRAKE NO.2

€ 77.00

2

5925011J00
ref: 2

PIPE,FR BRAKE NO.1

€ 25.50

3

5926006G10
ref: 3

CLAMP,FR BRAKE HOSE

€ 9.00

4

5926011J00
ref: 4

CLAMP,FR BRAKE HOSE NO.2

€ 18.50

5

5926811J00
ref: 5

CLAMP,FR BRAKE HOSE,R

€ 6.50

6

5945011J00
ref: 6

PIPE,FR BRAKE NO.2

€ 25.50

7

5948011J00
ref: 7

HOSE,FR BRAKE NO.1

€ 79.50

8

0940316412
ref: 8

CLAMP

€ 4.00

9

015470612A
ref: 9

BOLT

€ 2.00

10

015470616A
ref: 10

BOLT

€ 2.00

11

5954011J00
ref: 11

GUIDE,FR BRAKE HOSE

€ 13.00

12

5956011J00
ref: 12

HOSE,FR BRAKE NO.3

€ 66.50

13

0916110009
ref: 13

WASHER(10X15X1.5)

€ 2.00

14

0936010062
ref: 14

BOLT UNION

€ 5.00

15

0936010062
ref: 15

BOLT UNION

€ 5.00

16

0936010064
ref: 16

BOLT UNION

€ 5.00

17

0940307334
ref: 17

CLAMP

€ 3.00
