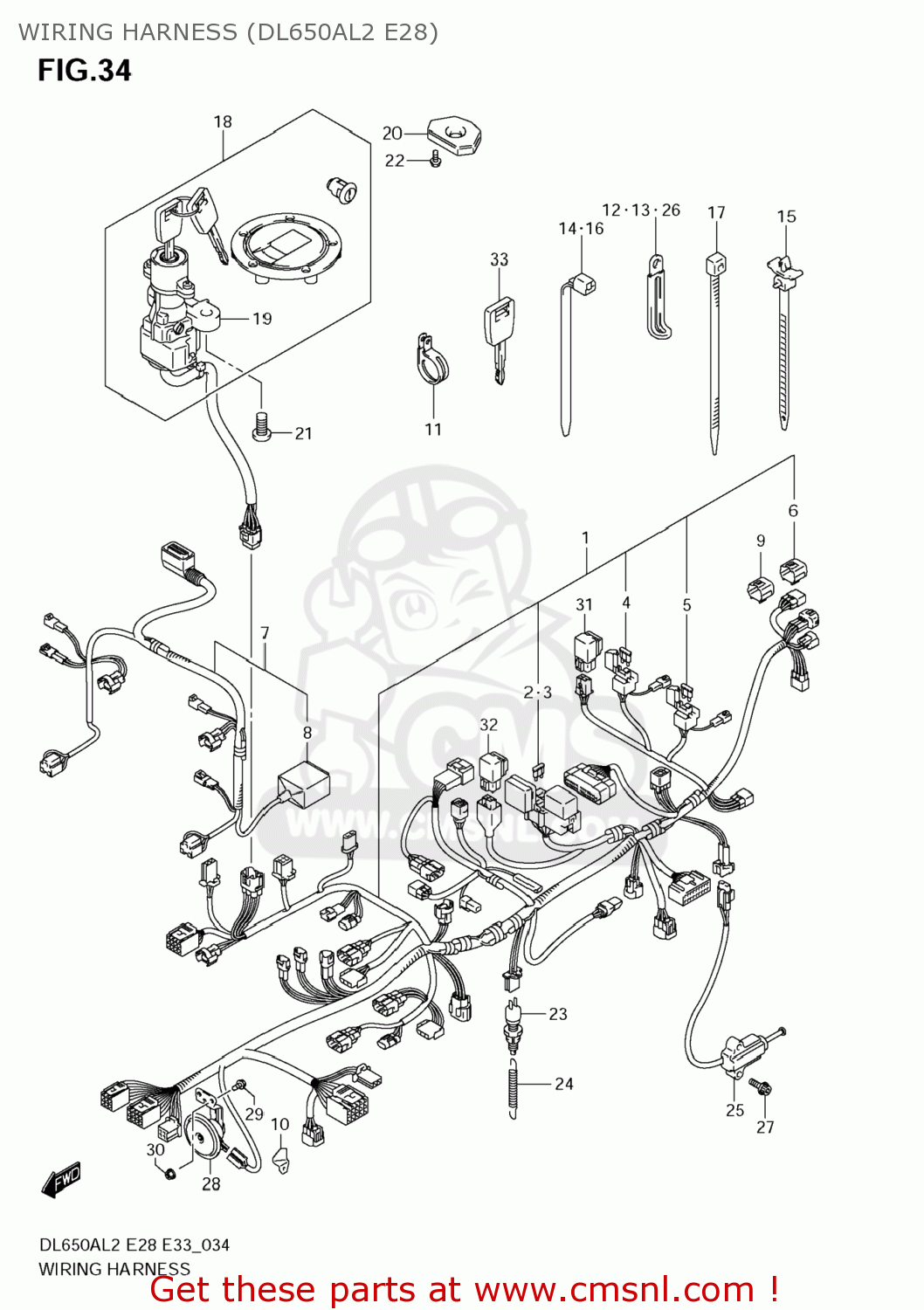

WIRING HARNESS (DL650AL2 E28)

ref

part #

description

quantity

1

3661011J80
ref: 1

HARNESS,WIRING NO.1

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

0948115101
ref: 4

FUSE(15A)

€ 1.50

5

0948125103
ref: 5

FUSE(25A)

€ 2.50

6

3665406J10
ref: 6

CAP,CO ADJUST

€ 13.00

7

3662011J00
ref: 7

HARNESS,WIRING NO.2

€ 260.00

8

3661847H00
ref: 8

COVER,CONNECTOR

€ 13.00

9

3665406J00
ref: 9

CAP,TS

€ 8.50

10

3671111J00
ref: 10

GUIDE,WIRING HARNESS

€ 7.00

11

0940326401
ref: 11

CLAMP

€ 3.50

12

0940406429
ref: 12

CLAMP(L:45)

€ 2.50

13

0940406433
ref: 13

CLAMP(L:80)

€ 3.00

14

0940714403
ref: 14

CLAMP(L:125)

€ 2.50

15

0940714408
ref: 15
09407-17402

CLAMP(L:120)

€ 5.00

16

0940718402
ref: 16

CLAMP(L:165)

€ 2.50

17

0940714407
ref: 17

CLAMP(L:145)

€ 4.00

18

3700011850
ref: 18

LOCK SET

€ 0.00

19

3710011J10
ref: 19

LOCK ASSY,STEERING

€ 136.00

20

3718015H00
ref: 20

COVER,STEERING LOCK

€ 28.00

21

0913908016
ref: 21

BOLT(8X20)

€ 3.50

22

015470512B
ref: 22

BOLT

€ 2.00

23

3774045D00
ref: 23
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

24

0944306012
ref: 24

SPRING

€ 3.00

25

3784006G00
ref: 25

SWITCH ASSY,SIDE STAND

€ 67.00

26

0940406429
ref: 26

CLAMP(L:45)

€ 2.50

27

015500616B
ref: 27

BOLT

€ 2.50

28

3850011J00
ref: 28

HORN ASSY

€ 53.50

29

0911806017
ref: 29

BOLT(6X16)

€ 1.50

30

083161006B
ref: 30

NUT

€ 2.50

31

3874024X50
ref: 31

RELAY ASSY

€ 37.50

32

3874024X50
ref: 32

RELAY ASSY

€ 37.50

33

3714611J00
ref: 33

KEY,BLANK

€ 88.50

all assemblies
