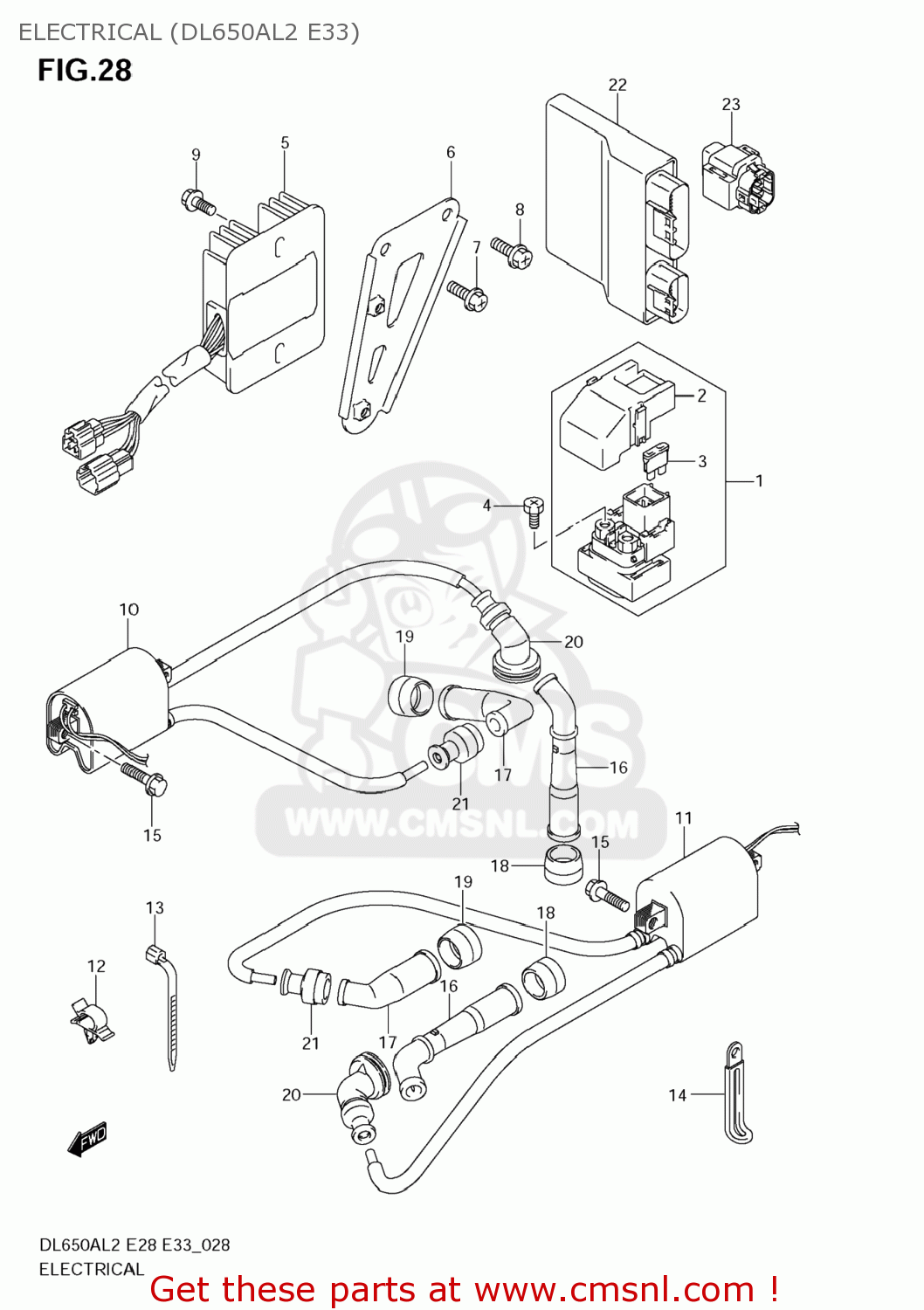

ELECTRICAL (DL650AL2 E33)

ref

part #

description

quantity

1

3180006G00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.50

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280047H00
ref: 5

RECTIFIER ASSY

€ 268.50

6

3283011J00
ref: 6

BRACKET,RECT FTG

€ 8.50

7

021620616A
ref: 7
02162-0616B

SCREW

€ 1.50

8

021620610A
ref: 8

SCREW

€ 2.00

9

021620616A
ref: 9
02162-0616B

SCREW

€ 1.50

10

3341027G00
ref: 10

COIL ASSY,IGNITION FR

€ 113.00

11

3342027G00
ref: 11

COIL ASSY,IGNITION RR

€ 94.00

12

0940310319
ref: 12

CLAMP

€ 2.50

13

0940718402
ref: 13

CLAMP(L:165)

€ 2.50

14

0940406429
ref: 14

CLAMP(L:45)

€ 2.50

15

015470625A
ref: 15

BOLT

€ 2.50

16

3351017G00
ref: 16

CAP ASSY,SPARK PLUG

€ 28.50

17

3351020E00
ref: 17

CAP ASSY,SPARK PLUG

€ 22.50

18

3354123E10
ref: 18

SEAL,SPARK PLUG

€ 5.00

19

3354147D00
ref: 19

SEAL,SPARK PLUG

€ 7.00

20

3354217G01
ref: 20

SEAL,HIGH TENSION CORD CTR

€ 5.50

21

3354238B00
ref: 21

SEAL,HIGH TENSION CORD

€ 4.50

22

3292011J20
ref: 22

CONTROL UNIT,FI

€ 882.00

23

3396027G00
ref: 23

SENSOR ASSY,FUEL CUT

€ 72.00

all assemblies
