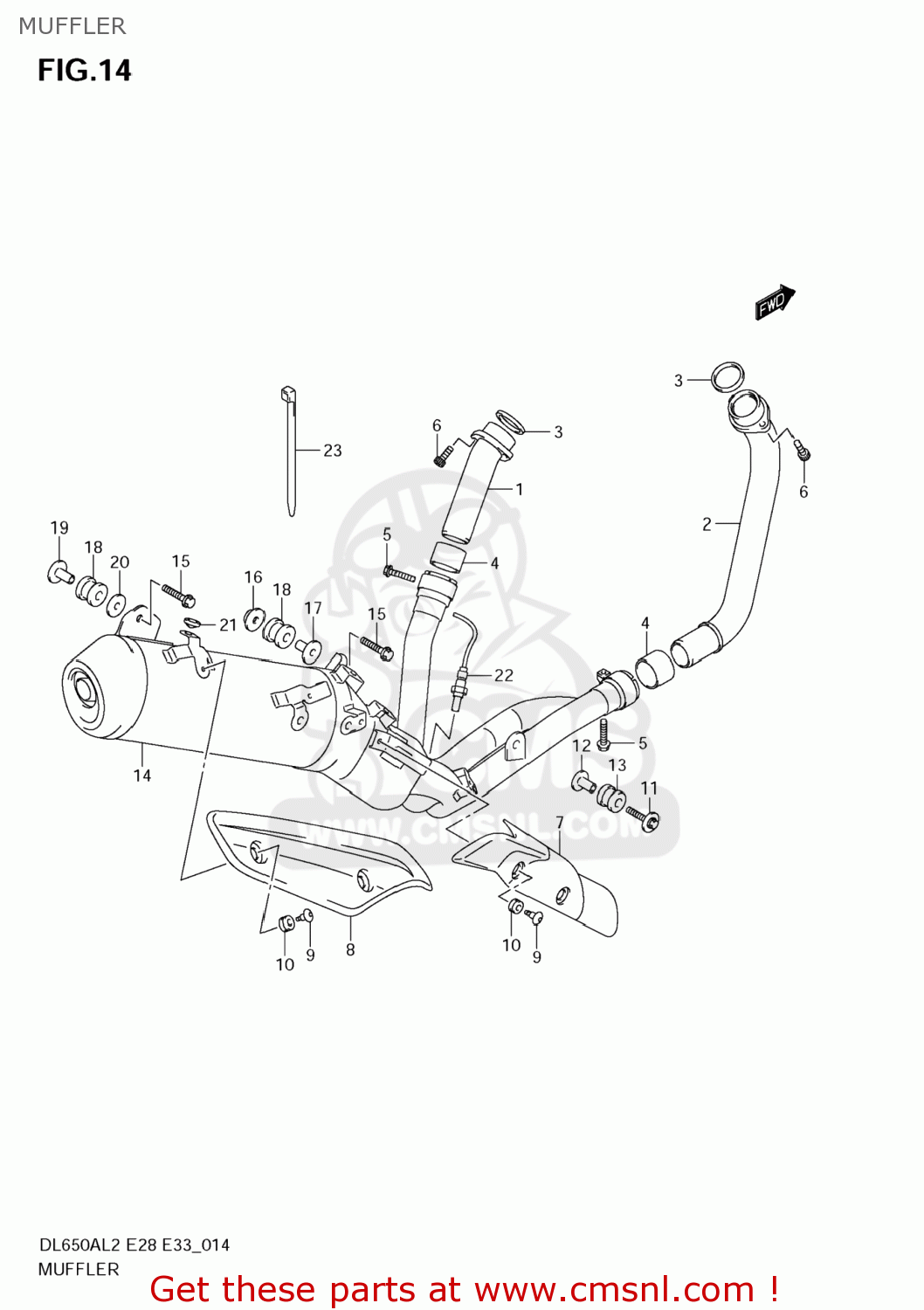

MUFFLER

ref

part #

description

quantity

1

1415027G10
ref: 1

PIPE,EXHAUST RR

€ 56.50

2

1416017G10
ref: 2

PIPE,EXHAUST FR

€ 101.50

3

1418122D01
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 9.00

4

1477132E10
ref: 4

CONNECTOR,EXHAUST

€ 12.50

5

0910308365
ref: 5

BOLT(8X35)

€ 3.50

6

0910608165
ref: 6

BOLT(8X25)

€ 5.00

7

1477111J00
ref: 7

COVER,MUFFLER FR

€ 36.50

8

1478111J00YUS
ref: 8

COVER,MUFFLER

€ 99.50

9

0913906126
ref: 9

SCREW(6X20)

€ 4.00

10

0932008070
ref: 10

CUSHION

€ 8.50

11

0911808152A05
ref: 11

BOLT(8X45)

€ 5.00

12

0918008152
ref: 12

SPACER(8.6X12X24.2)

€ 6.00

13

0932012048
ref: 13

CUSHION

€ 5.00

14

1430511J00
ref: 14

MUFFLER

€ 1,494.50

15

0910308358
ref: 15

BOLT(8X45)

€ 3.50

16

1441427G00
ref: 16

NUT,MUFFLER SUPPORT FR

€ 4.00

17

0918008156
ref: 17

SPACER(8.6X12X27.1)

€ 6.50

18

0932012049
ref: 18

CUSHION

€ 9.00

19

1441406G00
ref: 19

NUT,MUFFLER SUPPORT

€ 7.00

20

0916008146
ref: 20

WASHER(8.5X33X1.5)

€ 3.00

21

0932110018
ref: 21

CUSHION

€ 5.00

22

1821317G01
ref: 22

SENSOR,OXYGEN

€ 336.00

23

0940714407
ref: 23

CLAMP(L:145)

€ 4.00

all assemblies
