CAM CHAIN

DL650A VSTROM 2012 (L2) USA (E03)

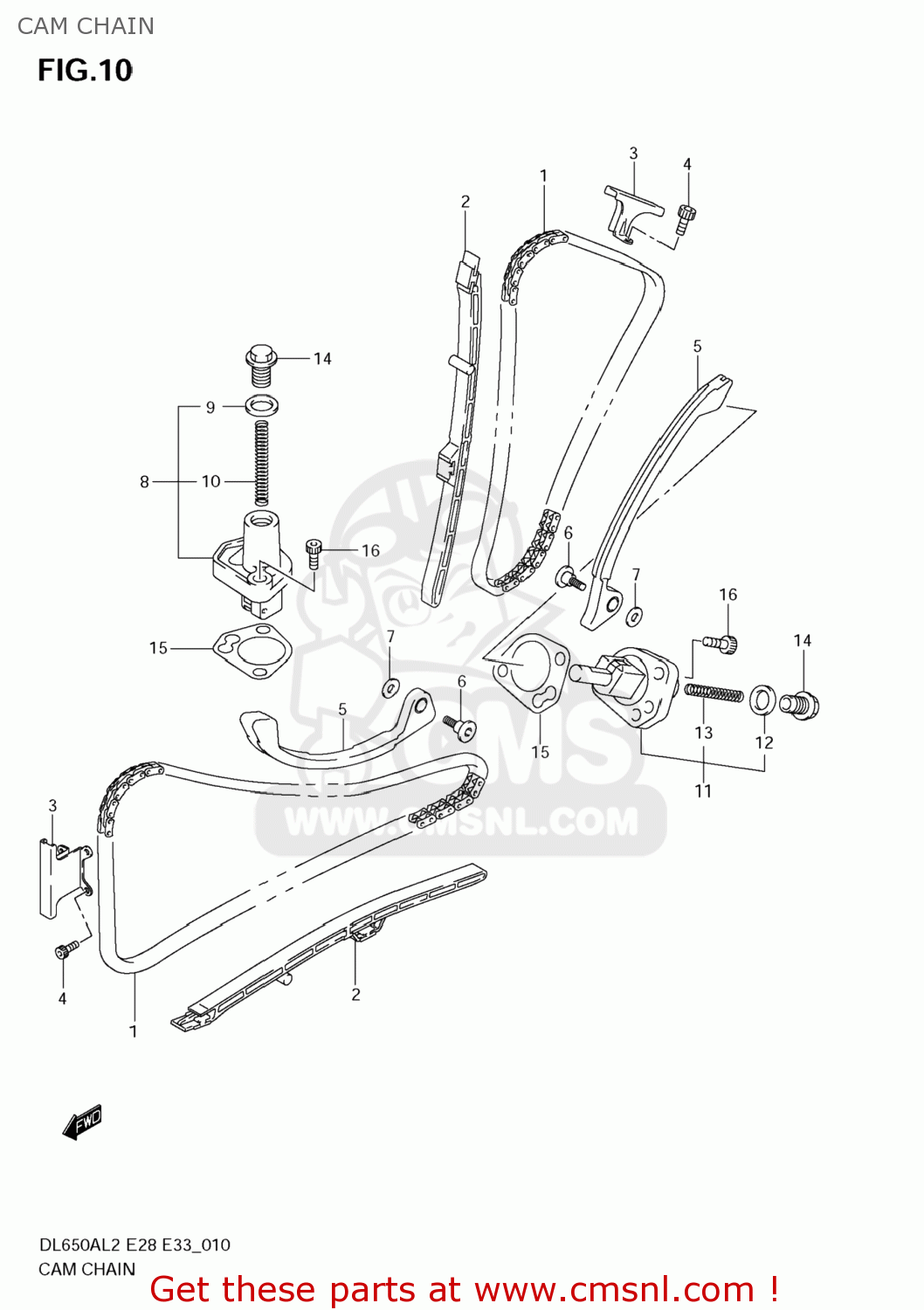

Cam chain diagram DL650A VSTROM 2012 (L2) USA (E03)

CAM CHAIN DL650A VSTROM 2012 (L2) USA (E03)

CAM CHAIN DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276019F01
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 121.00

2

1277144H00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 18.50

3

1278219F00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 25.50

4

071300612A
ref: 4

BOLT

€ 2.50

5

1281117G00
ref: 5

TENSIONER,CAM CHAIN

€ 41.00

6

1281235C00
ref: 6

BOLT,CAM CHAIN TENSIONER

€ 7.00

7

0821106181
ref: 7

WASHER

€ 2.00

8

1283027G00
ref: 8

ADJUSTER ASSY,TENSIONER FR

€ 51.00

9

1283724F10
ref: 9

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

10

1283139F00
ref: 10

SPRING

€ 3.50

11

1283027G10
ref: 11

ADJUSTER ASSY,TENSIONER RR

€ 75.50

12

1283724F10
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

13

1283139F00
ref: 13

SPRING

€ 3.50

14

1283317G00
ref: 14

PLUG,TENSIONER ADJUSTER

€ 3.50

15

1283727G00
ref: 15

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

16

071300625A
ref: 16

BOLT

€ 2.50
