DL650A VSTROM 2012 (L2) USA (E03)

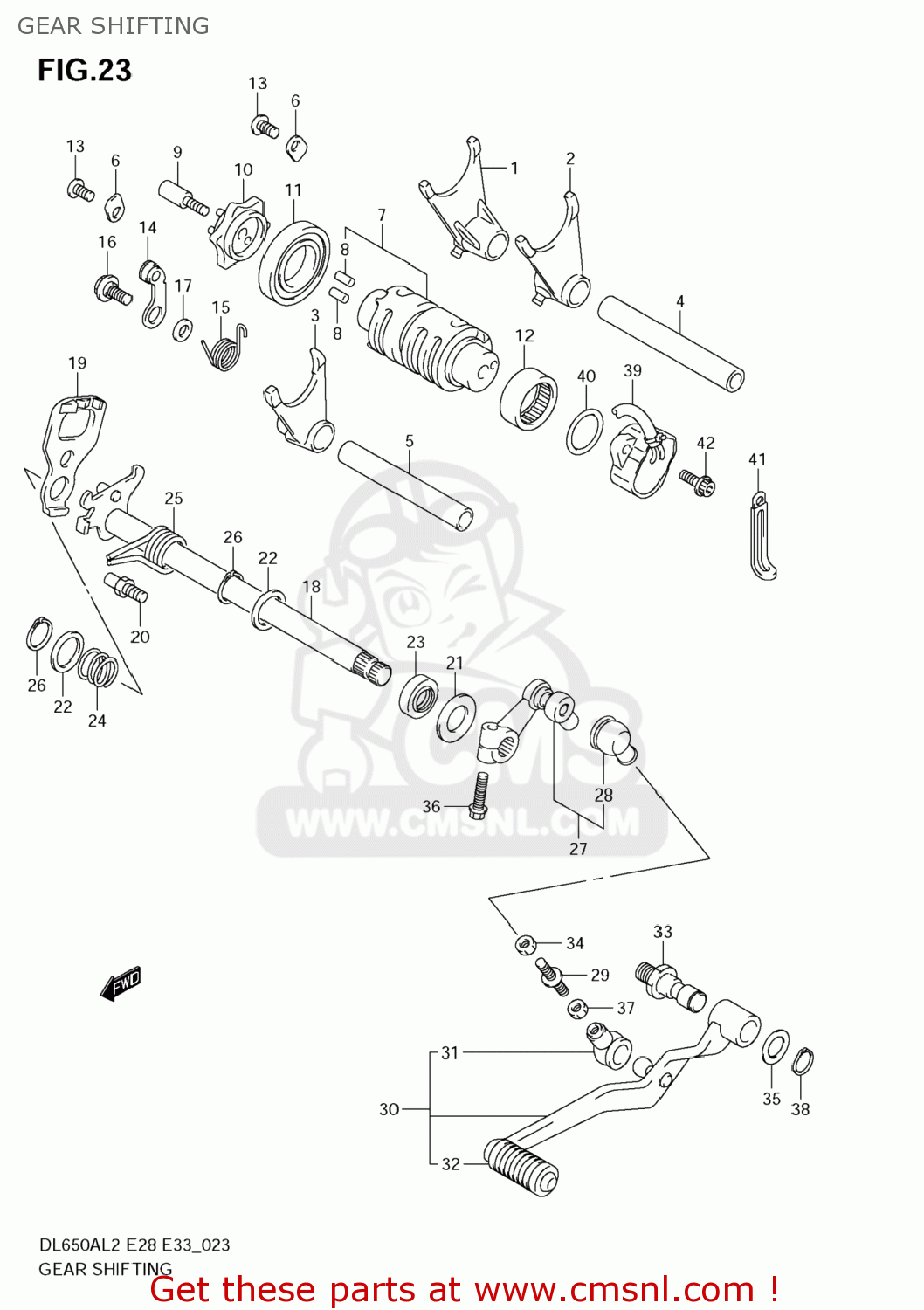

Gear shifting diagram DL650A VSTROM 2012 (L2) USA (E03)
GEAR SHIFTING DL650A VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521142E20
ref: 1
FORK,GEAR SHIFT NO.1
€ 60.00
2
2522142E20
ref: 2
FORK,GEAR SHIFT NO.2
€ 60.00
3
2523142E20
ref: 3
FORK,GEAR SHIFT NO.3
€ 60.00
4
2541126D01
ref: 4
SHAFT,GEAR SHIFT FORK
€ 16.00
5
2541144B00
ref: 5
SHAFT,GEAR SHIFT FORK NO.1
€ 19.50
6
2474121A00
ref: 6
RETAINER
€ 2.00
7
2531019F00
ref: 7
CAM,GEAR SHIFT
€ 75.00
8
0422104089
ref: 8
PIN
€ 1.50
9
2531242F01
ref: 9
BOLT,GEAR SHIFT CAM PLATE
€ 5.50
10
2538119F20
ref: 10
PLATE,GEAR SHIFT CAM
€ 30.00
11
0926225006
ref: 11
BEARING(25X47X8)
€ 24.00
12
0926325018
ref: 12
BEARING(25X32X12)
€ 17.50
13
021120612A
ref: 13
SCREW
€ 1.50
14
2535035F00
ref: 14
STOPPER,SHIFT CAM
€ 18.00
15
2535535F01
ref: 15
SPRING,SHIFT
€ 2.50
16
0911106041
ref: 16
BOLT(6X14.3)
€ 3.00
17
0821106141
ref: 17
WASHER
€ 2.50
18
2551019F10
ref: 18
SHAFT,GEAR SHIFT
€ 75.50
19
2551206G10
ref: 19
PLATE,GEAR SHIFT CAM DRIVE
€ 20.00
20
2567101011
ref: 20
STOPPER,GEAR SHIFT ARM
€ 3.00
21
0916014016
ref: 21
WASHER(14X29X0.8)
€ 1.50
22
0918114167
ref: 22
SHIM(14X22X1)
€ 3.50
23
0928314005
ref: 23
SEAL,OIL(14X22X7.3)
€ 6.50
24
0944017009
ref: 24
SPRING
€ 1.50
25
0944420001
ref: 25
SPRING
€ 5.00
26
083313114A
ref: 26
CIRCLIP
€ 2.00
27
2552027G00
ref: 27
ARM,GEAR SHIFT LINK
€ 39.00
28
2552647000
ref: 28
COVER,DUST
€ 3.50
29
2552527G00
ref: 29
ROD,GEAR SHIFT LINK
€ 8.00
30
2560011J00
ref: 30
LEVER ASSY,GEAR SHIFT
€ 46.00
31
2552647000
ref: 31
COVER,DUST
€ 3.50
32
2565220C00
ref: 32
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33
2561703F10
ref: 33
SHAFT,GEAR SHIFT LEVER
€ 10.50
34
0914006025
ref: 34
NUT
€ 2.00
35
0916012011
ref: 35
WASHER(12.5X20X1)
€ 1.50
36
015470620A
ref: 36
BOLT
€ 2.50
37
0831000067
ref: 37
NUT
€ 2.50
38
083313112A
ref: 38
CIRCLIP
€ 2.00
39
3773044H01
ref: 39
SENSOR ASSY,GEAR POSITION
€ 78.50
40
0928026005
ref: 40
O RING(D:2.4,ID:26.2)
€ 2.50
41
0940408419
ref: 41
CLAMP(L:80)
€ 2.00
42
071200516A
ref: 42
BOLT
€ 1.50
