BATTERY HOLDER

DL650A VSTROM 2012 (L2) USA (E03)

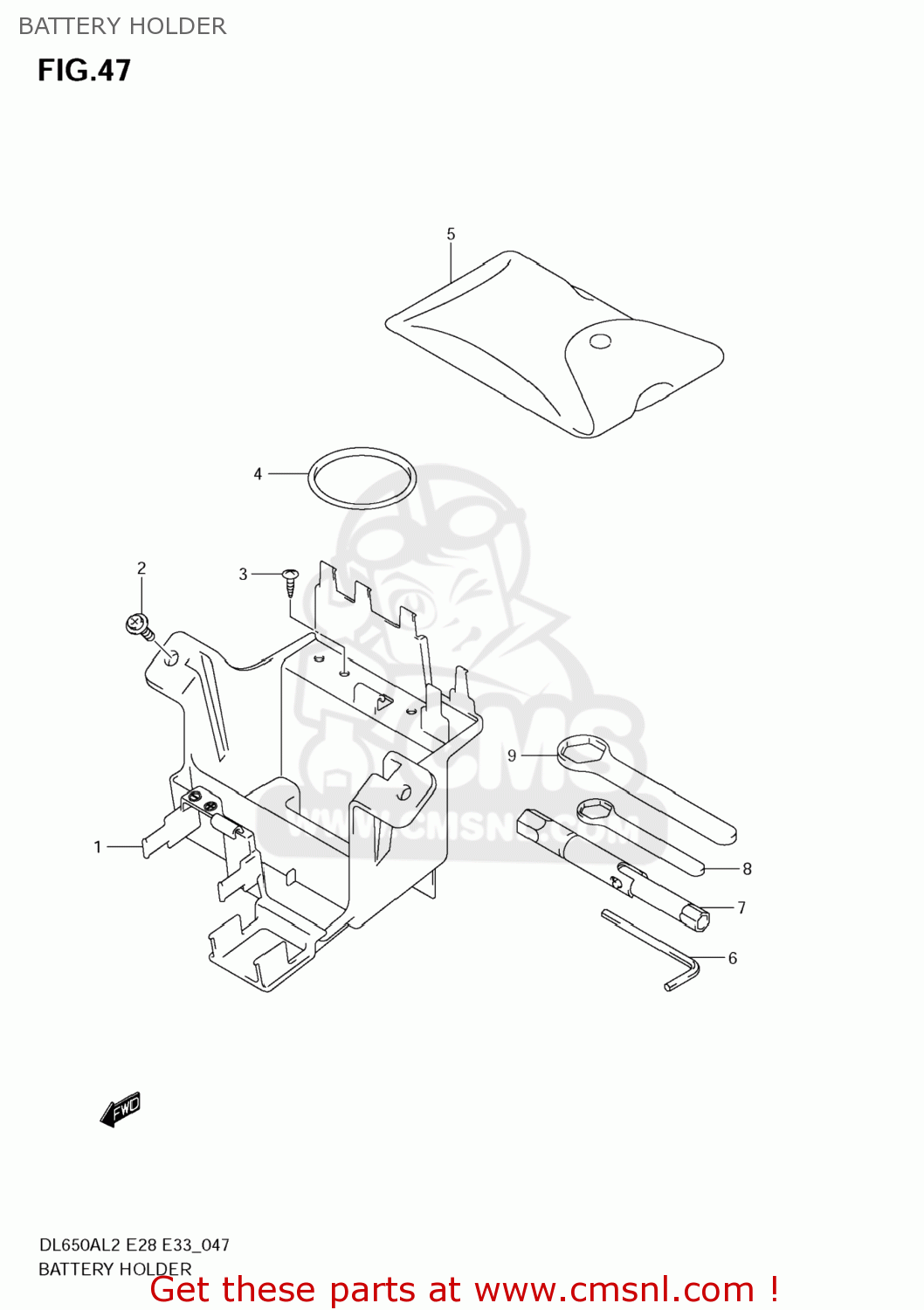

Battery holder diagram DL650A VSTROM 2012 (L2) USA (E03)

BATTERY HOLDER DL650A VSTROM 2012 (L2) USA (E03)

BATTERY HOLDER DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4743127GA0
ref: 1

HOLDER,BATTERY

€ 36.00

2

0911106107
ref: 2

BOLT(6X12)

€ 3.00

3

0913205053
ref: 3

SCREW(5X16)

€ 2.50

4

0928063003
ref: 4
09280-61002

O RING(D:3.5,ID:62.6)

€ 1.50

5

0980021055
ref: 5

TOOL ASSY

€ 6.00

6

0981600059
ref: 6

HEXAGON SPANNER,5

€ 5.50

7

0981600149
ref: 7

SPARK PLUG WRENCH

€ 16.50

8

0981700035
ref: 8

RING SPANNER(22)

€ 6.50

9

0981700039
ref: 9

RING,SPANNER(24)

€ 6.50
