STEERING STEM

DL650A VSTROM 2012 (L2) USA (E03)

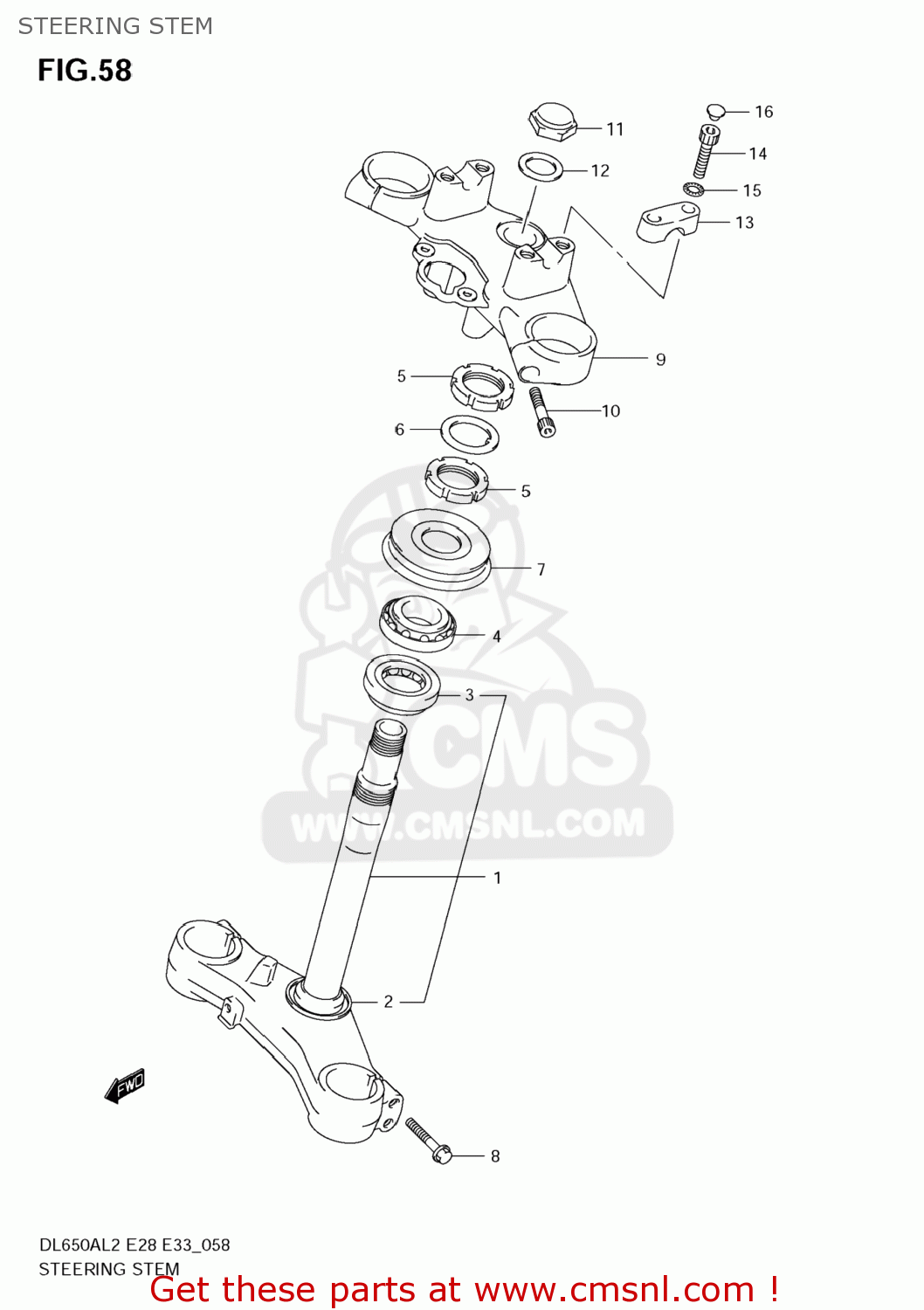

Steering stem diagram DL650A VSTROM 2012 (L2) USA (E03)

STEERING STEM DL650A VSTROM 2012 (L2) USA (E03)

STEERING STEM DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141027G30
ref: 1

STEM,STEERING

€ 394.50

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

4

0926730010
ref: 4

BEARING(30X55X17)

€ 46.50

5

5163133E00
ref: 5

NUT,STEERING STEM

€ 12.00

6

5164133E00
ref: 6

WASHER,STEERING STEM

€ 3.00

7

5164333E00
ref: 7

SEAL,STEERING UPR DUST

€ 12.50

8

5132827E30
ref: 8

BOLT,HOLDER AXLE(8X40)

€ 2.50

9

5131111J00
ref: 9

BRACKET,UPR

€ 279.00

10

5116638B40
ref: 10

BOLT,OUTER,L(07130-08407)

€ 4.50

11

5135327G00
ref: 11

NUT

€ 22.00

12

5135406G00
ref: 12

WASHER

€ 7.50

13

5621106G40
ref: 13

HOLDER,HANDLE UPR

€ 28.50

14

5132110F00
ref: 14
07130-08307

BOLT,HANDLE HOLDER

€ 4.50

15

0916408015
ref: 15

WASHER

€ 3.00

16

0925006011
ref: 16

CAP(OD:11)

€ 2.50
