HEADLAMP
DL650A VSTROM 2012 (L2) USA (E03)

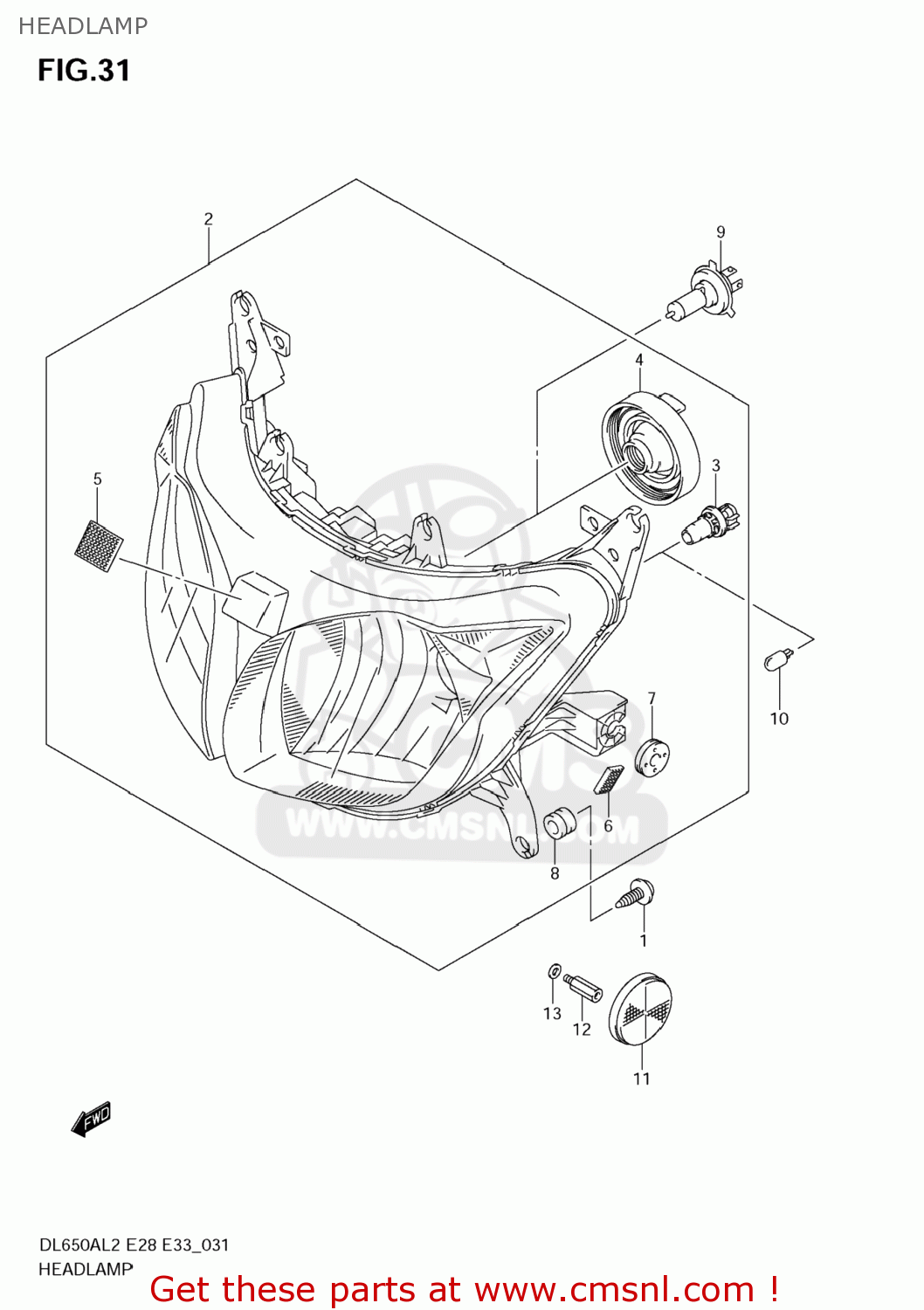

Headlamp diagram DL650A VSTROM 2012 (L2) USA (E03)
HEADLAMP DL650A VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0913605062
ref: 1
SCREW(5X15)
€ 2.50
2
3510011J00999
ref: 2
HEADLAMP ASSY
€ 484.00
3
3511868K00
ref: 3
SOCKET,POSITION LAMP
€ 9.00
4
3517958J00
ref: 4
COVER,SOCKET
€ 8.50
5
4457202F01
ref: 5
FASTENER
€ 8.50
6
4457237H00
ref: 6
FASTENER,COWLING
€ 5.50
7
0932008028
ref: 7
CUSHION
€ 2.50
8
0932009039
ref: 8
CUSHION
€ 6.00
9
0947112182
ref: 9
BULB(12V60/55W,H4)
€ 8.00
10
0947112216
ref: 10
BULB(12V5W)
€ 5.00
11
3595014A11
ref: 11
REFLEX REFLECTOR ASSY,FR SIDE
€ 11.00
12
0911905023
ref: 12
BOLT(5X10)
€ 7.50
13
083220105A
ref: 13
WASHER
€ 2.50
