FRONT FENDER

DL650A VSTROM 2012 (L2) USA (E03)

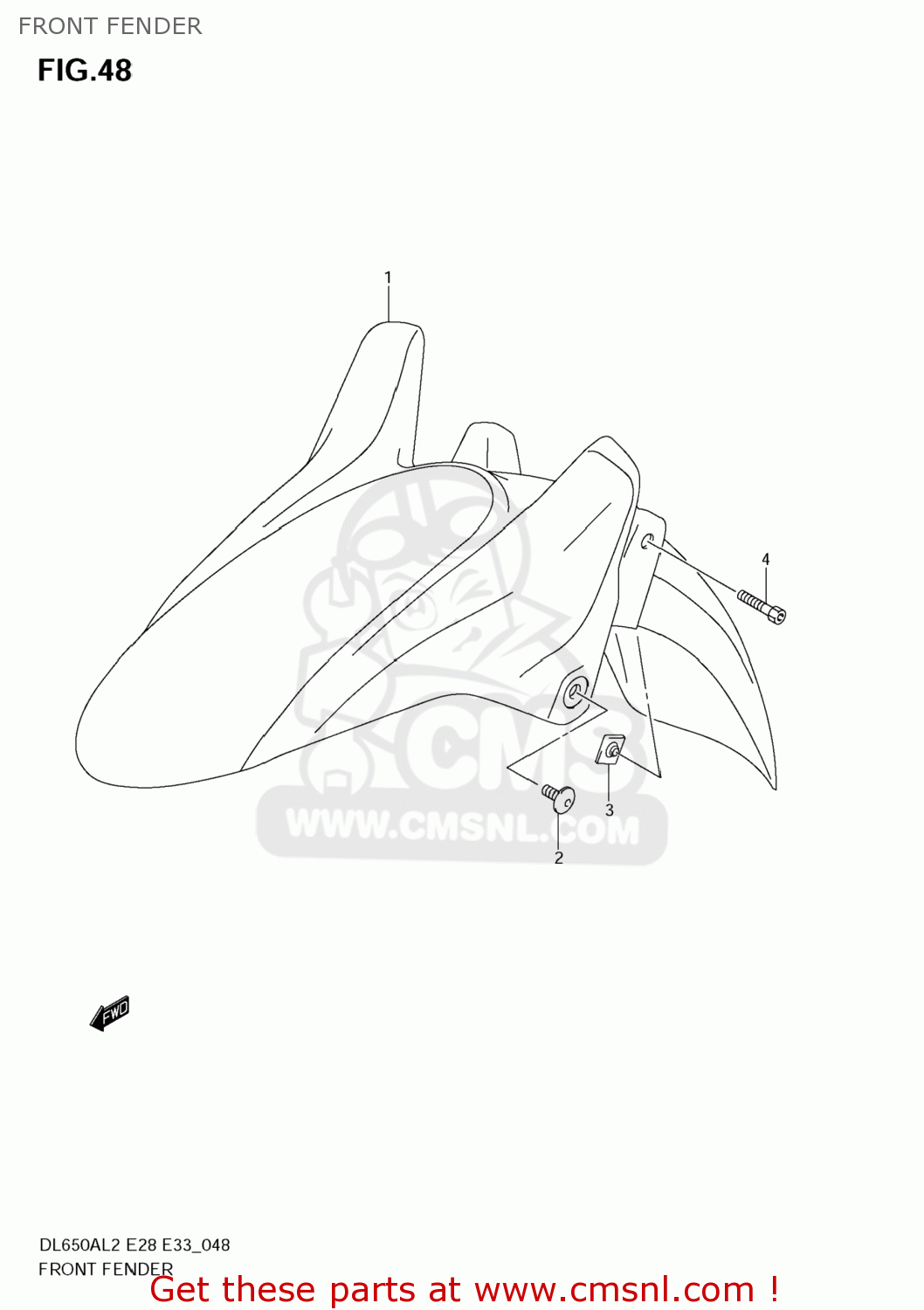

Front fender diagram DL650A VSTROM 2012 (L2) USA (E03)

FRONT FENDER DL650A VSTROM 2012 (L2) USA (E03)
FRONT FENDER DL650A VSTROM 2012 (L2) USA (E03)
FRONT FENDER DL650A VSTROM 2012 (L2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5311111J00291
ref: 1
FENDER,FRONT
€ 73.00
2
0913906158
ref: 2
SCREW(6X16)
0913906158
€ 4.00
3
5312206G00
ref: 3
NUT,FR FENDER
5312206G00
€ 4.00
4
0910606122
ref: 4
BOLT(6X30)
0910606122
€ 2.50
