RADIATOR

DL650A VSTROM 2012 (L2) USA (E03)

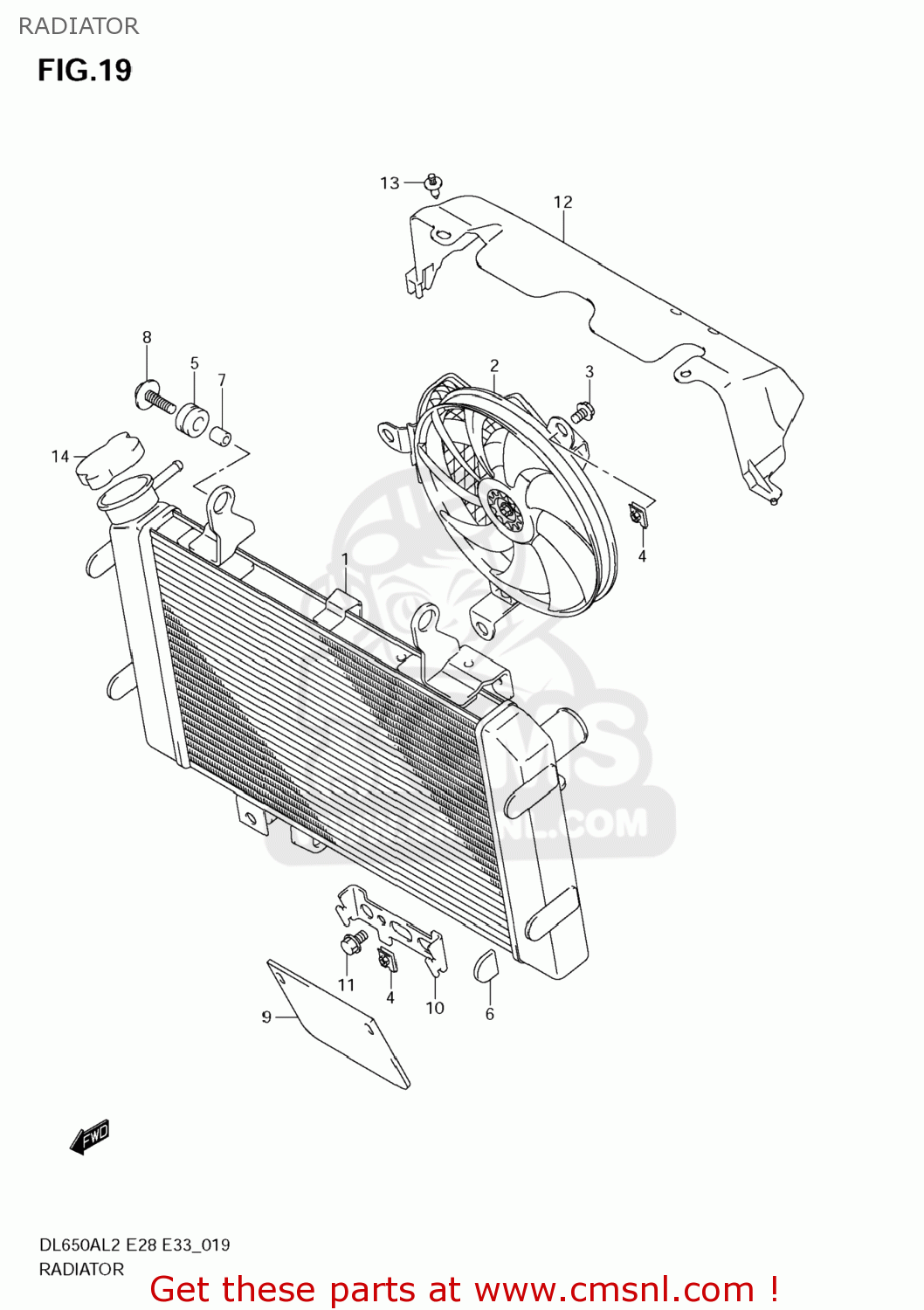

Radiator diagram DL650A VSTROM 2012 (L2) USA (E03)

RADIATOR DL650A VSTROM 2012 (L2) USA (E03)

RADIATOR DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771011J00
ref: 1

RADIATOR ASSY,WATER

€ 616.00

2

1780011J00
ref: 2

FAN ASSY,RADIATOR

€ 522.00

3

1771108J00
ref: 3

BOLT,FAN ASSY

€ 3.50

4

1771240F00
ref: 4

NUT,FAN ASSY

€ 3.50

5

0932010501
ref: 5

CUSHION

€ 5.50

6

0932918001
ref: 6

CUSHION

€ 2.50

7

0918006310
ref: 7

SPACER(6.5X10X10)

€ 2.00

8

0911806097
ref: 8

BOLT(6X25)

€ 2.50

9

1778117G00
ref: 9

RUBBER,RADIATOR UNDER

€ 6.50

10

1774117G00
ref: 10

BRACKET,RADIATOR UNDER RUBBER

€ 3.50

11

015470612A
ref: 11

BOLT

€ 2.00

12

1777111J00
ref: 12

SHIELD,RADIATOR HEAT

€ 18.50

13

09409063145PK
ref: 13

CLIP(BLACK)

€ 3.50

14

1773008J00
ref: 14

CAP,RADIATOR

€ 40.00
