SPEEDOMETER (DL650AL2 E33)

DL650A VSTROM 2012 (L2) USA (E03)

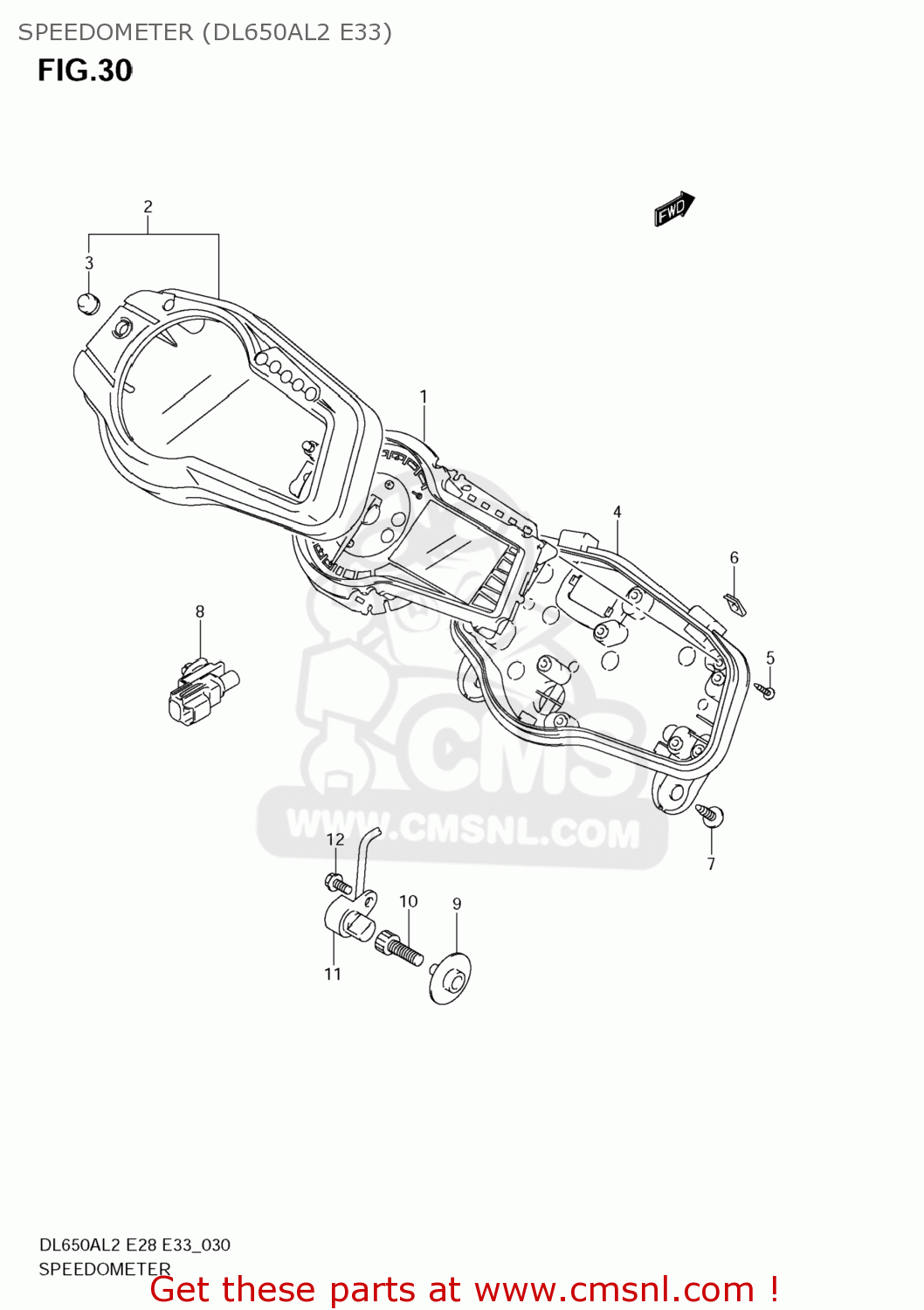

Speedometer (dl650al2 e33) diagram DL650A VSTROM 2012 (L2) USA (E03)

SPEEDOMETER (DL650AL2 E33) DL650A VSTROM 2012 (L2) USA (E03)

SPEEDOMETER (DL650AL2 E33) DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3412011J11
ref: 1

SPEEDOMETER

€ 485.00

2

3415011J00
ref: 2

CASE ASSY,UPR

€ 152.50

3

3412438G00
ref: 3

RUBBER,SWITCH

€ 6.50

4

3411111J00
ref: 4

CASE ASSY,LWR

€ 73.00

5

0913203008
ref: 5

SCREW(3X16)

€ 1.50

6

0914805052
ref: 6

NUT

€ 3.50

7

035410516A
ref: 7

SCREW

€ 1.50

8

9564358J00
ref: 8

SENSOR,AIR TEMP

€ 32.50

9

3498138G01
ref: 9

ROTOR,SPEED

€ 15.00

10

071300825B
ref: 10

BOLT

€ 3.50

11

3499035F00
ref: 11

SENSOR,SPEED

€ 112.50

12

071200512B
ref: 12

BOLT

€ 2.00
