Buy Suzuki DL Parts Online


HANDLE SWITCH

DL650A VSTROM 2012 (L2) USA (E03)

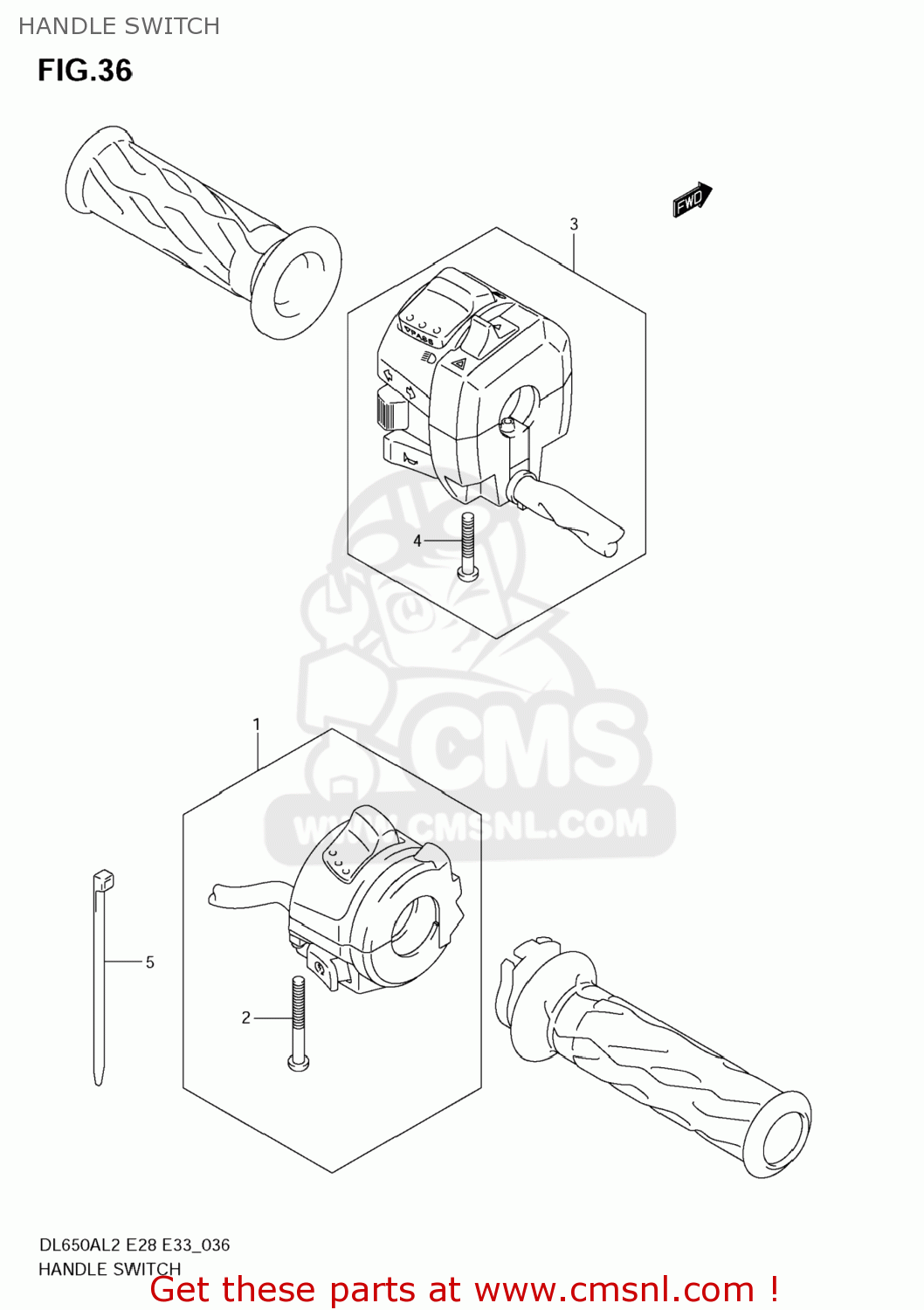

Handle switch diagram DL650A VSTROM 2012 (L2) USA (E03)

HANDLE SWITCH DL650A VSTROM 2012 (L2) USA (E03)
HANDLE SWITCH DL650A VSTROM 2012 (L2) USA (E03)
HANDLE SWITCH DL650A VSTROM 2012 (L2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3720011J00
ref: 1
SWITCH ASSY,HANDLE,R
3720011J00
€ 117.50
2
021120530B
ref: 2
SCREW
021120530B
€ 1.50
3
3740011J00
ref: 3
SWITCH ASSY,HANDLE,L
3740011J00
€ 300.00
4
021120535B
ref: 4
SCREW
021120535B
€ 1.50
5
0940714407
ref: 5
CLAMP(L:145)
0940714407
€ 4.00
