MAGNETO

DL650A VSTROM 2012 (L2) USA (E03)

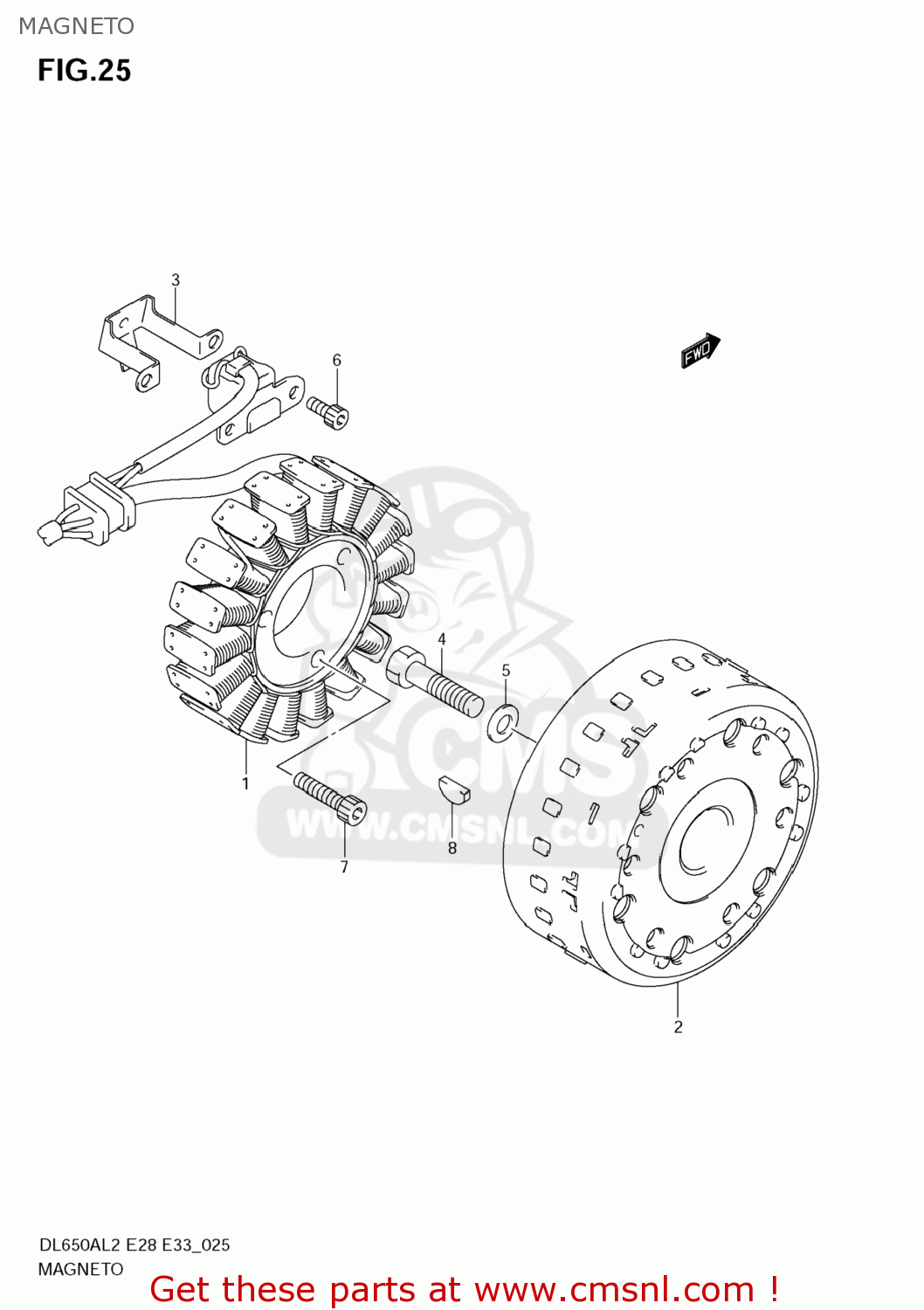

Magneto diagram DL650A VSTROM 2012 (L2) USA (E03)

MAGNETO DL650A VSTROM 2012 (L2) USA (E03)

MAGNETO DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210117G11
ref: 1

STARTER ASSY

€ 432.50

2

3210217G10
ref: 2

ROTOR ASSY

€ 433.00

3

3237119F10
ref: 3

CLAMP,MAGNETO LEAD

€ 4.00

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

0916012036
ref: 5

WASHER(12X30X3)

€ 3.00

6

071300512A
ref: 6

BOLT

€ 2.50

7

071300635A
ref: 7

BOLT

€ 1.50

8

0942004008
ref: 8

KEY

€ 3.50
