EVAP SYSTEM (DL650AL2 E33)

DL650A VSTROM 2012 (L2) USA (E03)

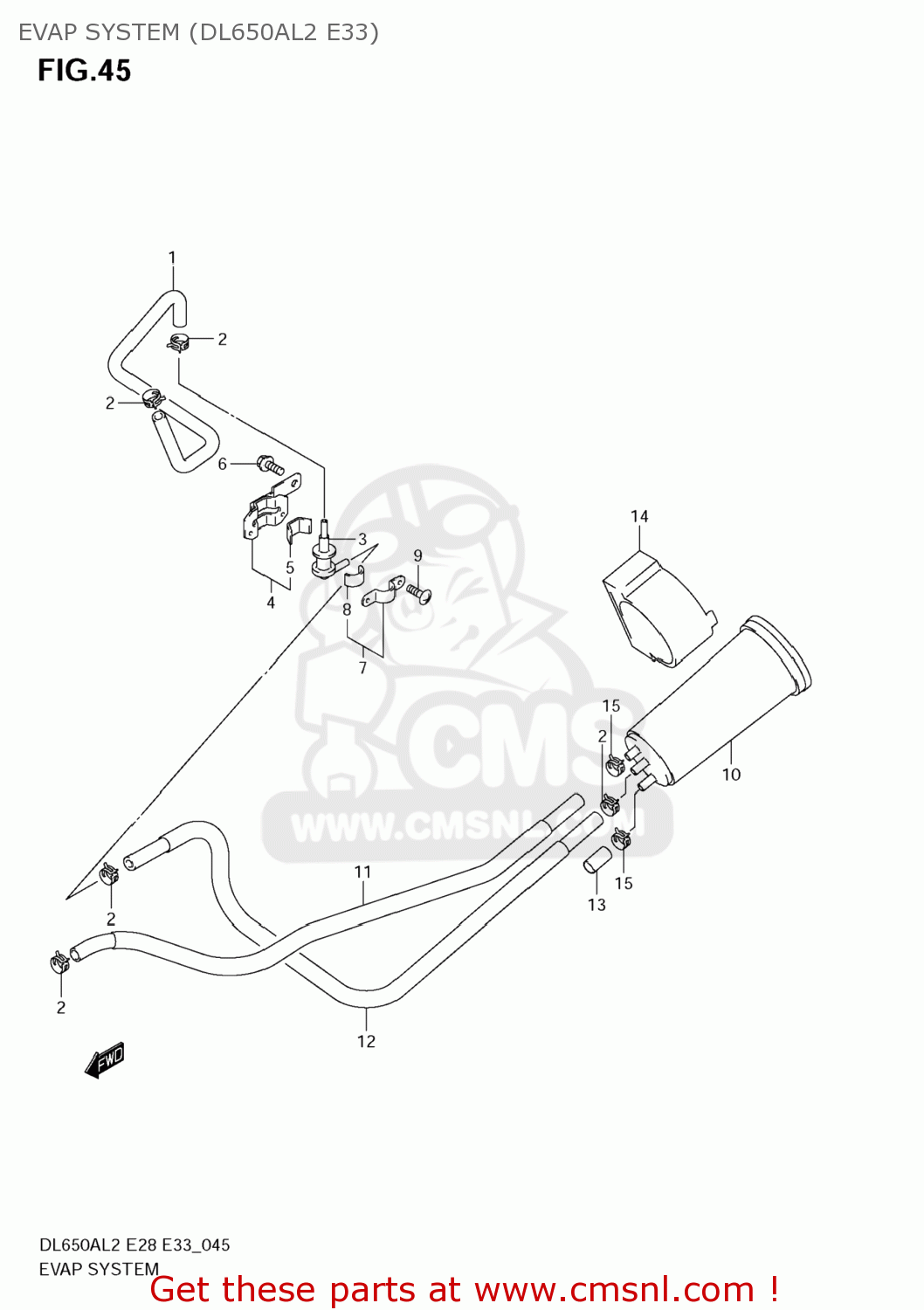

Evap system (dl650al2 e33) diagram DL650A VSTROM 2012 (L2) USA (E03)

EVAP SYSTEM (DL650AL2 E33) DL650A VSTROM 2012 (L2) USA (E03)

EVAP SYSTEM (DL650AL2 E33) DL650A VSTROM 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4443411J00
ref: 1

HOSE,TANK & BREATHER VALVE

€ 25.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489006G00
ref: 4

PLATE,BREATHER VALVE

€ 0.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

015500612B
ref: 6

BOLT

€ 2.50

7

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

021420408B
ref: 9

SCREW

€ 1.50

10

1721015H00
ref: 10

CANISTER ASSY,CHARCOAL

€ 201.50

11

1856111J00
ref: 11

HOSE,CSTR PURGE

€ 44.50

12

1856311J00
ref: 12

HOSE,CSTR SURGE

€ 37.00

13

0925107003
ref: 13

CAP,OD:11.5

€ 2.00

14

4488306G00
ref: 14

CUSHION,CANISTER

€ 8.00

15

0940112404
ref: 15

CLIP

€ 2.50
