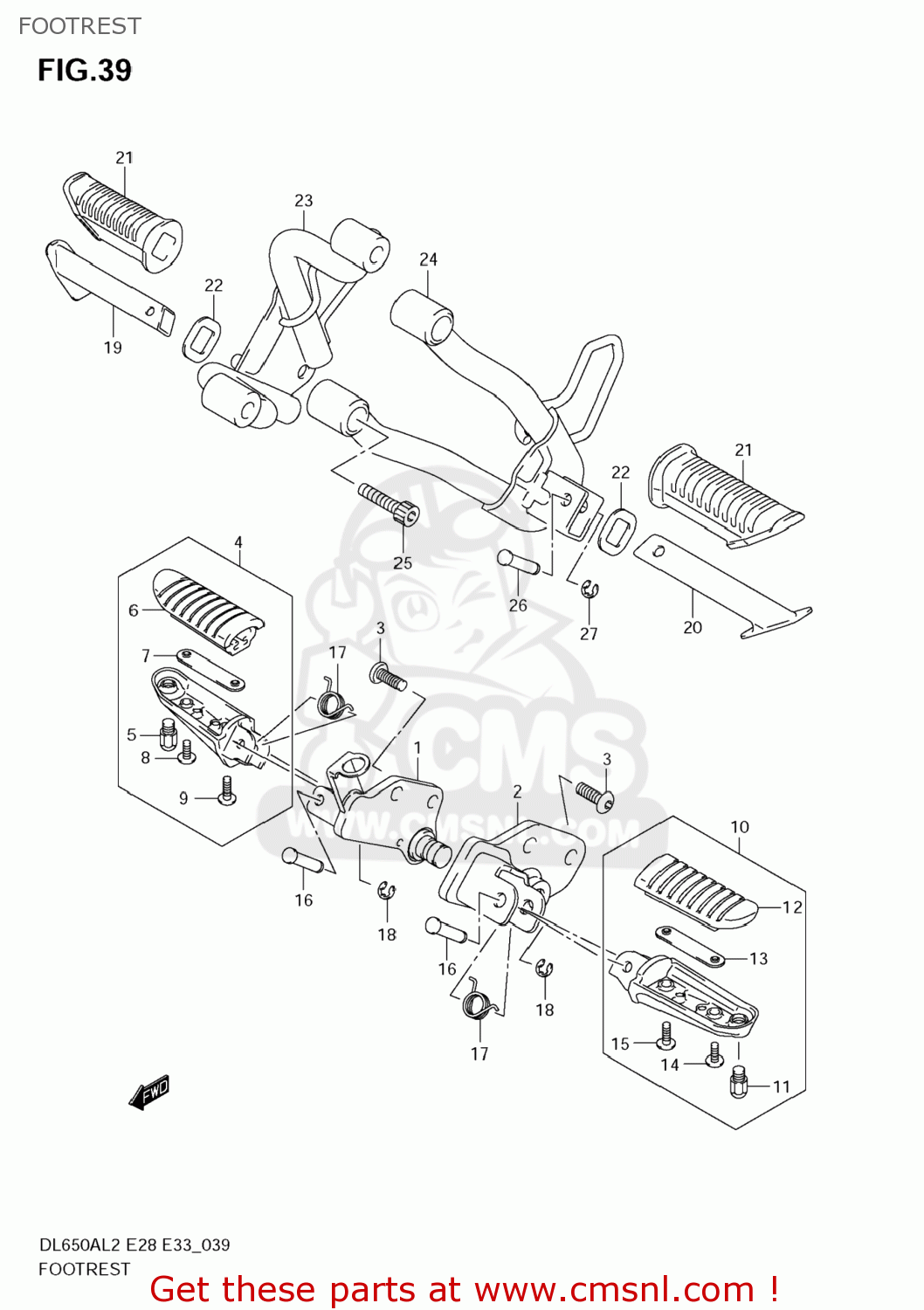

FOOTREST

ref

part #

description

quantity

1

4351027G01YAP
ref: 1

BRACKET,FR FOO

€ 57.00

2

4352027G01YAP
ref: 2

BRACKET,FR FOO

€ 28.50

3

0910608150
ref: 3

BOLT(8X23)

€ 3.50

4

4350106G01
ref: 4

FOOTREST ASSY,PILLION,R

€ 49.00

5

4357607D01
ref: 5

BOLT,BANK SENSOR

€ 8.00

6

4355106G00
ref: 6

RUBBER,FOOTREST

€ 7.50

7

4355206G00
ref: 7

PLATE,FR FOOTREST RUBBER

€ 6.50

8

021420516B
ref: 8

SCREW

€ 2.50

9

021420520B
ref: 9

SCREW

€ 2.00

10

4350206G01
ref: 10

FOOTREST ASSY,PILLION,L

€ 79.50

11

4357607D01
ref: 11

BOLT,BANK SENSOR

€ 8.00

12

4355106G00
ref: 12

RUBBER,FOOTREST

€ 7.50

13

4355206G00
ref: 13

PLATE,FR FOOTREST RUBBER

€ 6.50

14

021420516B
ref: 14

SCREW

€ 2.50

15

021420520B
ref: 15

SCREW

€ 2.00

16

0920808010
ref: 16

PIN(8X33.2)

€ 3.00

17

0944818022
ref: 17

SPRING

€ 3.50

18

083321106A
ref: 18

E RING

€ 2.00

19

4361034A00
ref: 19

BAR,PILLION FOOTREST,R

€ 36.00

20

4371034A00
ref: 20

BAR,PILLION FOOTREST,L

€ 31.00

21

4361233G01
ref: 21

RUBBER,PILLION FOOTREST

€ 5.50

22

4363134A01
ref: 22

WASHER,FOOTREST RUBBER

€ 6.50

23

4381027G10YAP
ref: 23

BRACKET,PILLION FOOTREST,R

€ 90.50

24

4382027G01YAP
ref: 24

BRACKET,PILLION FOOTREST,L(BLA

€ 90.50

25

0910608074
ref: 25

BOLT(8X40)

€ 3.50

26

0920806008
ref: 26

PIN(6X29.5)

€ 2.50

27

083321104A
ref: 27

E RING

€ 2.00

all assemblies
