FUEL PUMP
DL650A VSTROM 2012 (L2) USA (E03)

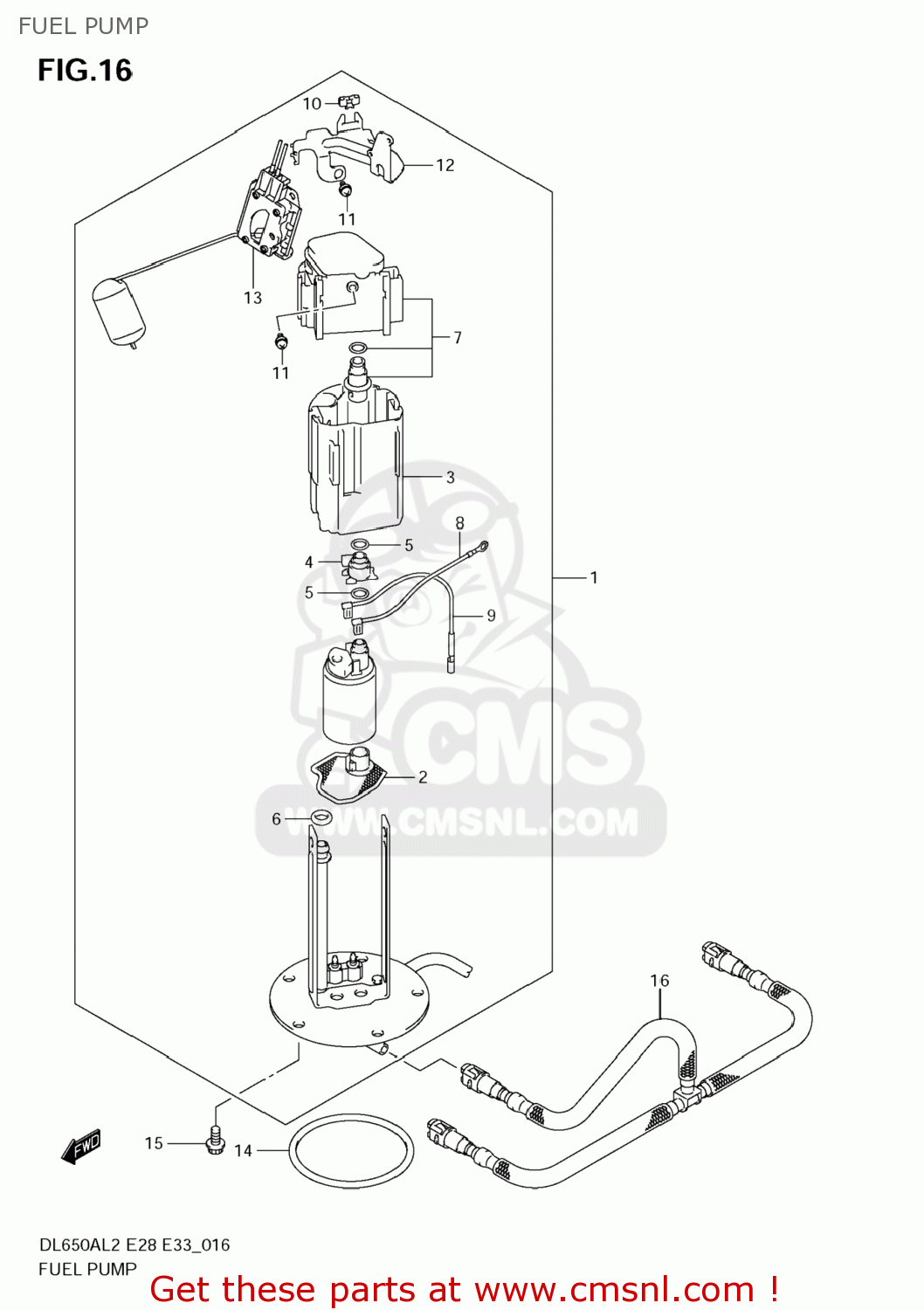

Fuel pump diagram DL650A VSTROM 2012 (L2) USA (E03)
FUEL PUMP DL650A VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510011J00
ref: 1
PUMP ASSY,FUEL
€ 745.00
2
1542005H00
ref: 2
STRAINER
€ 20.50
3
1511127G00
ref: 3
CUP
€ 25.00
4
1511205H00
ref: 4
JOINT
€ 17.00
5
1511305H00
ref: 5
O RING
€ 17.00
6
1511335F00
ref: 6
O RING
€ 7.50
7
1561014J00
ref: 7
REGULATOR,FUEL
€ 123.00
8
1511414J00
ref: 8
WIRE,EARTH
€ 16.00
9
1511514J00
ref: 9
WIRE,LEAD
€ 16.50
10
1511908J00
ref: 10
SADDLE,EDGE
€ 8.00
11
1511610F00
ref: 11
SCREW
€ 3.50
12
1518111J00
ref: 12
BRACKET,FUEL GAUGE
€ 22.50
13
3481011J00
ref: 13
GAUGE ASSY,FUEL LEVEL SENDER
€ 182.50
14
1520135F00
ref: 14
O RING,FUEL PUMP
€ 26.00
15
071200612A
ref: 15
BOLT
€ 3.50
16
1581011J10
ref: 16
HOSE,FUEL
€ 125.50
