FRONT MASTER CYLINDER
DL650A VSTROM 2012 (L2) USA (E03)

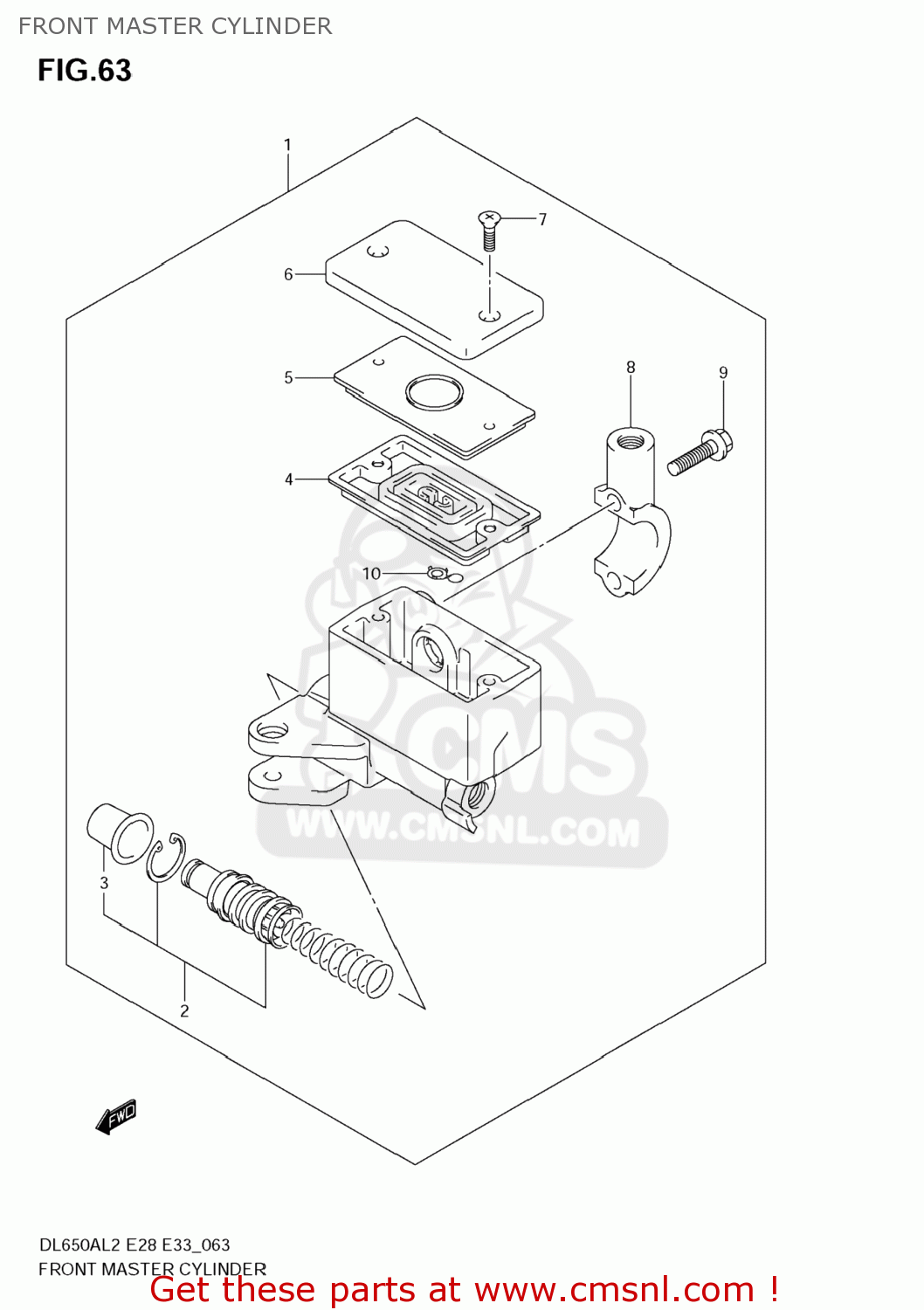

Front master cylinder diagram DL650A VSTROM 2012 (L2) USA (E03)
FRONT MASTER CYLINDER DL650A VSTROM 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960010G30
ref: 1
CYLINDER ASSY,FR MASTER
€ 190.00
2
5960045870
ref: 2
PISTON & CUP SET
€ 34.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966749460
ref: 4
5966749460
5
5966841C00
ref: 5
PLATE,DIAPHRAGM
€ 8.00
6
5966910G00
ref: 6
CAP
€ 19.00
7
6968949300
ref: 7
SCREW
€ 1.50
8
5967132F00
ref: 8
HOLDER
€ 17.00
9
5967502FA0
ref: 9
BOLT(6X22)
€ 3.00
10
5966432F00
ref: 10
PROTECTOR
€ 7.50
